Daktronics HS-200 - Page 9

System Setup & Operations
5
The start system components are shown in Figure 6 – Figure 9. For specic part numbers
and options available, refer to DWG-185695 in Appendix A.
Notes:
• Install the speakers tilting down to easily drain and prevent water from collecting inside.
• Always place cables and equipment in areas of minimal trafc. Cover wires and cables with
a mat to prevent accidents.
When plugging in dual banana connectors (Figure 10), the
GND (ground) tab on the plug must line up with the black
female jack for the timing system to work� Remember this
when connecting all dual banana plugs.

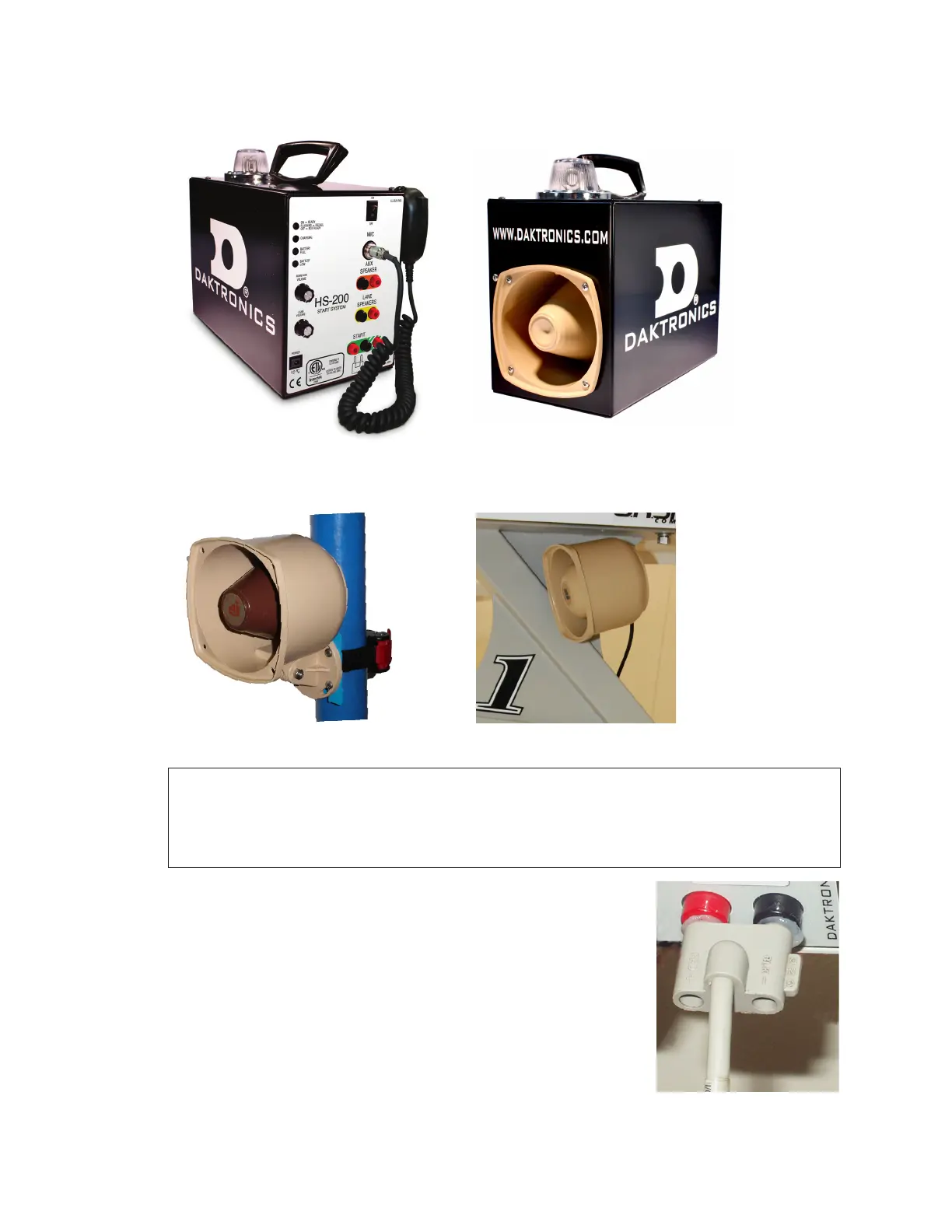

Figure 6: HS-200 with Mic
Figure 7: Horn Start with Internal Speaker
Figure 8: Backstroke Flagpole Speaker
Figure 9: Lane Speaker
Figure 10: Insert GND Side
to Black Female Jack
