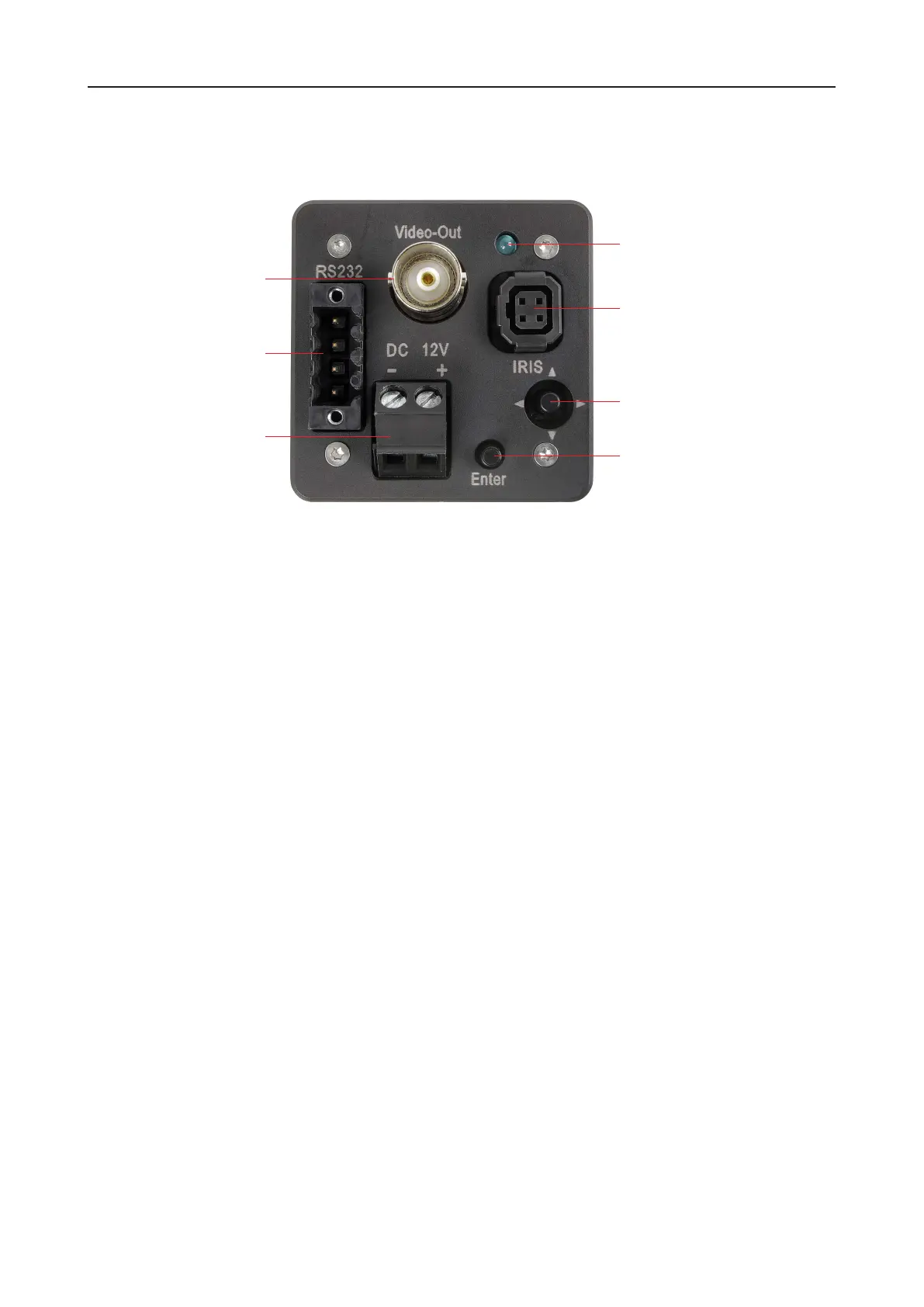

5.2 Connection assignment
E Power input terminal:
z DF3000A(-DN) / DF3000A(-DN) CasinoCam
®
12V DC / 24V AC (internal inverse-polarity protection)
z DF3000AS(-DN) / DF3000AS(-DN) CasinoCam
®
12V DC (internal inverse-polarity protection)
F RS232 interface (for service purposes only)
G Video output (CVBS, BNC)
H Power LED
I DC auto iris interface for iris control
J Selector, with integrated Enter button (depending on model)
K Separate Enter button (depending on model)
G
F
E
H
I
J
K
Fig. 5-2
