Nano Series GigE Vision Camera Operational Reference • 141
• TriggerOverlap=Off and ExposureMode=TriggerWidth

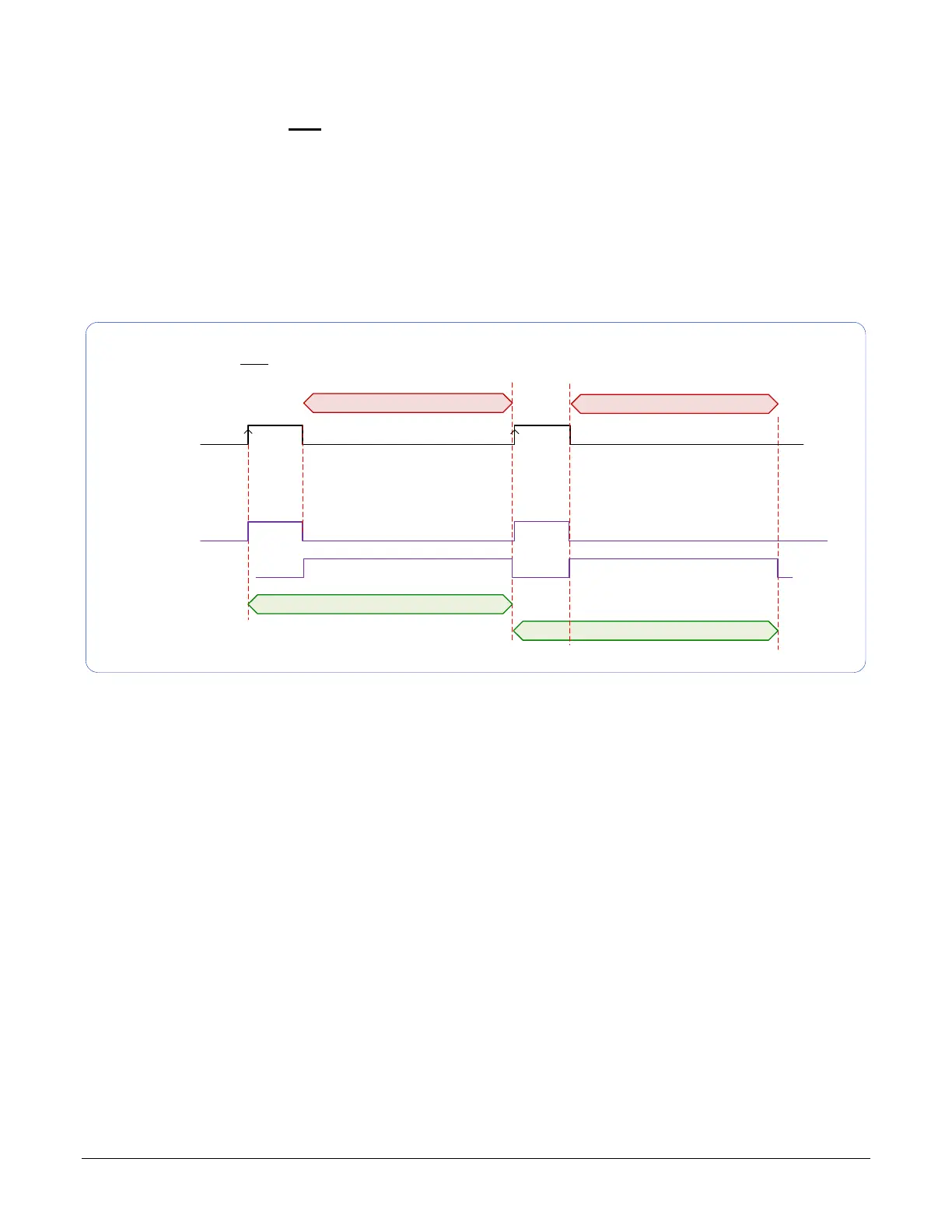

Diagram Conditions:
• TriggerMode=On
• ExposureMode=TriggerWidth
• TriggerActivation=RisingEdge
• TriggerDelay=0
• TriggerSelector=FrameStart
• ExposureAlignment=Synchronous
Trigger Input
Exposure 1
Readout 1
Frame 1 Active period
Exposure 2
Readout 2
Frame 2 Active period
Frame Exposure
Frame Readout
TriggerOverlap= Off and ExposureMode=TriggerWidth
Exclusion Region
Exclusion Region
