d&b audiotechnik SL Series Rigging Manual

SL-Series rigging components
SUB cabinets
Þ

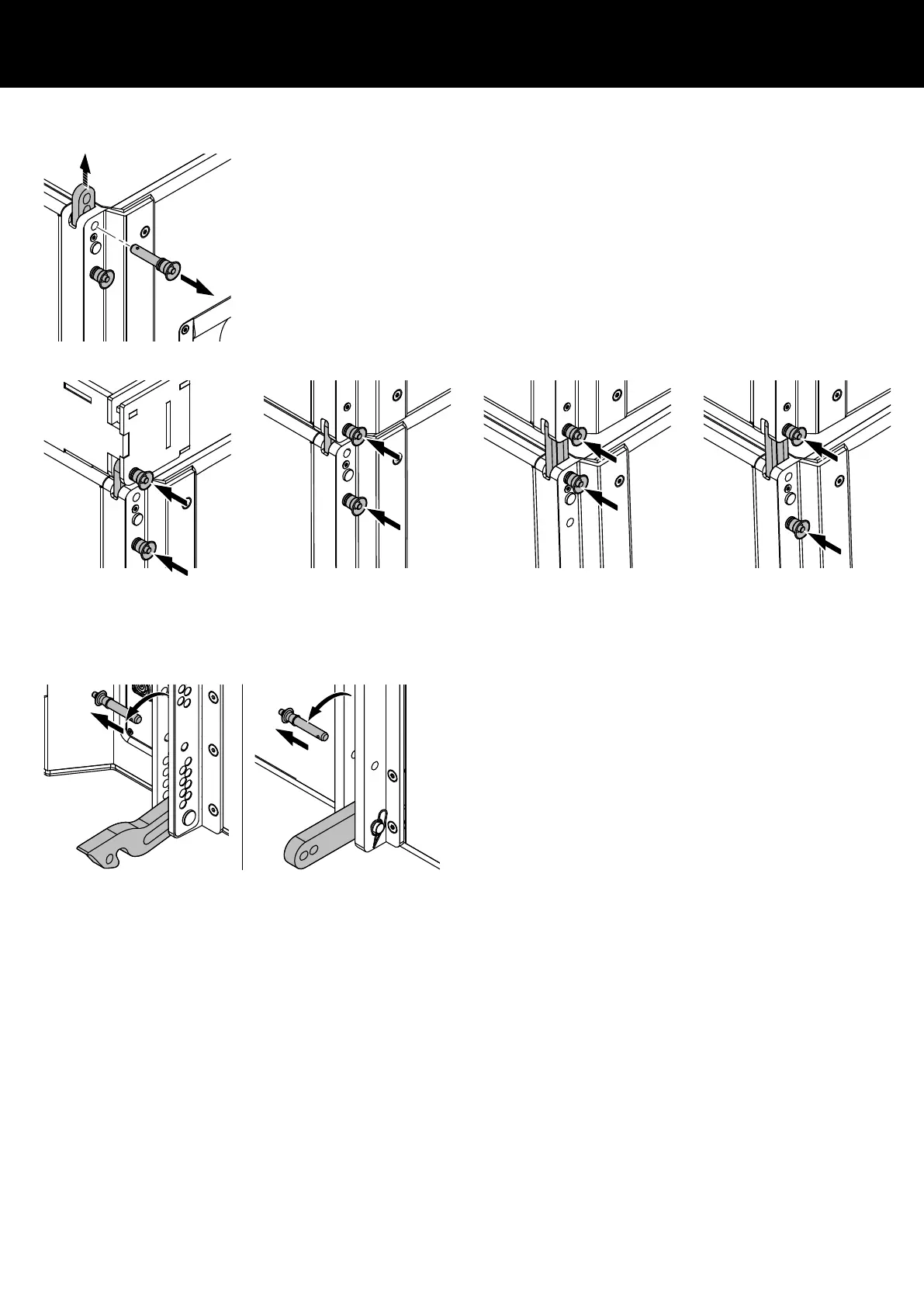

Release the upper Locking pin.
↳
The Front link extends automatically.
The Front link mechanism of the SUB cabinets provides four
different settings:
1. SUB to Frame (Þ Fig. 1).
2. SUB to SUB with 0° splay between the cabinets (Þ Fig. 2).
3. SUB to SUB with 2° splay (free) between the cabinets
(Þ Fig. 3).
4. SUB to SUB with 2° splay (blocked) between the cabinets (Þ
Fig. 4).
This setting is used to prevent the cabinets from folding up.
Fig. 1: SUB to Frame Fig. 2: SUB to SUB 0° splay Fig. 3: SUB to SUB 2° splay,
free
Fig. 4: SUB to SUB 2° splay,
blocked
3.15.2 Splay/Rear link mechanism
Release the respective Locking pin(s) and fold out the Splay/Rear
link.
TOP | SUB
d&b SL-Series Rigging manual 1.10 en32
