d&b audiotechnik SL Series Rigging Manual

SL-Series rigging components
3.4.2 KSL Compression frame - Rated break point
NOTICE!
To prevent the rigging components from any damage, the Splay
link slot of the KSL Compression frame features a rated break
point.
If the Splay link is subjected to excessive compression force, the
Splay link slot will break in a defined manner and direction.
In this case, the KSL Compression frame can no longer be used
and must be withdrawn from any further use immediately.
Please also refer to Þ Chapter 14 "Care and maintenance" Þ "
SL-Series flying frames and compression frames" on page 77.

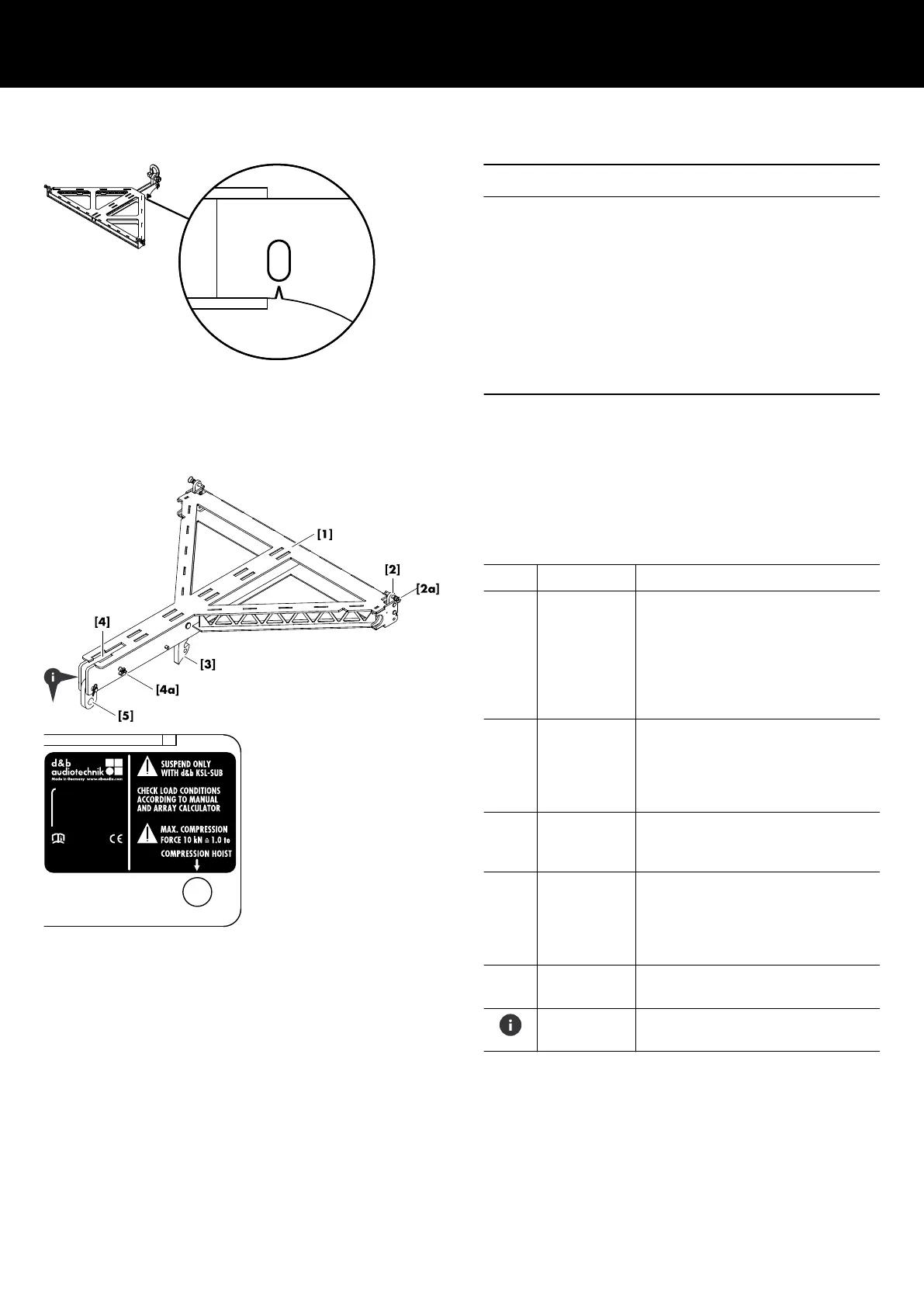

3.5 Z5747 KSL-SUB Adapter frame
Please verify the shipment for completeness and proper condition
of the items.
The KSL-SUB Adapter frame is equipped and supplied with the
following rigging components:
Pos.
Component Description
[1] Z5747 KSL-
SUB Adapter
frame
The KSL-SUB Adapter frame is
constructed from high-grade steel
following the principles of truss
construction to achieve the lowest
possible dead weight of
38 kg (84 lb), including all rigging
components.
[2] Locking pins
front
Two fixed Front links including
corresponding Locking pins [2a] (type
C: 10 x 35 mm) are provided to attach
the adapter frame to the front rigging
strands of the bottom SUB cabinet.
[3]
Rear link
(frame)
The rear link of the adapter frame is
used to attach the first KSL-TOP cabinet
to the frame.
[4] Rear link slot A corresponding slot accepts the Rear
link of the bottom KSL-SUB cabinet
which is fixed and secured using the
two Locking pins [4a] (Type B:
10 x 45 mm).
[5]
Compression
pickpoint
Pickpoint for the attachment of the
Z5709 SL Compression chain.
Instruction label providing vital safety
and rigging instructions.
