SL-Series rigging components

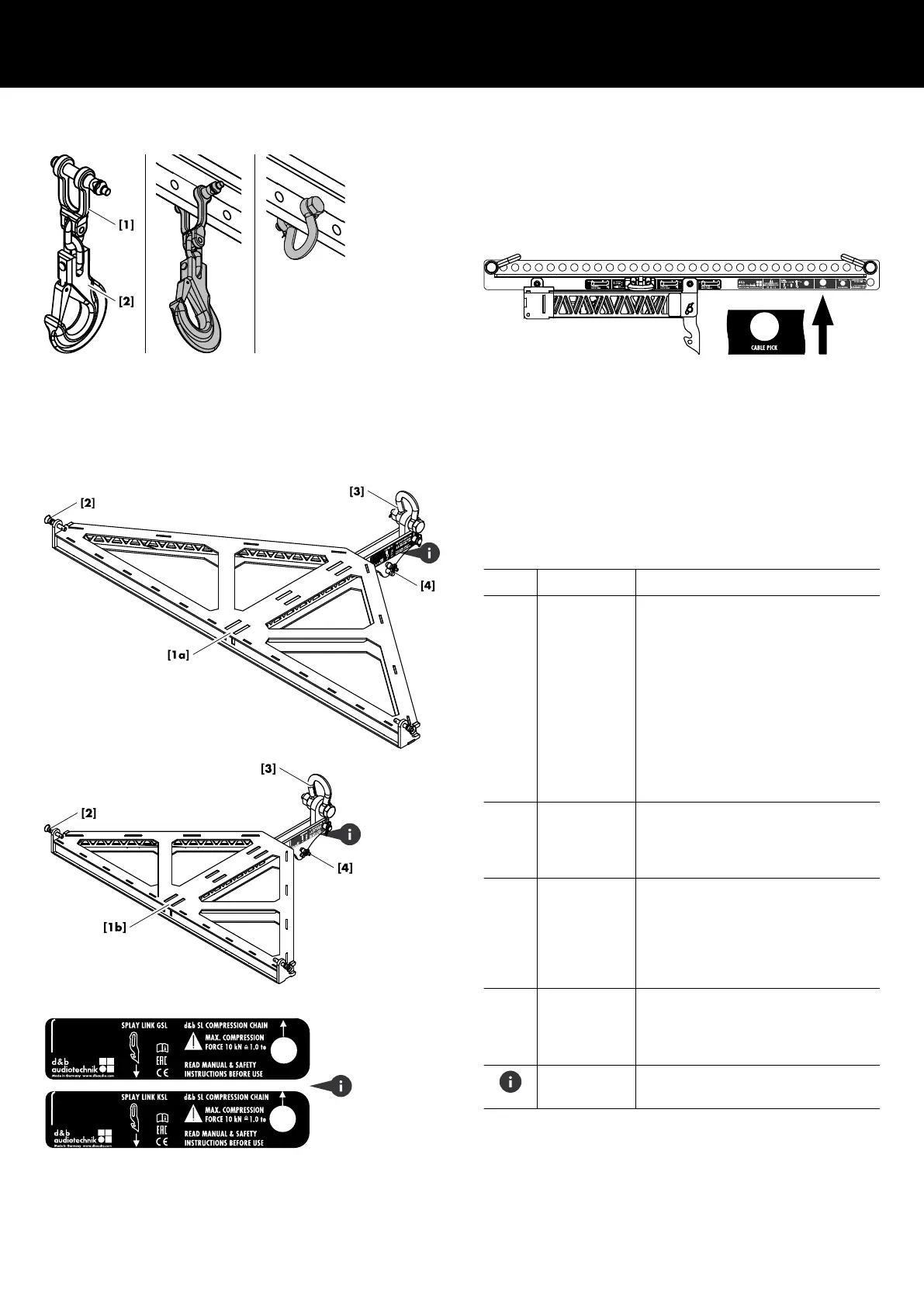

3.3.4 Z5713 SL Cable pick
The Z5713 SL Cable pick consists of coupling shackle [1] with a
corresponding Locking pin (Type A: 16 x 55 mm) and a hook with
safety latch [2].
It is intended to be attached to the load beam. For this purpose the
load beam provides a dedicated 21 mm hole.
Alternatively, a standard 3.25 t shackle can be used for this
purpose.
3.4 SL-Series compression frames
Please verify the shipment for completeness and proper condition
of the items.
The SL-Series compression frames are equipped and supplied with
the following rigging components:
Pos.
Component Description
[1a] Z5703 GSL
Compression
frame
The SL-Series compression frames are
constructed from high-grade steel
following the principles of truss
construction to achieve the lowest
possible dead weight of:
GSL: 18.6 kg (41 lb)
KSL: 16 kg (35.3 lb)
including all rigging components.
They are attached to the bottom of the
last cabinet of the array.
[1b] Z5725 KSL
Compression
frame
[2] Locking pins
front
Two Locking pins (Type C:
10 x 35 mm) are provided to attach
the compression frame to the front
rigging strands of the bottom cabinet.
[3]
Compression
pickpoint
At the center rear, a dedicated
pickpoint is provided to accept the d&b
B2447.074 Compression frame master
link or the hook of a chain hoist. It
comprises an O-ring and a dedicated
4.75 t shackle.
[4]
Splay link slot A corresponding slot accepts the Splay
link of the bottom cabinet which is fixed
and secured using the two Locking pins
(Type B: 12 x 45 mm).
Instruction labels providing vital safety
and rigging instructions.
d&b SL-Series Rigging manual 1.10 en 19
