SL-Series ground stacks
Attaching the poles to the cart
Note: Graphics shown without loudspeaker cabinets for
better illustration.

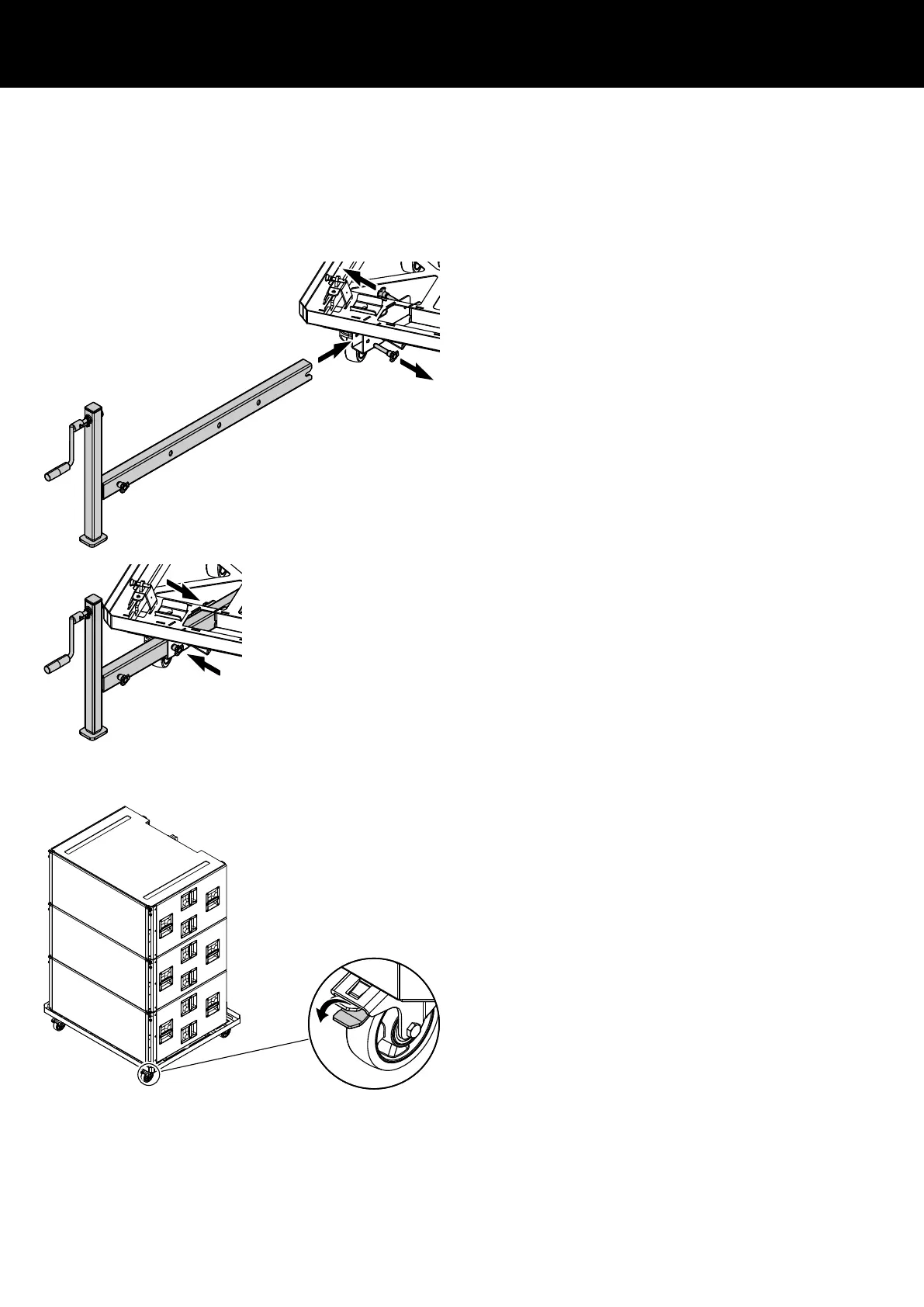

To release and reinsert the Socket pins, you have to access them
from underneath the cart.
1. On the cart, release all Socket pins of the corresponding slot.
2. Insert the pole to the desired extension length.
3. Reinsert all Socket pins and ensure they are fully inserted and
locked.
4. For the remaining poles, proceed in the same manner.
10.2 SL-SUB/SL-GSUB ground stack
Limitations
A maximum of 3 x SUB cabinets together with the E7492 Touring
cart serving as ground support are allowed to be set up as ground
stack.
Setup procedure
With the touring cart serving as ground support, simply place the
cart in position and lock all wheel brakes.
