d&b audiotechnik SL Series Rigging Manual

SL-Series rigging components
3.16 SL-Series touring carts
Intended use
The SL-Series touring carts are an integrated part of the d&b SL-
Series rigging system. They are intended as transport solution as
well as for setup, requiring less space on-site.
In addition, the load beams can also be stored in the cart, while
the flying frames may be mounted and remain on top of the entire
cabinet assembly during transport and storage in the cart.
Once the cabinet assemblies are suspended, the touring carts can
be stacked and stored away.
The touring carts are also intended as ground support for SL-Series
ground stacks. Please refer to Þ Chapter 10 "SL-Series ground
stacks" on page 67.
TheSL-Series Touring carts are equipped and supplied with the
following rigging components.
Please verify the shipment for completeness and proper condition
of the items.

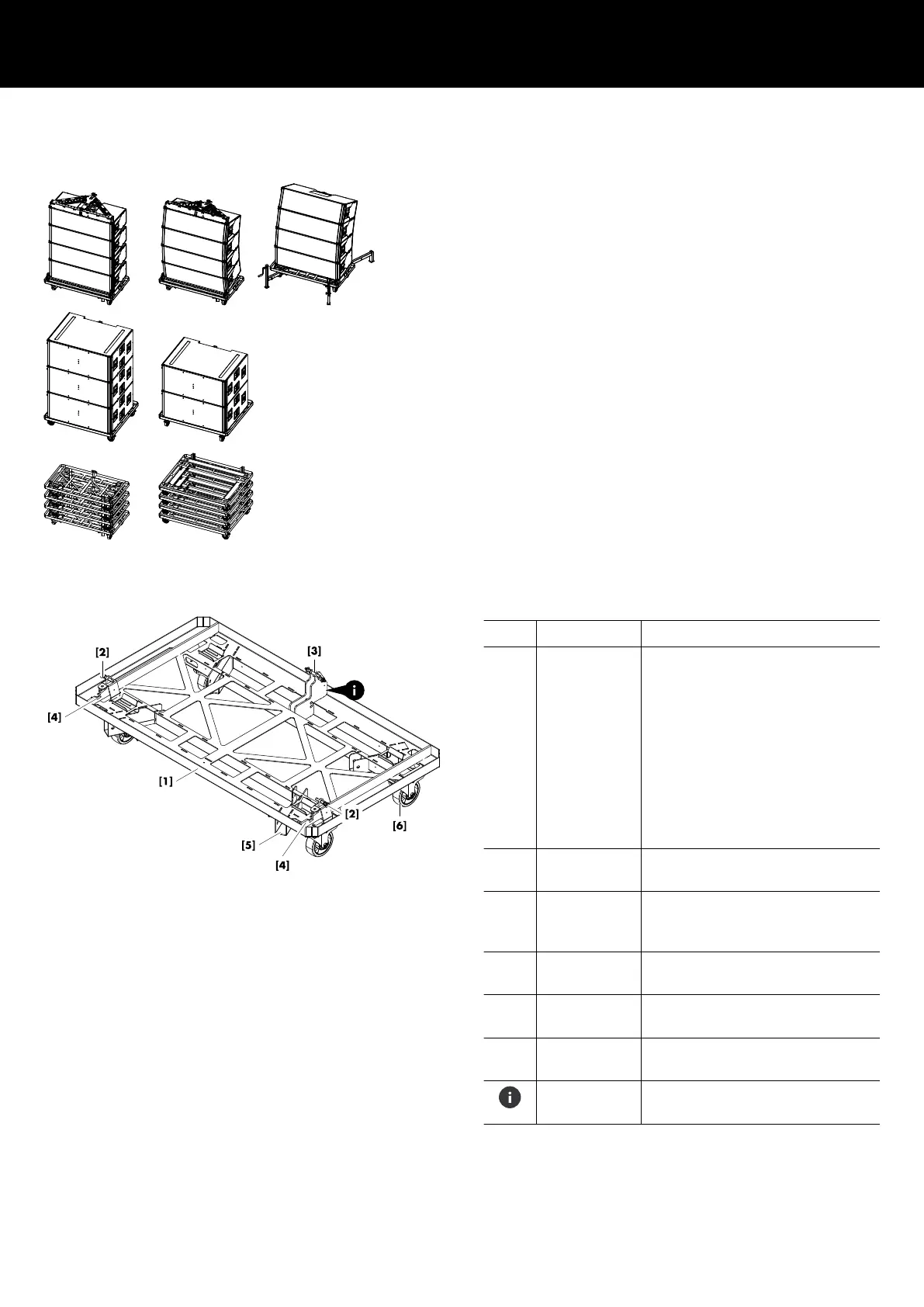

3.16.1 GSL/KSL Touring carts
3.16.1.1 E7490 GSL Touring cart
Pos.
Component Description
[1] E7490 Touring cart 4 x GSL8/GSL12
Dead weight: 58 kg (128 lb).
Total weight: 378 kg (833 lb),
4 x TOP cabinets incl cover.
Total weight: 453 kg (1000 lb),
incl. flying frame and load beam.
Dimensions:
H x W x D (cm) 205 x 140 x 78
H x W x D (inch) 81 x 55 x 30.5
[2] Locking pins
front
2 x Locking pins (Type C, 10 x
35 mm) at the front.
[3] Locking pins
rear
2 x Locking pins (Type B, 12 x
45 mm) at the center rear Splay link
slot.
[4] Two storage slots for the Z5702 GSL
Load beam.
[5] Four slots, one at each corner, that
accept the E7494 SL Outrigger.
[6] Four heavy duty brake wheels
125 x 40 mm.
Touring cart instruction label providing
vital safety and rigging instructions.
d&b SL-Series Rigging manual 1.10 en 33
