SL-Series rigging components

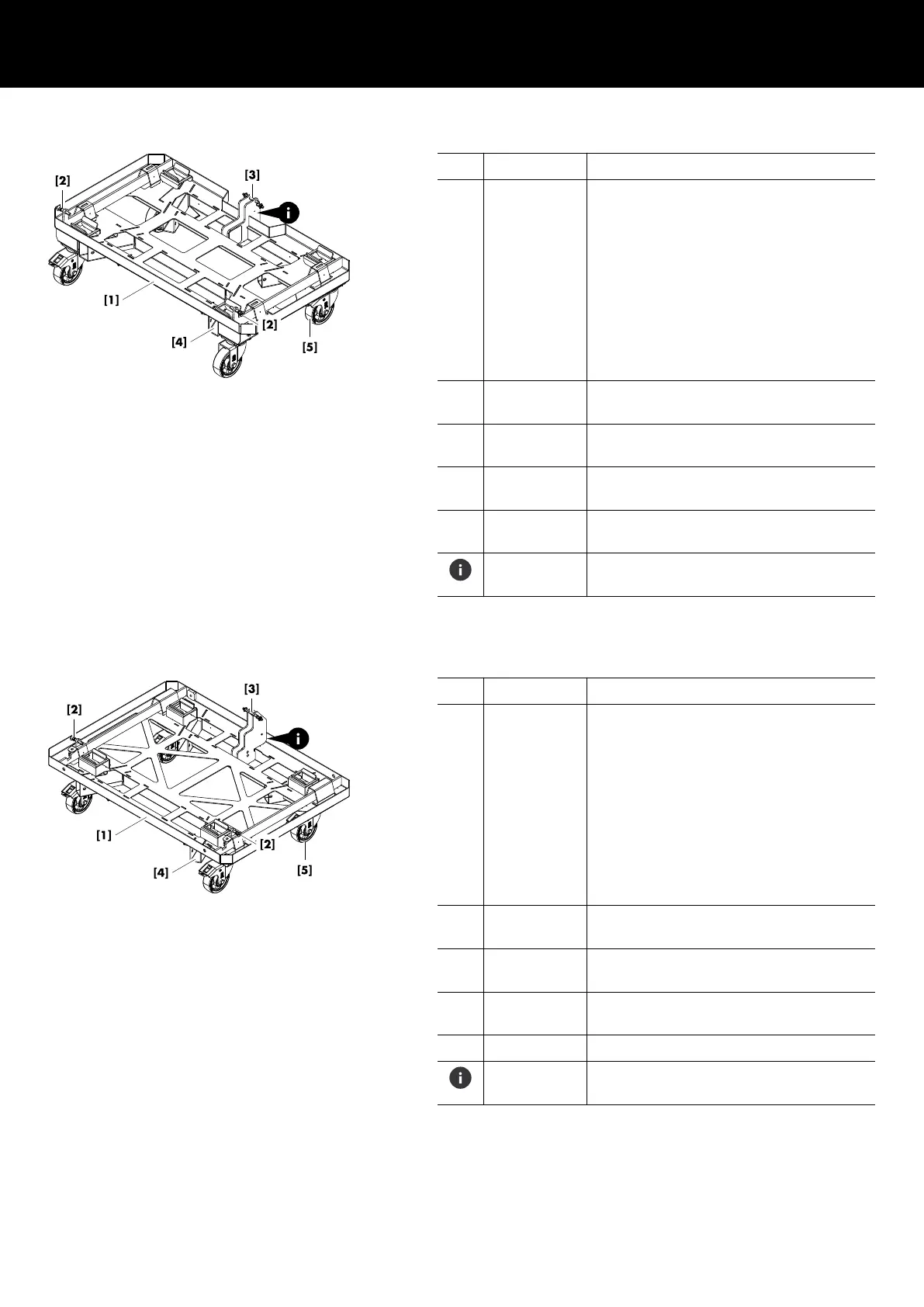

3.16.1.2 E7802 KSL Touring cart
Pos. Component Description
[1] E7802 Touring cart 4 x KSL8/KSL12
Dead weight: 50 kg (110 lb).
Total weight: 288 kg (635 lb),
4 x TOP cabinets incl cover.
Total weight: 340 kg (750 lb),
incl. flying frame and load beam.
Dimensions:
H x W x D (cm) 183 x 110 x 60
H x W x D (inch) 72 x 43 x 23.5
[2] Locking pins
front
2 x Locking pins (Type C, 10 x 35 mm) at the
front.
[3] Locking pins
rear
2 x Locking pins (Type B, 10 x 45 mm) at the
center rear Splay link slot.
[4] Four slots, one at each corner, that accept the
E7494 SL Outrigger.
[5] Four heavy duty wheels 125 x 40 mm, two of
them as brake wheels, cross-mounted.
Touring cart instruction label providing vital
safety and rigging instructions.
3.16.1.3 E7495 KSL Touring cart - Tension
Pos.
Component Description
[1] E7495 Touring cart 4 x KSL8/KSL12
Dead weight: 55 kg (121 lb).
Total weight: 293 kg (646 lb),
4 x TOP cabinets incl. cover.
Total weight: 344 kg (758 lb),
incl. flying frame and load beam.
Dimensions:
H x W x D (cm) 175 x 110 x 78
H x W x D (inch) 69 x 43 x 30.5
[2] Locking pins
front
2 x Locking pins (Type C, 10 x 35 mm) at the
front.
[3] Locking pins
rear
2 x Locking pins (Type B, 10 x 45 mm) at the
center rear Splay link slot.
[4] Four slots, one at each corner, that accept the
E7494 SL Outrigger.
[5] Four heavy duty brake wheels 125 x 40 mm.
Touring cart instruction label providing vital
safety and rigging instructions.
d&b SL-Series Rigging manual 1.10 en34
