d&b audiotechnik SL Series Rigging Manual

SL-Series rigging components
3.16.1.4 Loading the carts
Safety precautions
CAUTION!
Potential risk of personal injury and/or
damage to material!
To avoid any risk of personal injury and/or damage to material,
please observe the following.
▪ The assembly should always be carried out by two persons.
▪ During assembly, be aware of the possible risk of crushing
fingers. Wear suitable protective clothing (e.g. protective gloves
and safety shoes).
Due to the size and weight of the GSL cabinets, we recommend
you whenever possible to load the cart using appropriate lifting
devices. KSL cabinets can be loaded without the need of
additional lifting devices.
Once the lifting device is attached, proceed as follows:
Storage modes
With respect to the SL-Series rigging modes (Compression or
Tension mode), GSL and KSL cabinets can be stored in the cart in
a prepared condition for operation in one of the two modes.
Manually loading for Compression mode
The following procedure describes the loading for GSL cabinets.
For KSL cabinets proceed in the same manner.

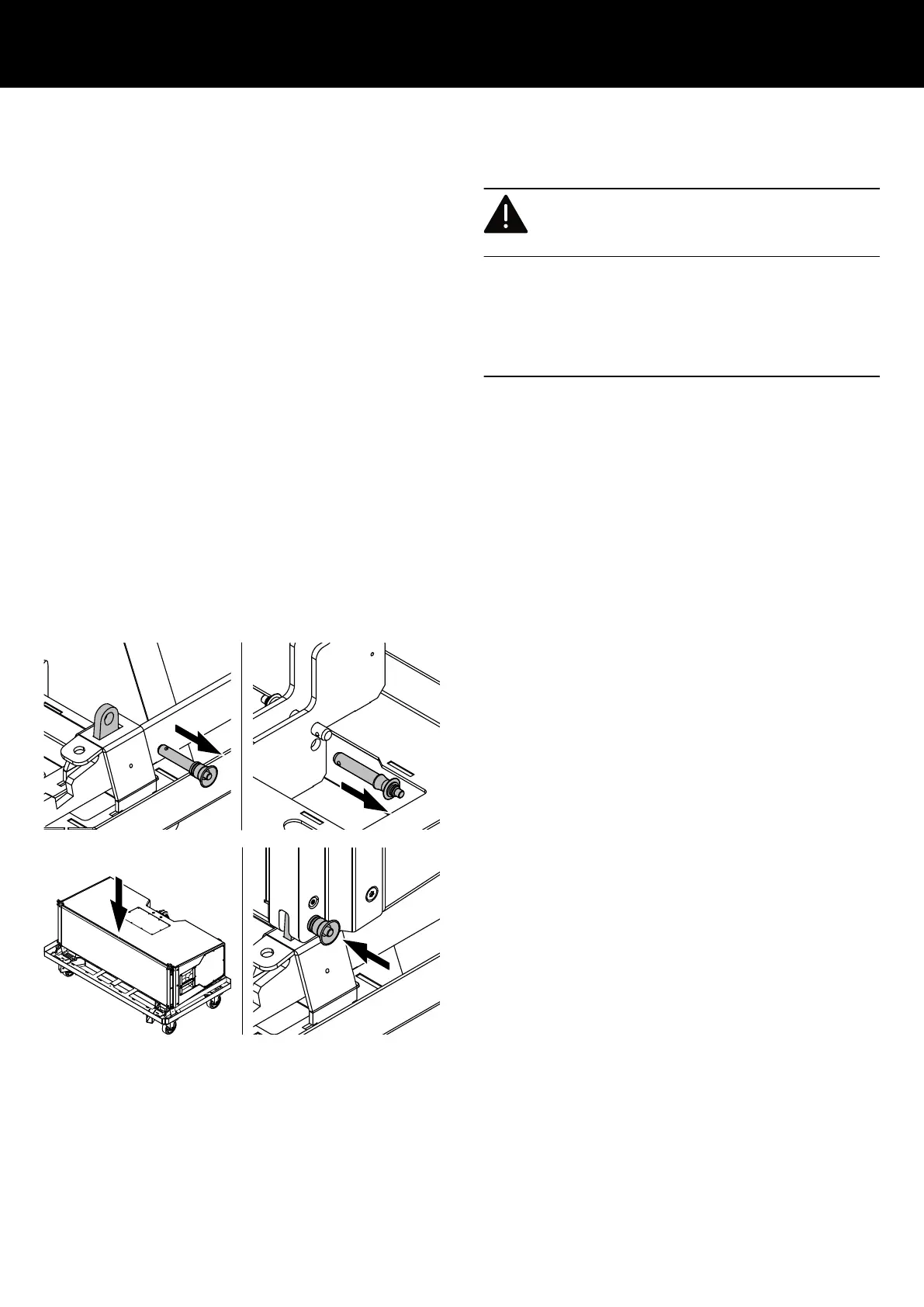

1. At the front of the cart, release the Locking pins on both sides.
2. At the rear center Splay link slot, release the bottom Locking
pin.
3. Attach the first cabinet to the front support and reinsert the
Locking pins on both sides.
d&b SL-Series Rigging manual 1.10 en 35
