d&b audiotechnik SL Series Rigging Manual

Mixed KSL array configuration
Attaching the compression chain
When the TOP cabinets are to be set up in compression mode, we
recommend you at this point of the procedure to attach the
compression chain as follows:

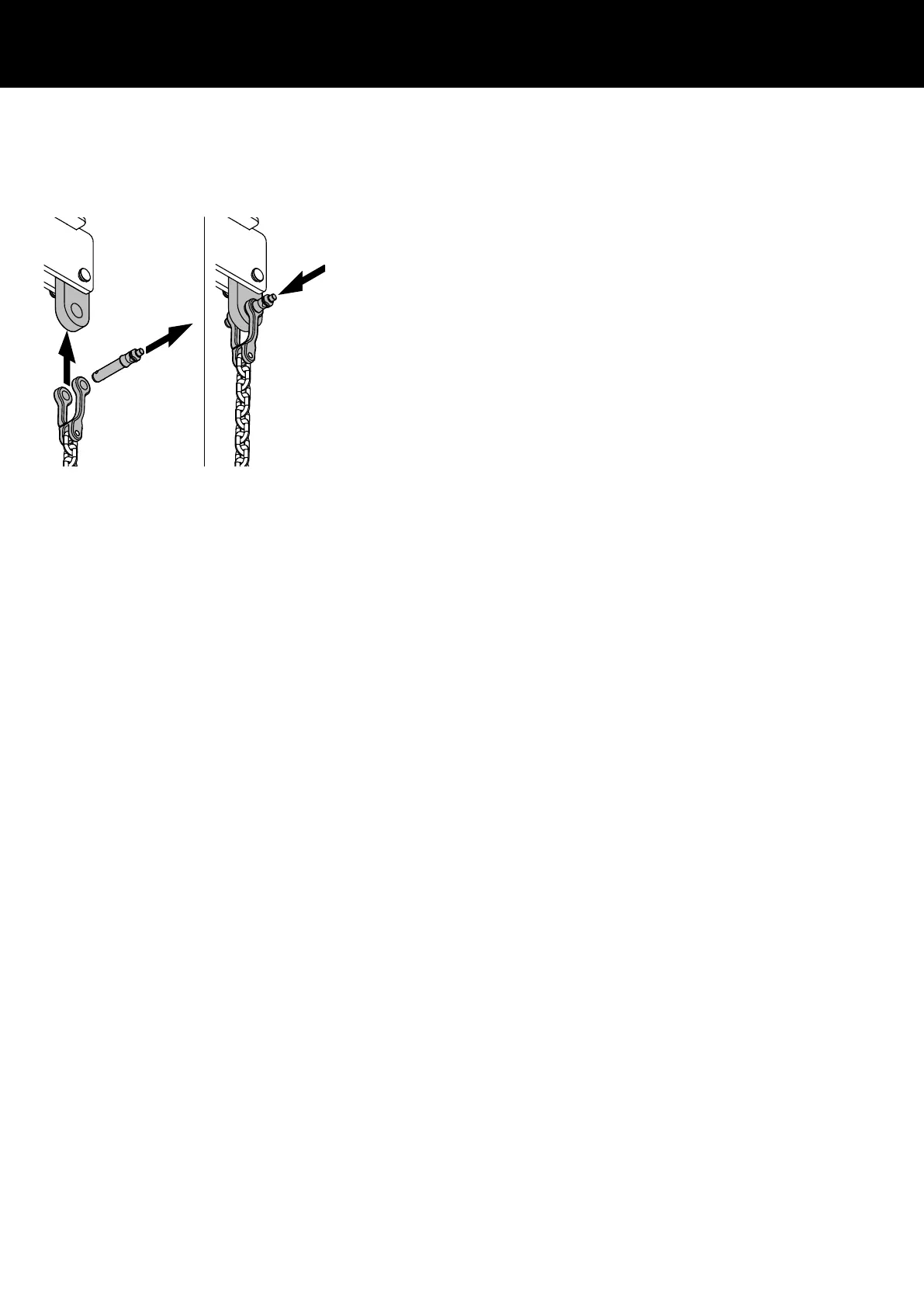

1. Release the Locking pin of the coupling shackle.
2. Attach the coupling shackle to the compression pickpoint of
the adapter frame.
3. Reinsert the Locking pin and ensure the pin is fully inserted and
locked.
To complete the assembly, please follow the further setup
procedures, as described in Þ Chapter 6 "Compression mode
setup" following step Þ "3. Attaching the compression grab link"
starting from page 48 onwards.
d&b SL-Series Rigging manual 1.10 en66

d&b audiotechnik SL Series Specifications

General

Type	Line array module
Connectors	2 x NL4
Components	2 x 1.4" HF drivers
Cabinet Construction	Plywood
Impedance	LF: 8 Ω, HF: 8 Ω
