Danfoss Semco SEM-SAFE - High-Pressure Manifold

END USER MANUAL
OPERATION AND MAINTENANCE OF HIGH PRESSURE WATER MIST PUMP UNIT
REVISION 4, MAY 2016
PAGE 17 / 48
High-pressure manifold 3.9
The high-pressure manifold collects and discharges water pumped from the pilot pump (wet system)
or high-pressure pumps through the main valve into the water mist distribution pipe system. The
main components attached to the manifold are described in the following chapters.

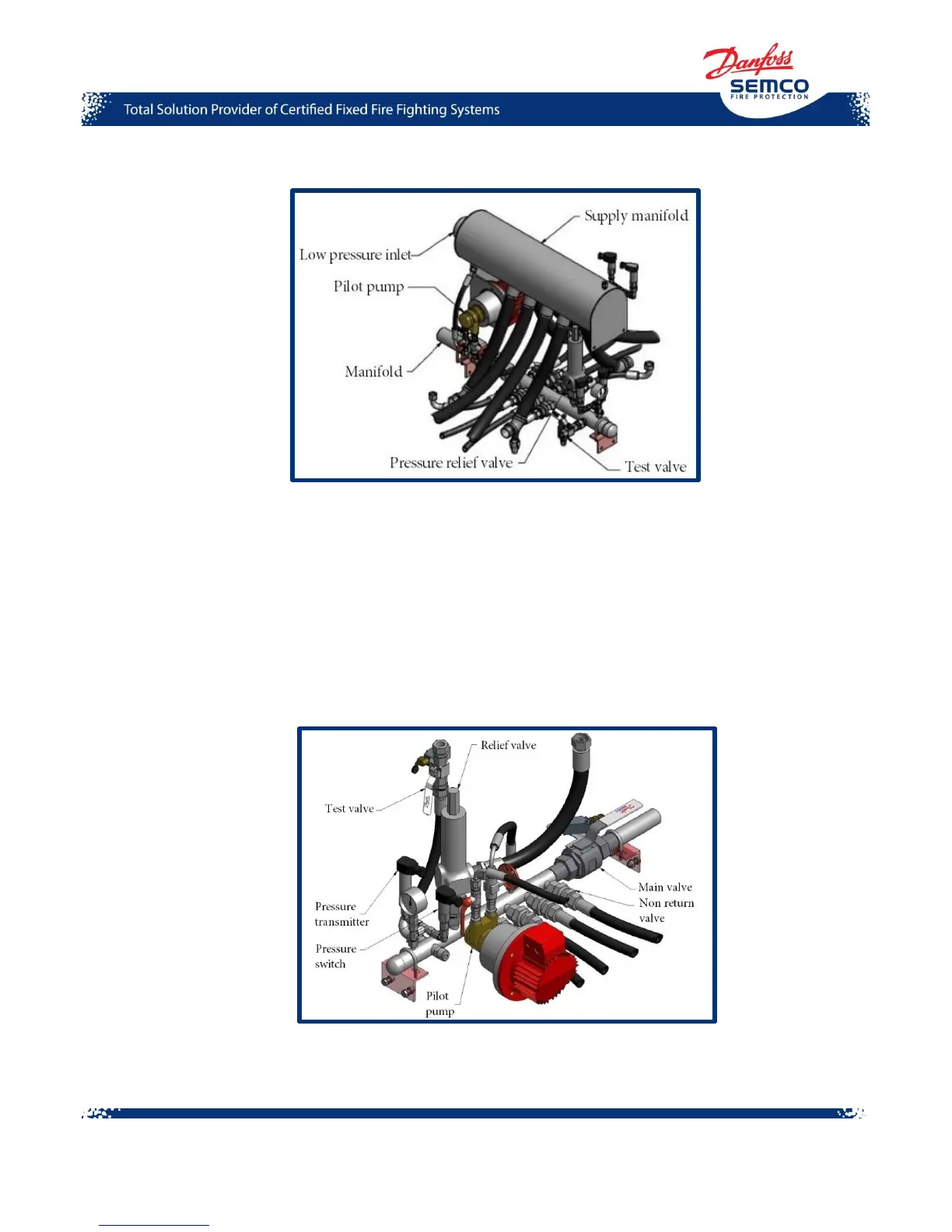

Figure 6. Example of supply manifold
Figure 7. Example of high-pressure manifold
