Standard Unit Control Panel 3.14
The Unit Control Panel constantly monitors the function of the SEM-SAFE
®
High-Pressure Water
Mist Pump Unit. It controls power and water supply for failure as well as monitors alarm and
system status. It informs of any failure and which parts of the unit are working during activation of
the system.
Land application 3.14.1

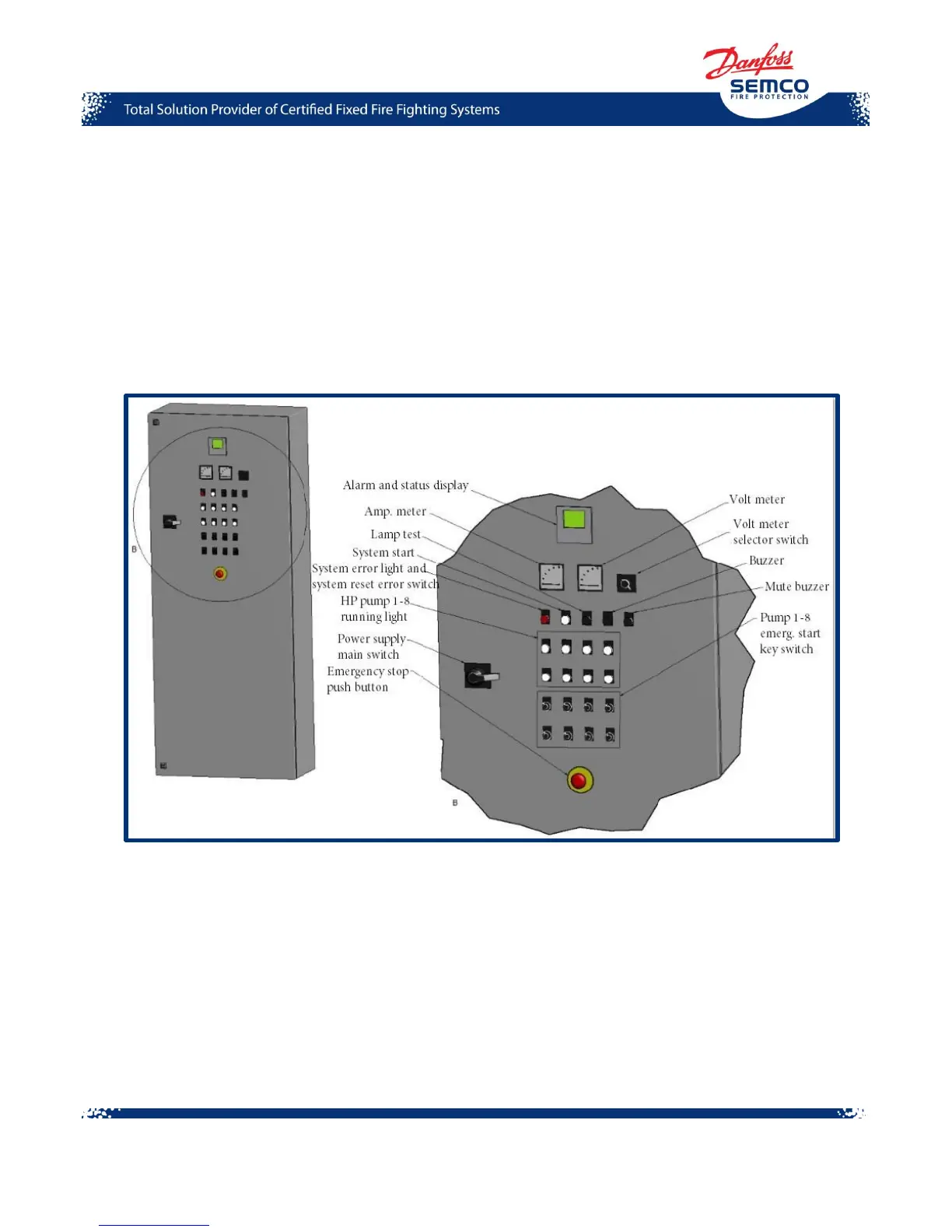

Figure 13. Example of Unit Control Panel for Land applications
A functional description of buttons, lamps and switches placed on the unit control panel is presented
below. Please note that this is a description of unit control panel including all options, and your
SEM-SAFE
®
High-Pressure Water Mist Pump Unit might not contain all of them.
