2 Menu operation RC8CC202 © Danfoss 09/2012 AK-LM 330 Vers. 1.4x
Menu list This menu function can be used together with system software type AKM. The description is divided
up into function groups that can be displayed on the PC screen. Within each group it is now possible
to show the measured values, or settings. Regarding the use of AKM, reference is made to the AKM
Manual.
Validity This menu operation (from September 2012) applies to controller type AK-LM 330, code Nos
080Z0170 with programme version 1.4x.

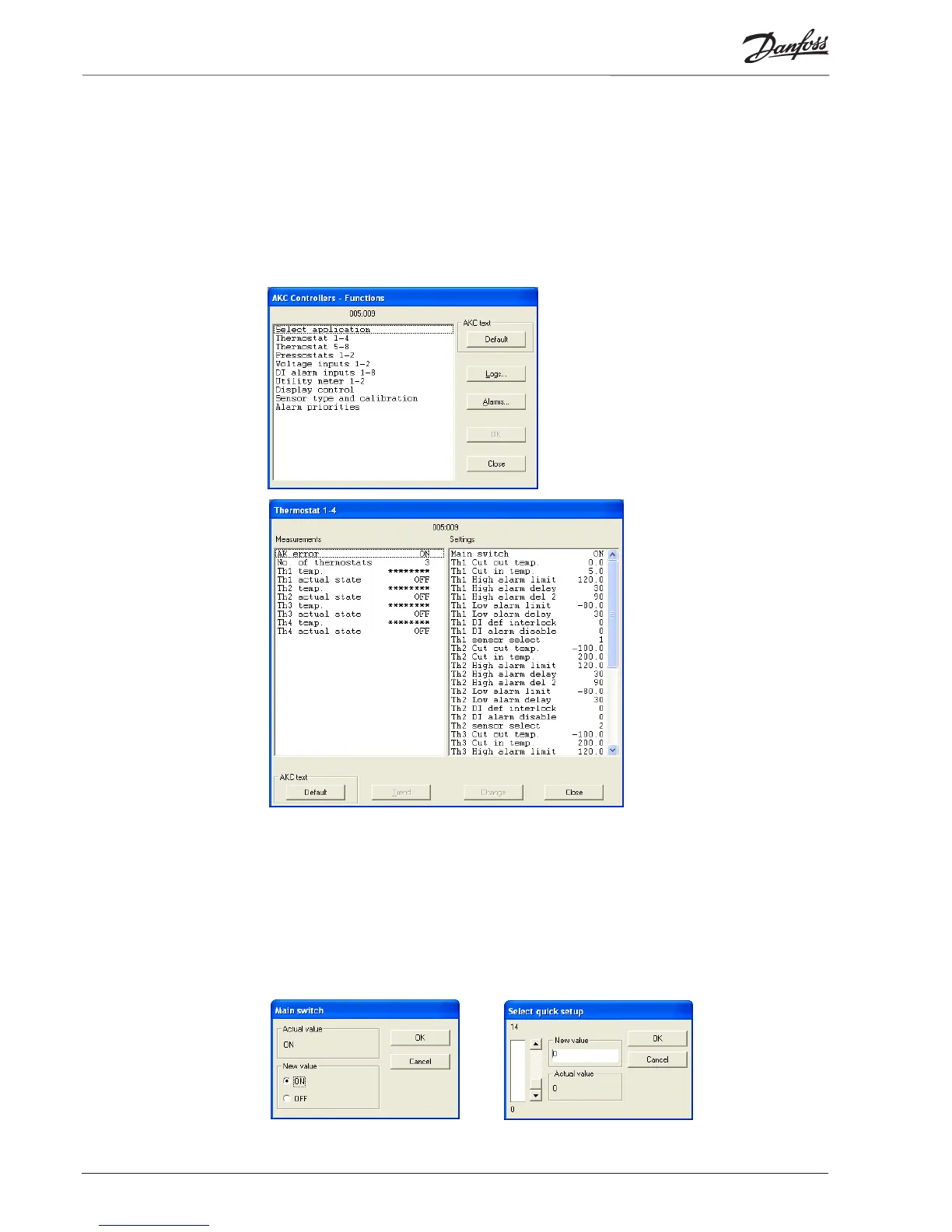

The operation is divided up into several
function groups. When a selection has been
made, push “OK”, and you may continue to
the next display. By way of example, "Ther-
mostat 1-4" has been selected here.
From the measure line the dierent val-
ues can be read. The values are constantly
updated.
In the list of settings the set values can be
seen. If a setting has to be changed, select
the parameter and proceed via “OK”.
Function groups
Measurements The various measurements can be read directly. If a graphic display of the measurements is required,
up to eight of them can be shown. Select the required measurements and push “Trend”.
Settings Settings can only be made for the daily operation. Conguration settings cannot be seen, changed or
written out. They can only be made from the Service Tool programme.
There are four kinds of settings, ON/OFF settings, settings with a variable value, time settings and
“reset alarms”.
Enter the new value or move the sliding scale up or down.
The new value will apply, when “OK” is pushed.
Set the required value and push “OK”
