AKD 2800
Programming
Description of choice:
Setthevaluetobeshownonthedisplaywhenthe
maximum feedback has been obtained on the selected
feedback input (parameter 308/314 Analogue inputs).
416 Process units
(REF/FEEDB. UNIT)
Value:
No unit ( NO UNIT)
[0]
%(%)
[1]
ppm (PPM)
[2]
rpm (RPM)
[3]
✭bar (BAR)
[4]
Cycles/min (CYCLE/MI)
[5]
Pulses/s (PULSE/S)
[6]
Units/s (UNITS/S)
[7]
Units/min. (UNITS/MI)
[8]
Units/h (UNITS/H)
[9]
°C (°C)
[10]
Pa (PA)
[11]
l/s (L/S)
[12]
m
3
/s (M
3
/S)
[13]
l/min. (L/M)
[14]
m
3
/min. (M
3
/MIN )
[15]
l/h (L/H)
[16]
m
3
/h (M
3
/H)
[17]
Kg/s (KG/S)
[18]
Kg/min. (KG/MIN)
[19]
Kg/hour (KG/H)
[20]
Tons/min. (T/MIN)
[21]
Tons/hour (T/H)
[22]
Metres (M)
[23]
Nm (NM)
[24]
m/s (M/S)
[25]
m/min. (M/MIN)
[26]
°F (°F)
[27]
In wg (IN WG)
[28]
gal/s (GAL/S)
[29]
Ft
3
/s (FT
3
/S)
[30]
Gal/min. (GAL/MIN)
[31]
Ft
3
/min. (FT
3
/MIN )
[32]
Gal/h (GAL/H)
[33]
Ft
3
/h (FT
3
/H)
[34]
Lb/s (LB/S)
[35]
Lb/min. (LB/MIN)
[36]
Lb/hour (LB/H)
[37]
Lb ft (LB FT)
[38]
Ft/s (FT/S)
[39]
Ft/min. (FT/MIN)
[40]
Function:
Select among different units to be shown on the display.
The unit is read out if an LCP control unit can be
connected, and if Reference [unit] [2] or Feedback [unit]
[3] has been selected in one of parameters 009-012
Display read-out, and in Display mode. The unit is used
in Closed loop also as a unit for Minimum/Maximum
reference and Minimum/Maximum feedback.
Description of choice:
Select the required unit for the reference/feed-
back signal.
423 U1 voltage
(U1 VOLTAGE)
Value:
0.0 - 999.0 V
✭ par. 103
Function:

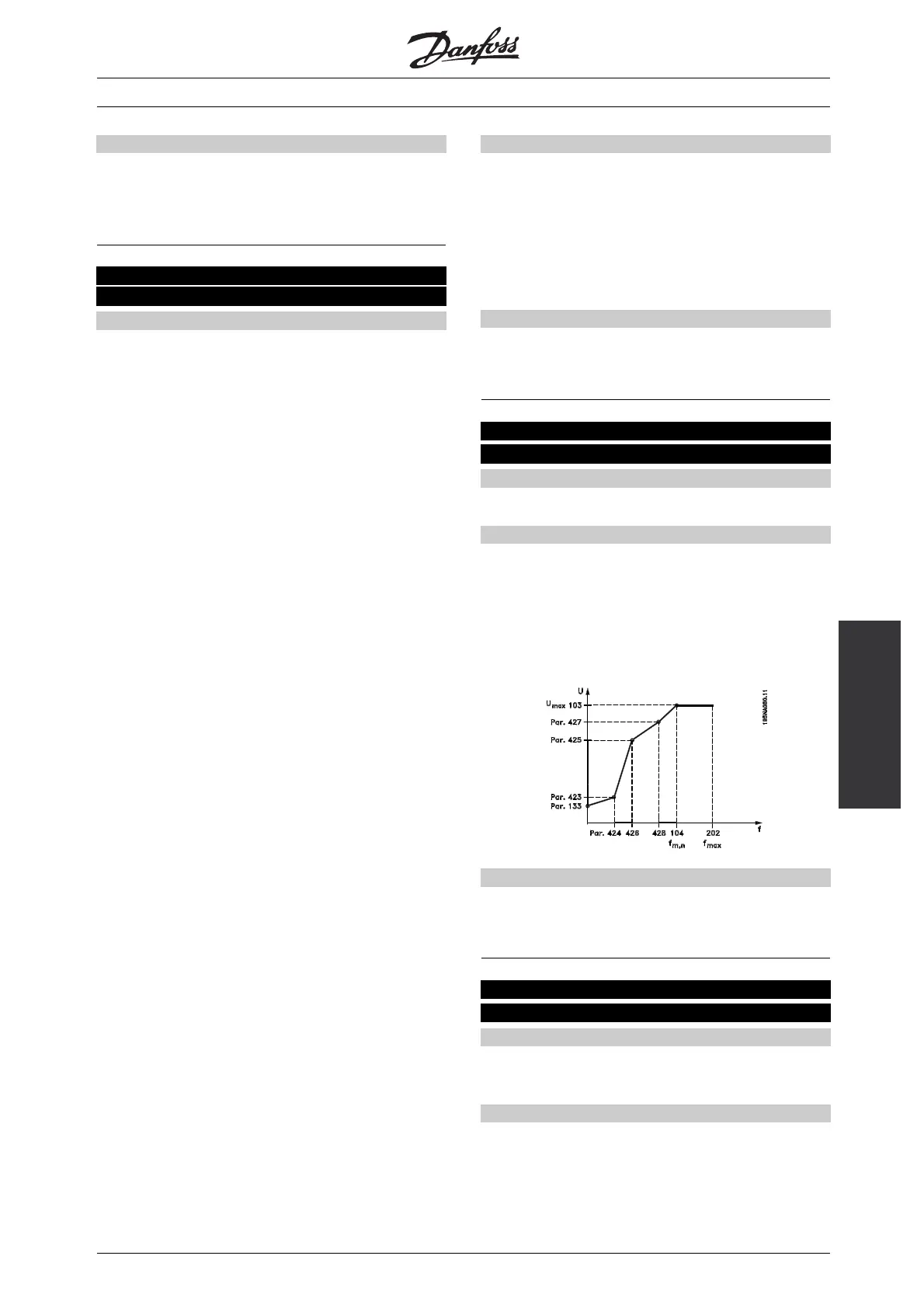

Parameters 423-428 are used when in parameter
101 Torque characteristic a selection has been made
of Special motor characteristic [8]. It is possible to
determine a U/f characteristic on the basis of four
definable voltages and three frequencies. The voltage
at 0 Hz is set in parameter 133 Start voltage.
Description of choice:
Set the output voltage (U1) that is to match the first
output frequency (F1), parameter 424 F1 frequency.
424 F1 frequency
(F1 FREQUENCY)
Value:
0.0 - par. 426 F2 frequency
✭ Par. 104 Motor frequency
Function:
See parameter 423 U1 voltage .
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.28.H2.02 -
35
