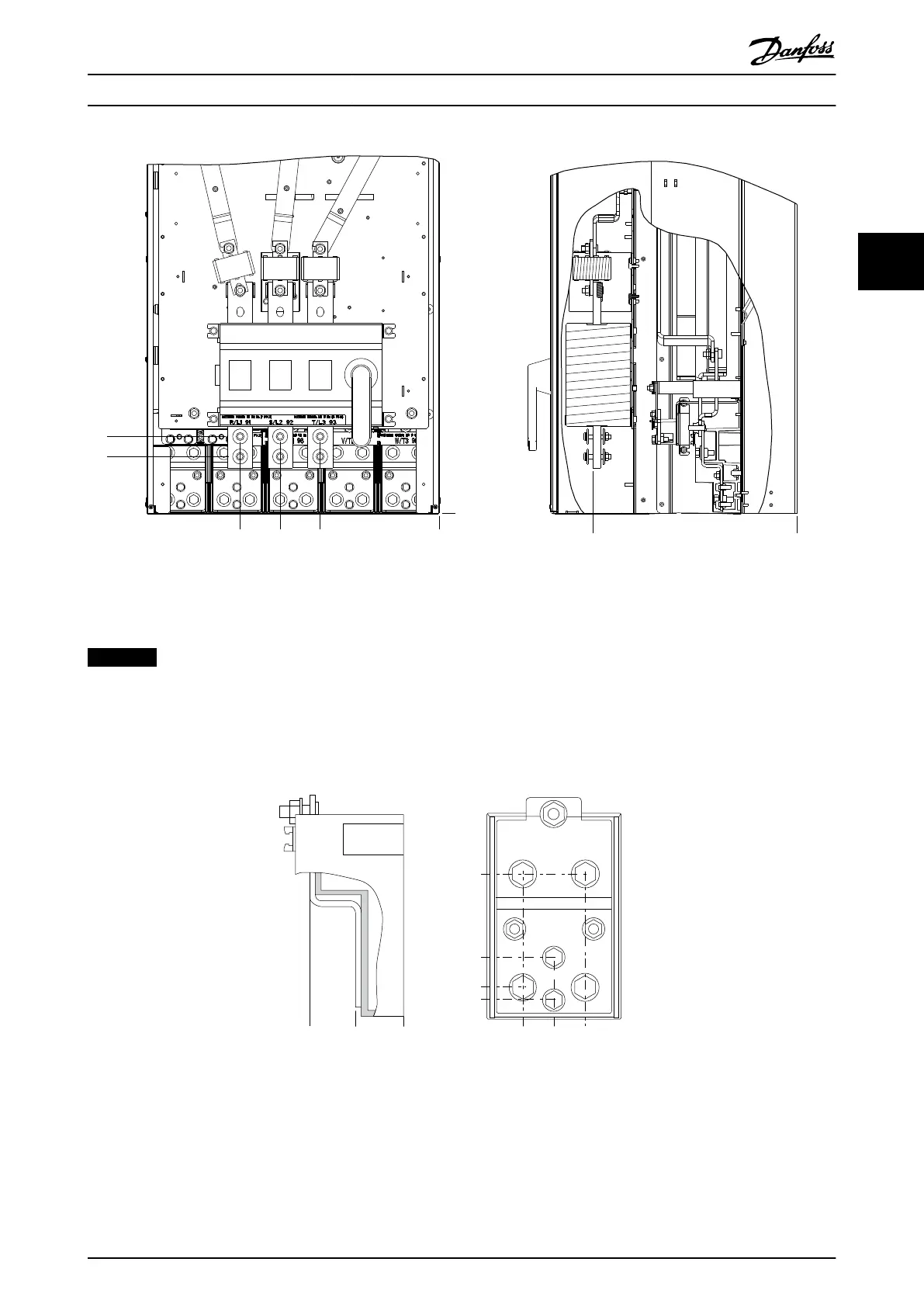

Illustration 3.22 IP00 Enclosure Power Connections Positions of Disconnect Switch
NOTICE
The power cables are heavy and difficult to bend. Consider the optimum position of the frequency converter for
ensuring easy installation of the cables.
Each terminal allows use of up to 4 cables with cable lugs or use of standard box lug. Earth is connected to relevant
termination point in the frequency converter.
If lugs are wider than 39 mm, install supplied barriers on the mains input side of the disconnect.
104[4.1]
35[1.4]
10[0.4]
0[0.0]
0[0.0]
40[1.6]
78[3.1]
0[0.0]
26[1.0]
26[1.0]
176FA271.10
Illustration 3.23 Terminal in Details
How to Install
VLT
®
Automation Drive FC 300 Operating Instructions
MG33U402 - Rev. 2013-12-16 27
3 3
