Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
R1R2
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
01
02
03
04
05
06
-
61
68
69
RS-485
+
130BB685.10

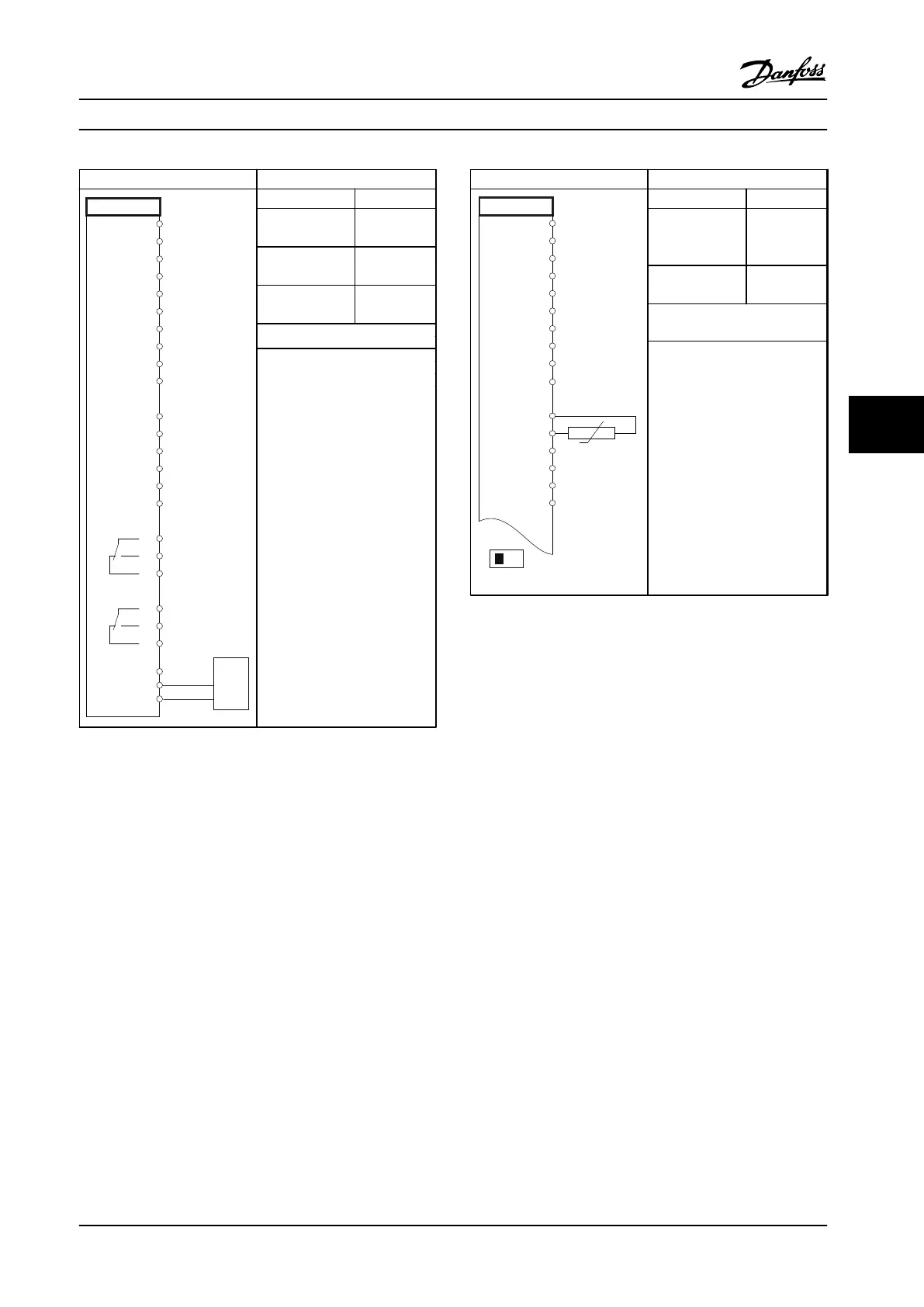

Function Setting
Parameter 8-30
Protocol FC*
Parameter 8-31
Address
1*
Parameter 8-32
Baud Rate
9,600*
*=Default Value
Notes/comments:
Select protocol, address, and
Baud rate in the parameters
mentioned above.
Table 6.11 RS-485 Network Connection
Parameters
130BB686.12
VLT
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
50
53
54
55
42
39
A53
U - I
D IN
37
Function Setting
Parameter 1-90
Motor Thermal
Protection
[2]
Thermistor
trip
Parameter 1-93 T
hermistor Source
[1] Analog
input 53
*=Default Value
Notes/comments:
If only a warning is desired, set
parameter 1-90 Motor Thermal
Protection to [1] Thermistor
warning.
Table 6.12 Motor Thermistor
Application Examples Installation Manual
MG37A322 Danfoss A/S © Rev. 04/2015 All rights reserved. 65
6
6
