7. Tighten the terminals in accordance with the specifications shown in 10.11 Fastener Torque Ratings.
Example
e30bu172.10
1
2
4
3

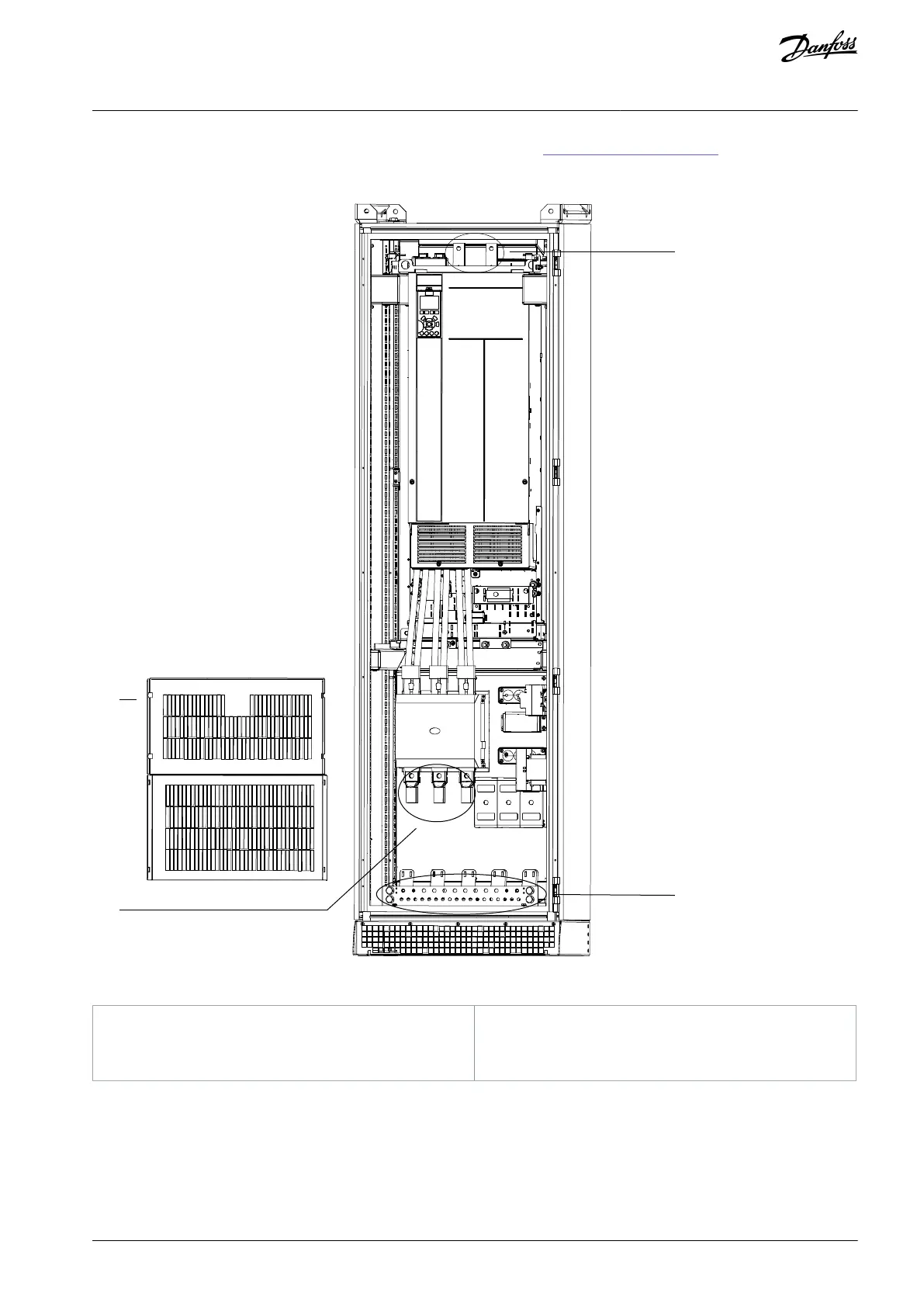

Illustration 56: Connection Points for Mains to Input Power Option (Enclosed Drive Configured Without Power Options Cabinet)
1
Lower cover
2
Input power terminals (contactor option is shown)
3
DC terminals
4
Grounding bar
