6.
1.
2.
3.
4.
Tighten the terminals in accordance with the specifications shown in 10.11 Fastener Torque Ratings.
Example
e30bu176.12
1
2

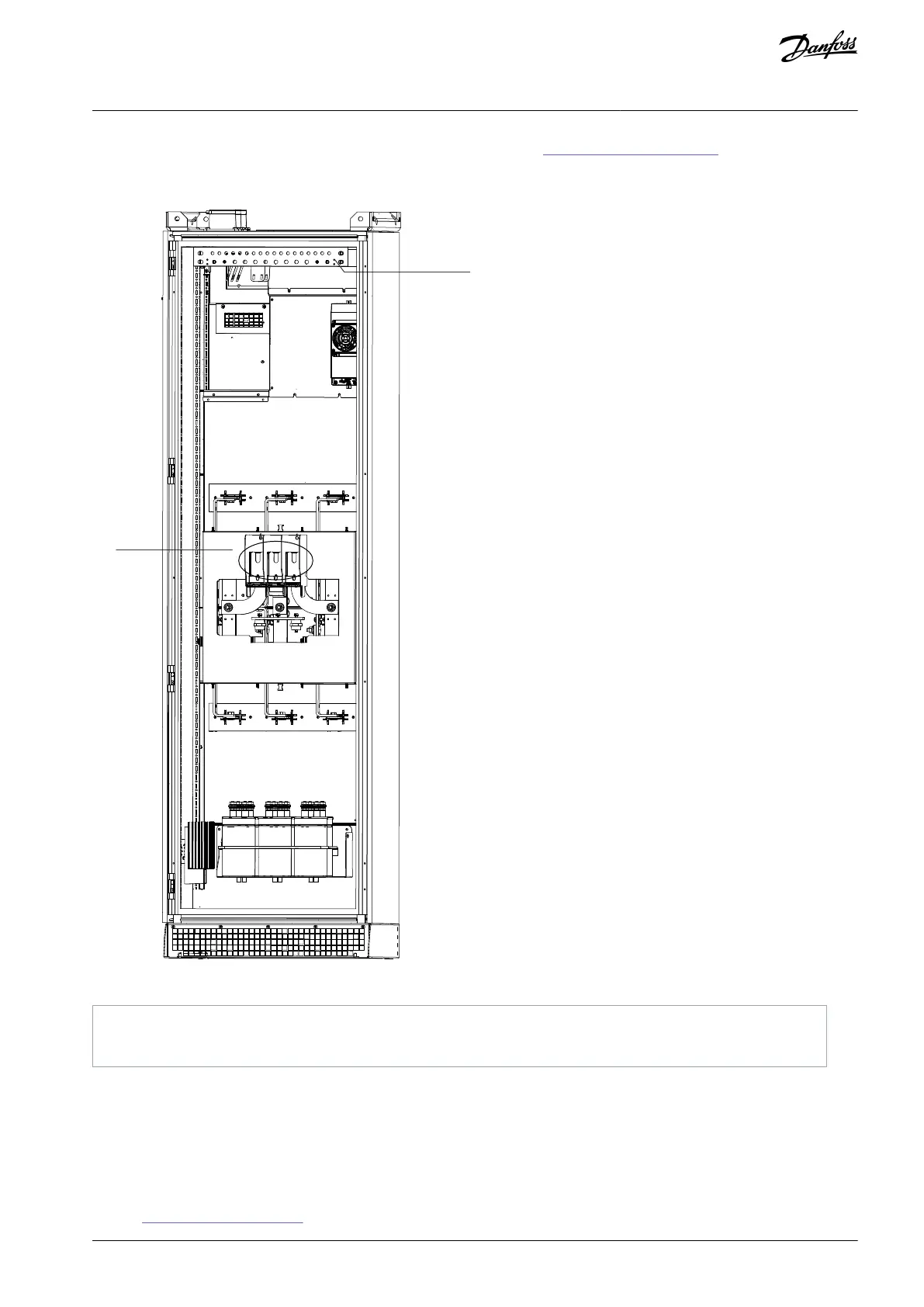

Illustration 59: Connection Points for the Sine-wave Filter to Motor (Top-exit Configuration Shown)
1
Motor terminals
2
Grounding bar
5.8.5 Connecting the dU/dt Filter to the Motor
Procedure
Strip a section of the outer cable insulation.
Fasten a connector/cable lug to the end of the stripped cable.
Create an electrical connection between the cable shield and ground by securing the stripped wire under the cable clamp.
Connect the ground cable to the nearest grounding terminal in accordance with the grounding instructions provided in
5.8.6 Connecting to Ground.
AQ262139143212en-000301 / 130R0879 | 105Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
