5.7.6.7 Motor Heater Control
Table 62: Auxiliary Function Type Codes
AC socket + cabinet light + motor heater control
AC socket + cabinet light + extended I/O terminals + motor heater control
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AC socket + cabinet light + cabinet heater + motor heater control
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AC socket + cabinet light + motor heater control + insulation monitor
Extended I/O terminals + motor heater control
Extended I/O terminals + cabinet heater + motor heater control
Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
Extended I/O terminals + motor heater control + insulation monitor
Cabinet heater + motor heater control
Cabinet heater + motor heater control + insulation monitor
Motor heater control + insulation monitor
The motor heater option provides the ability to control the supply for the motor anti-condensation heater. The 24 V DC external
supply is connected to terminal -XD1.1 in the lower part of the cabinet. When the drive is not in run state, the control relay -QAM
changes the external supply to the -XDM output terminals. When the drive is in run state, the control relay disconnects the external
supply to the motor heater. The function is disabled when MCB –FCN is open.

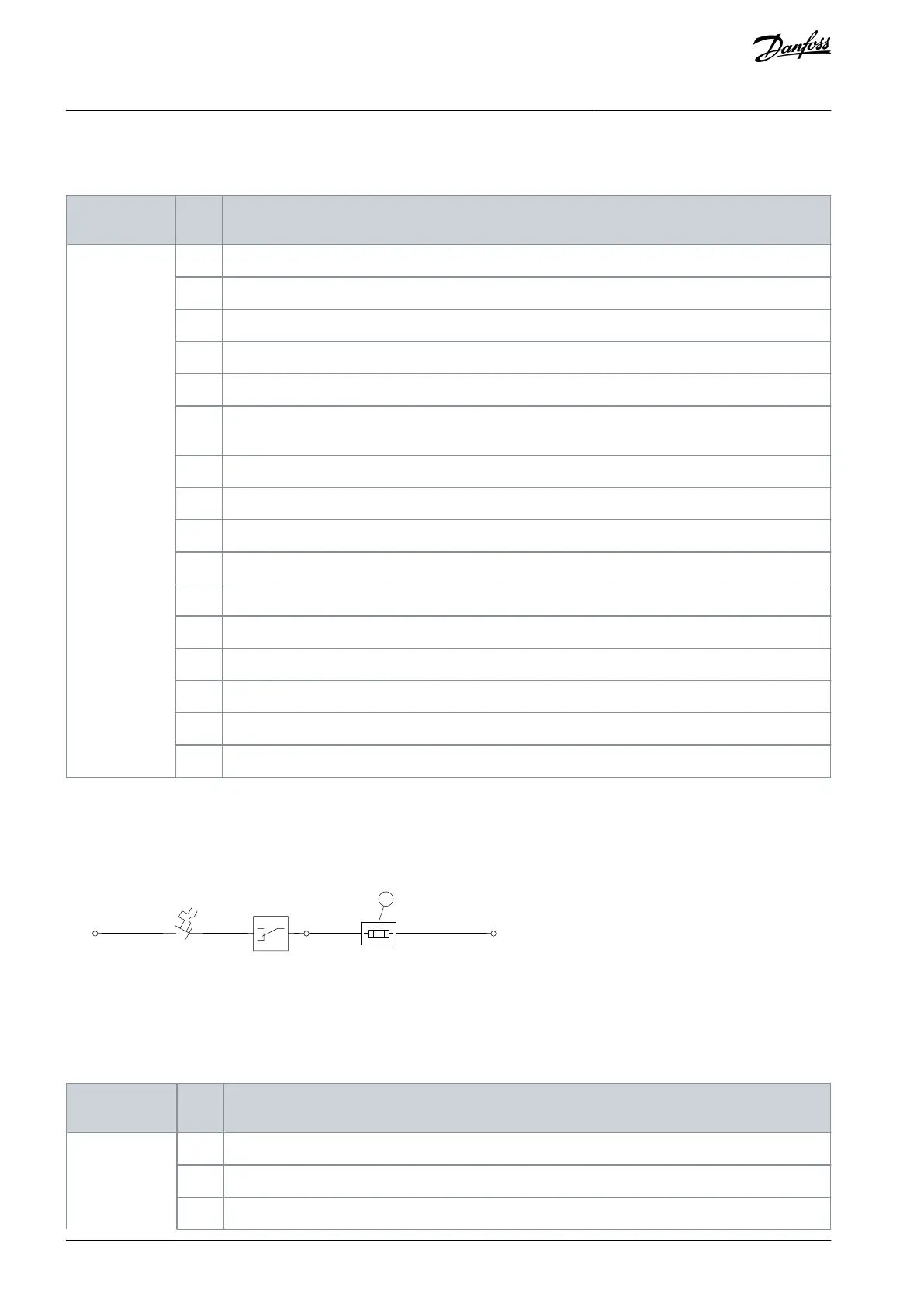

Illustration 54: Motor Heater Control (A = Heater element, not included)
5.7.6.8 Insulation Monitor
Table 63: Auxiliary Function Type Codes
AC socket+cabinet light + insulation monitor
AC socket+cabinet light + extended I/O terminals + insulation monitor
AQ262139143212en-000301 / 130R087996 | Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
