You should mount the ECL Comfort controller for easy
access near the heating unit. You can choose between three
methods:
• Mounting in a panel
• Mounting on a wall
• Mounting on a DIN rail
Screws and rawlplugs are not supplied with this pack age.

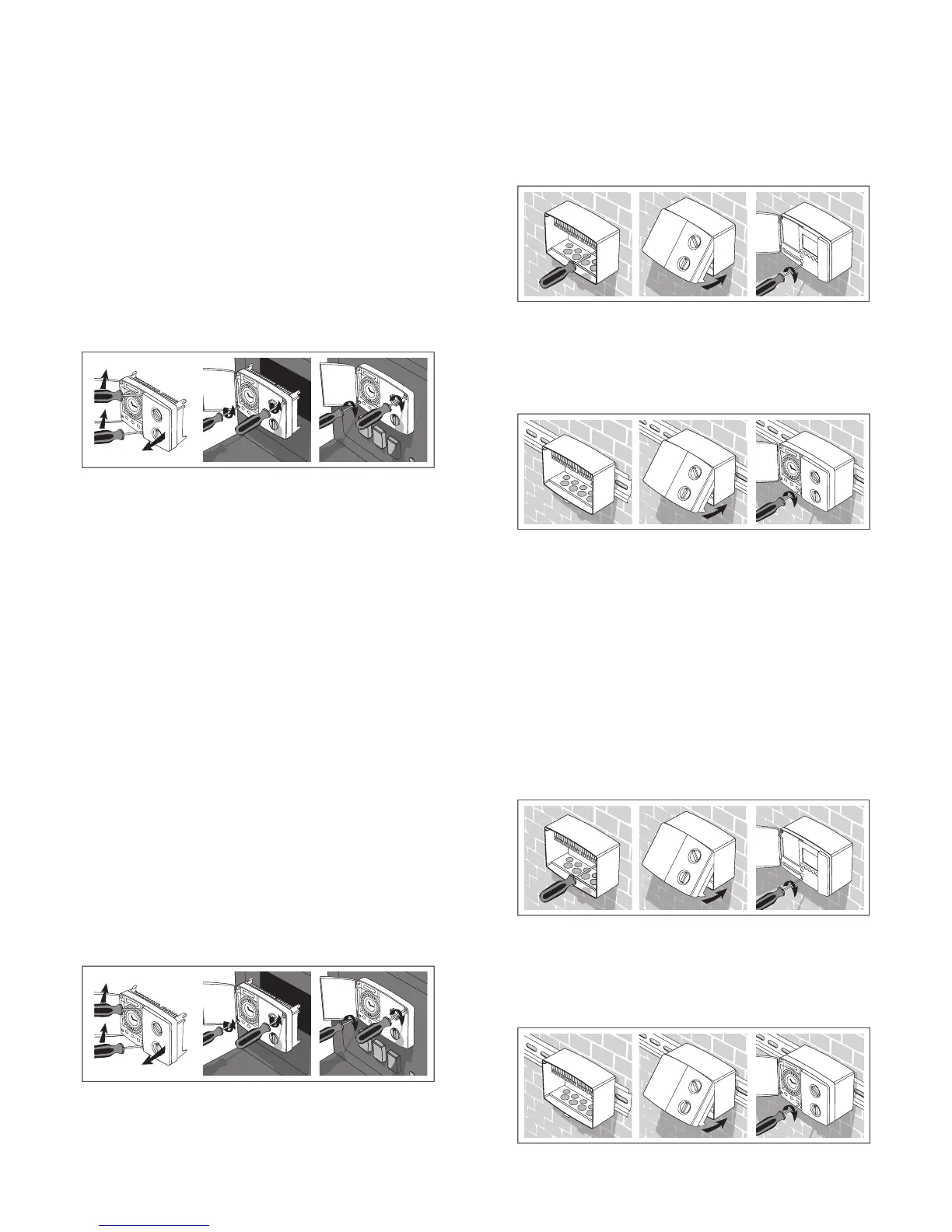

Mounting the controller
Mounting in a panel
Order mounting kit No. 087B1148.
The panel plate thickness must not exceed 3 mm. Prepare
a cutout measuring 92 x 138 mm. Establish the electrical
con nec tions. Insert the controller into the panel cutout and
fi x it with the two locks which are placed diagonally in the
two corners of the controller.
Mounting on a wall
Order mounting kit No. 087B1154.
Mount the terminal box on a wall with a smooth surface.
Establish the electrical connections and position the
controller in the box. Secure the controller by the fi xing screw.
Mounting on a DIN rail
Order mounting kit No. 087B1145.
A mounting kit is necessary to mount the box with the
controller on a DIN rail.
You should mount the ECL Comfort controller for easy
access near the heating unit. You can choose between three
methods:
• Mounting in a panel
• Mounting on a wall
• Mounting on a DIN rail
Screws and rawlplugs are not supplied with this pack age.
Mounting the controller
Mounting in a panel
Order mounting kit No. 087B1148.
The panel plate thickness must not exceed 3 mm. Prepare
a cutout measuring 92 x 138 mm. Establish the electrical
con nec tions. Insert the controller into the panel cutout and
fi x it with the two locks which are placed diagonally in the
two corners of the controller.
Mounting on a wall
Order mounting kit No. 087B1154.
Mount the terminal box on a wall with a smooth surface.
Establish the electrical connections and position the
controller in the box. Secure the controller by the fi xing screw.
Mounting on a DIN rail
Order mounting kit No. 087B1145.
A mounting kit is necessary to mount the box with the
controller on a DIN rail.
