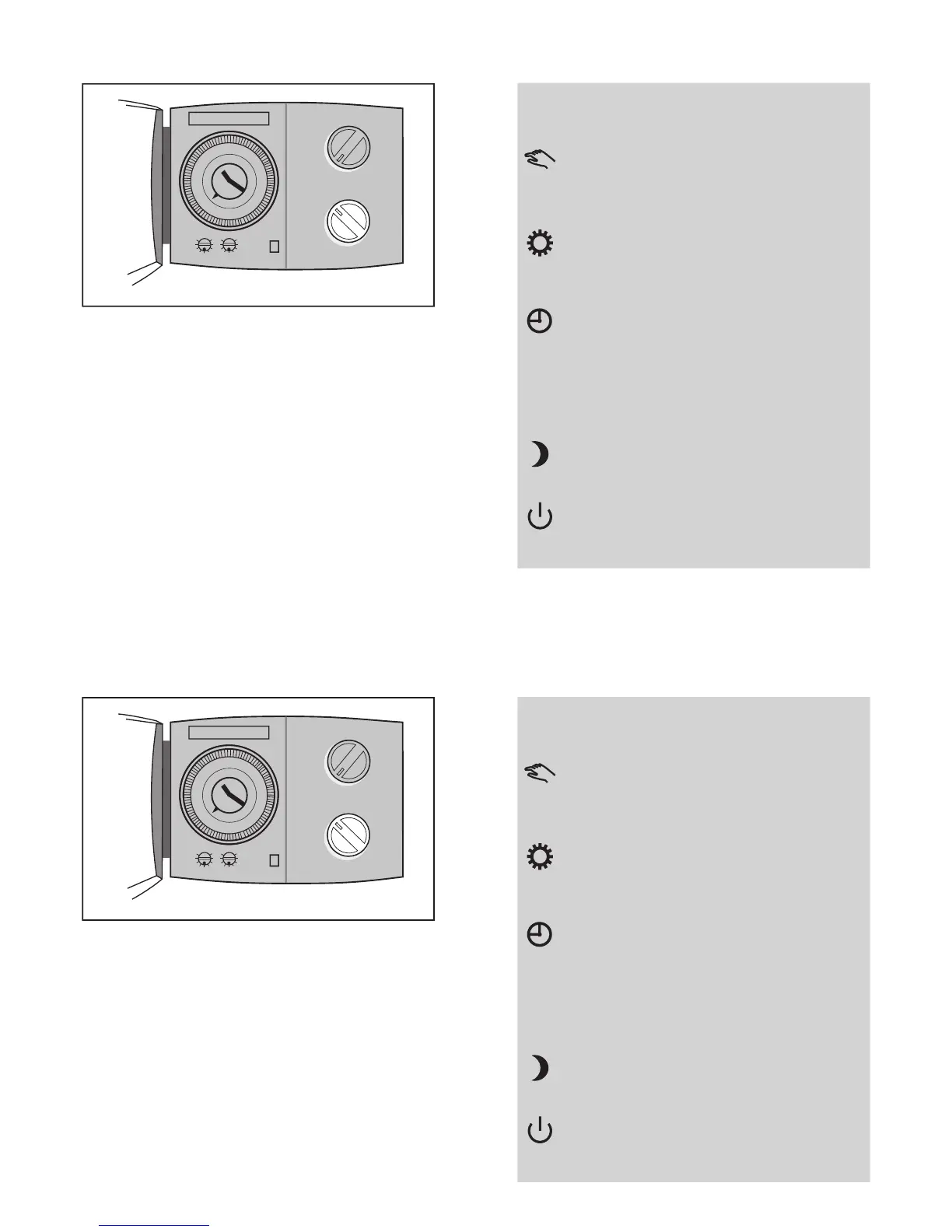

What do the symbols mean?
Controller mode
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
12
3
6
9
Manual operation.
Used only at maintenance
and service.
Note!
The system protection against frost is
switched off when this mode is selected.
Constant comfort temperature.
The day plan
is not in operation. Used when ex tend ed pe ri ods
of comfort temperature are desired, i.e. a day off
work or a late-night party.
Automatic operation.
This is the normal mode.
•
If a clock is mounted:
The tem per a ture is
con trol led according to your day plan with
automatic changeover between comfort and
re duced temperatures.
•
If there is no clock:
The temperature is
controlled at a comfort temperature.
Constantly reduced temperature.
The day plan
is not in operation. Use this mode when you are
away on holiday, etc.
Standby.
Heating is stopped. The system is
protected against frost. Use this mode during the
summer.
What do the symbols mean?
Controller mode
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
1
8
1
2
6
12
3
6
9
Manual operation.
Used only at maintenance
and service.
Note!
The system protection against frost is
switched off when this mode is selected.
Constant comfort temperature.
The day plan
is not in operation. Used when ex tend ed pe ri ods
of comfort temperature are desired, i.e. a day off
work or a late-night party.
Automatic operation.
This is the normal mode.
•
If a clock is mounted:
The tem per a ture is
con trol led according to your day plan with
automatic changeover between comfort and
re duced temperatures.
•
If there is no clock:
The temperature is
controlled at a comfort temperature.
Constantly reduced temperature.
The day plan
is not in operation. Use this mode when you are
away on holiday, etc.
Standby.
Heating is stopped. The system is
protected against frost. Use this mode during the
summer.
