26
26
27
27

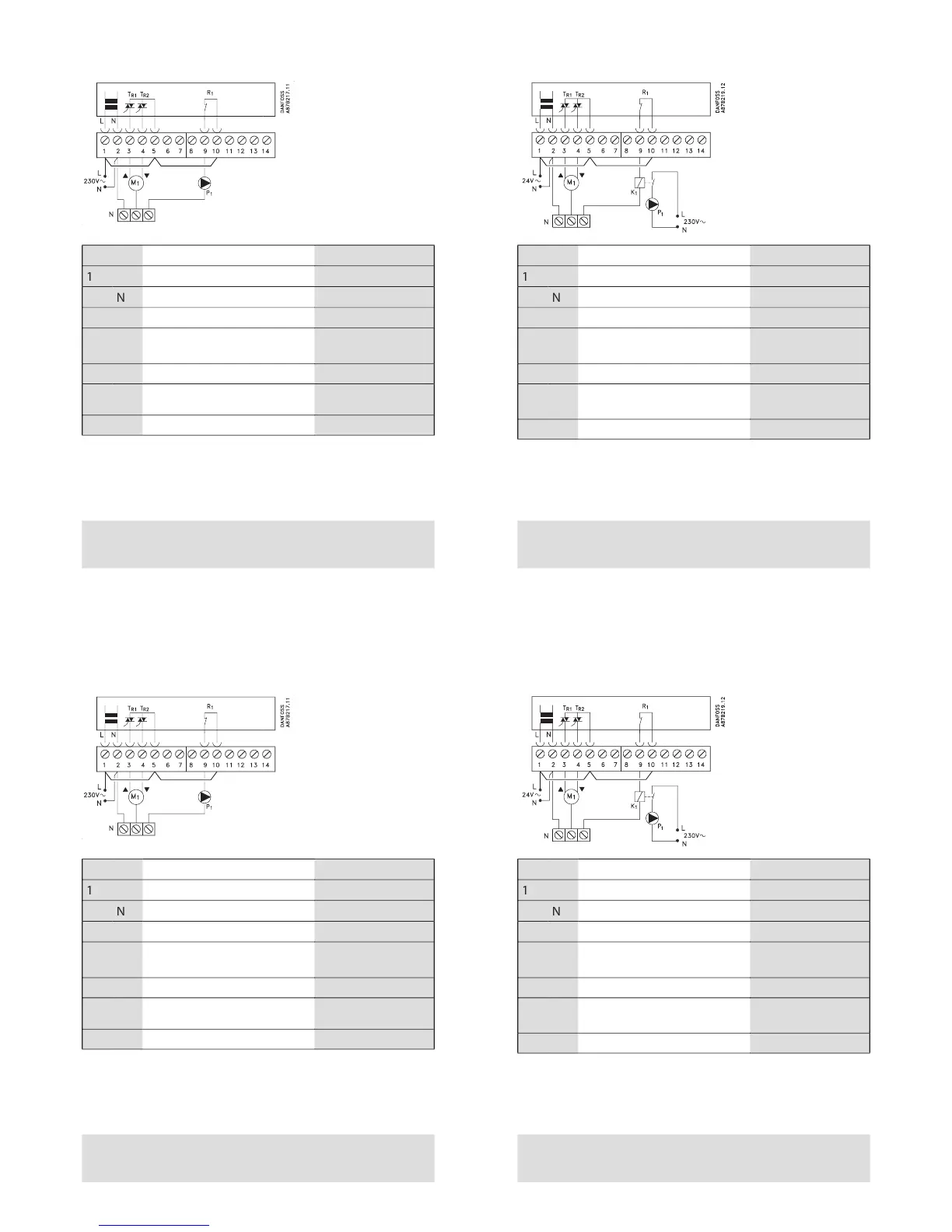

Electrical connections 230 V a.c.
Establish these jumpers:
Jumper from 1 to 5
Jumper from 5 to 10
Jumper from 2 to common N-terminal
Electrical connections: Max. 2 x 1.5 mm2 cables can be inserted
in each screw terminal (max. cable length: 50 m).
Important: Wrong connections cause damaged TRIAC outlets.
Electrical connections 24 V a.c.
Terminal
Description
Max. load
1
L
Voltage supply 230 V a.c.
2
N
Voltage supply 230 V a.c.
3
M1
Gear motor - open 0.2 VA 230 V a.c.
4
M1
Gear motor - close
alt.: ABV thermo actuator
0.2 VA 230 V a.c.
5
230 V a.c. supply for M1
9
P1
Circulation pump for
heating circuit
4(2)A 230 V a.c.
10
230 V a.c. supply for P1
Terminal
Description
Max. load
1
L
Voltage supply 24 V a.c.
2
N
Voltage supply 24 V a.c.
3
M1
Gear motor - open 1A 24 V a.c.
4
M1
Gear motor - close
alt.: ABV thermo actuator
1A 24 V a.c.
5
24 V a.c. supply for M1
9
K1
Relay for circulation
pump
4(2) A 24 V a.c.
10
24 V a.c. supply for K1
Establish these jumpers:
Jumper from 1 to 5
Jumper from 5 to 10
Jumper from 2 to common N-terminal
Electrical connections: Max. 2 x 1.5 mm2 cables can be inserted
in each screw terminal (max. cable length: 50 m).
Important: Wrong connections cause damaged TRIAC outlets.
Electrical connections 230 V a.c.
Establish these jumpers:
Jumper from 1 to 5
Jumper from 5 to 10
Jumper from 2 to common N-terminal
Electrical connections: Max. 2 x 1.5 mm2 cables can be inserted
in each screw terminal (max. cable length: 50 m).
Important: Wrong connections cause damaged TRIAC outlets.
Electrical connections 24 V a.c.
Terminal
Description
Max. load
1
L
Voltage supply 230 V a.c.
2
N
Voltage supply 230 V a.c.
3
M1
Gear motor - open 0.2 VA 230 V a.c.
4
M1
Gear motor - close
alt.: ABV thermo actuator
0.2 VA 230 V a.c.
5
230 V a.c. supply for M1
9
P1
Circulation pump for
heating circuit
4(2)A 230 V a.c.
10
230 V a.c. supply for P1
Terminal
Description
Max. load
1
L
Voltage supply 24 V a.c.
2
N
Voltage supply 24 V a.c.
3
M1
Gear motor - open 1A 24 V a.c.
4
M1
Gear motor - close
alt.: ABV thermo actuator
1A 24 V a.c.
5
24 V a.c. supply for M1
9
K1
Relay for circulation
pump
4(2) A 24 V a.c.
10
24 V a.c. supply for K1
Establish these jumpers:
Jumper from 1 to 5
Jumper from 5 to 10
Jumper from 2 to common N-terminal
Electrical connections: Max. 2 x 1.5 mm2 cables can be inserted
in each screw terminal (max. cable length: 50 m).
Important: Wrong connections cause damaged TRIAC outlets.
