It is important that the sensors are mounted in the correct
position in your heating system.
Outdoor temperature sensor
(ESMT type)
The outdoor sensor should be mounted on the north side
of the building where it is less likely to be exposed to direct
sun shine. It should not be placed close to doors or windows.
Flow temperature sensor
(ESMU, ESM-11 or ESMC types)
Place the sensor max. 15 cm from the mixing point. In systems
with heat exchanger, Danfoss recommends the ESMU-type
to be inserted into the exchanger fl ow outlet. Make sure
that the surface of the pipe is clean where the sen sor is to be
Placing the tem per a ture sensor types
Room temperature sensor
(ESM-10, ECA 60 and 61 remote controls)

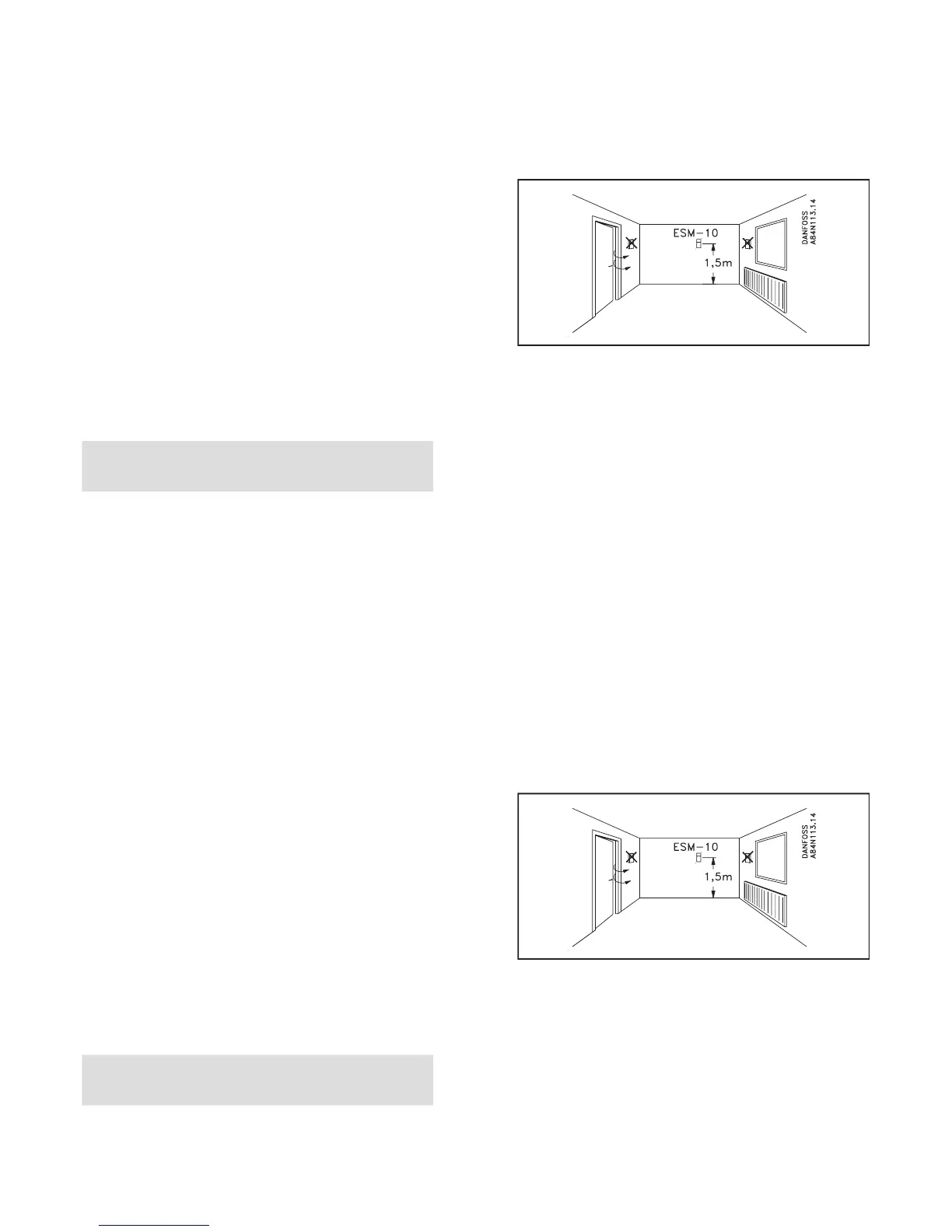

Place the room sensor in the room where the
temperature is to be controlled. Do not place it on outside
walls or close to radiators, windows or doors.
Valid for ESM-11: Do not move the sensor after it has been
fastened in order to avoid damage to the sensor element.
It is important that the sensors are mounted in the correct
position in your heating system.
Outdoor temperature sensor
(ESMT type)
The outdoor sensor should be mounted on the north side
of the building where it is less likely to be exposed to direct
sun shine. It should not be placed close to doors or windows.
Flow temperature sensor
(ESMU, ESM-11 or ESMC types)
Place the sensor max. 15 cm from the mixing point. In systems
with heat exchanger, Danfoss recommends the ESMU-type
to be inserted into the exchanger fl ow outlet. Make sure
that the surface of the pipe is clean where the sen sor is to be
Placing the tem per a ture sensor types
Room temperature sensor
(ESM-10, ECA 60 and 61 remote controls)
Place the room sensor in the room where the
temperature is to be controlled. Do not place it on outside
walls or close to radiators, windows or doors.
Valid for ESM-11: Do not move the sensor after it has been
fastened in order to avoid damage to the sensor element.
