User manual ERC 113 refrigeration controller
Software tool/Gateway
Docking station
Examples
Manual operation with
buttons (Direct Access)
The controller can be controlled in three ways:
Using "Software tool", the Danfoss Docking
Station or manually by means of the buttons on
the front panel.
"Software tool" is licenced Danfoss software
offering easy parameter set up via a USB gateway.
This software is supplied separately;
for technical literature and further information,
please contact your local Danfoss representative.
Docking station is supplied separately.
For further information, please contact your local
Danfoss representative.
Changing the desiredtemperature set point:
1. The display shows the current temperature.
2. Press "up/down" to access set point.
3. Press "up/down" to adjust set point.
After 30 seconds, the display automatically
reverts to showing the current temperature
Turning ON/OFF the ECO function:
1. Press "ECO".
The green "ECO" symbol is lit when in "ECO"
mode.
Turn ON/Off the light:
1. Press the "Light" button.
Acknowledging alarms:
1. Display Flashing the alarm message.
2. Press any button to acknowlege.
Password protection:
1. Press "up/down" and hold 5 seconds to access
the menu.
2. The display shows "PAS".
3. Press "OK".
4. Press "Up/Down" to the code.
5. Press "OK".
Password protection on three levels:
1. Level 1: "shop" (daily use by shop personnel).
2. Level 2: "ser" (service technician).
3. Level 3: "OEM" (OEM programming).

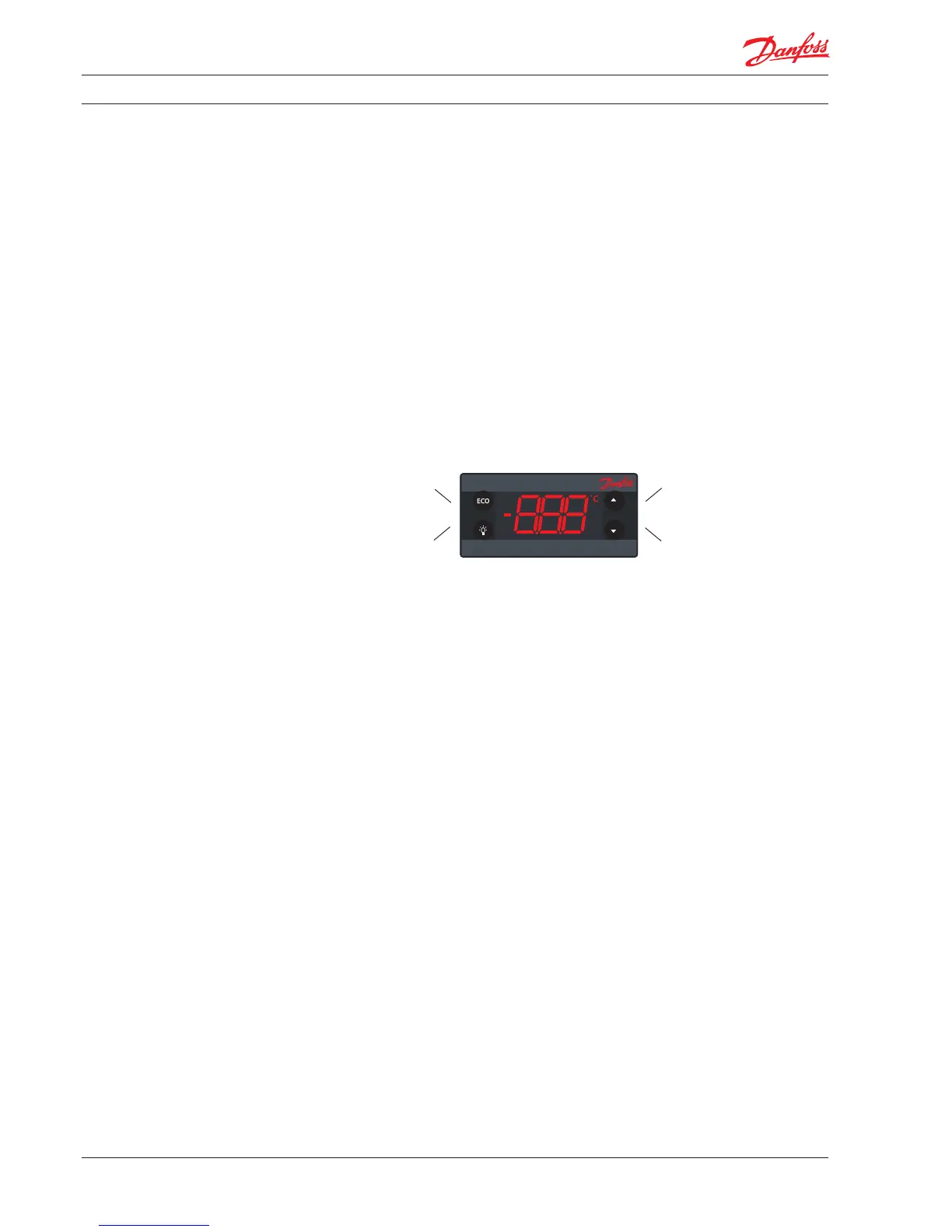

1 Press: variable direct
function, e.g. “ECO”/”Night mode”
Sub function: back
1 Press: variable direct
function, e.g. light
Sub function: “OK”
1 Press: temperature set point
Sub function: “up”
1 Press: temperature set point
Sub function: “down”
Changing a parameter
Some parameters may be hidden to you.
When scrolling through menus, the parameters
available will have been pre-determined using
"Software tool".
Your access level will determine which
parameters you can view and edit:
1. Press "up/down" and hold 5 seconds to access
the menu.
2. First parameter group is shown "tHE".
3. Press "up/down" to find the desired group.
4. Press "OK".
5. First parameter is shown.
6. Press "up/down" to find the desired
parameter.
7. Press "OK".
8. Press "up/down" to find the desired setting.
9. Press "OK".
After 30 seconds, the display automatically
reverts to showing the current temperature.
Or press 2 x "Back".
NOTE:
Incorrect parameter settings can lead
to inadequate cooling, excessive energy
consumption, unnecessary alarms and in the case
of temperature-sensitive food storage, breaches in
food hygiene principles and regulations.
Only a trained operator should make changes to
parameters.
Operation
6
DKRCC.ES.RL0.F5.02 Produced by Danfoss A/S (ADAP-KOOL®) | 2016-07
