1.4.2 Removing the IGBT Output Busbars
To remove the IGBT output busbars, use the following procedure. Refer to Illustration 1.4.
1. Remove 3 retaining screws (M10), 1 from the lower end of each of the 3 IGBT output busbars.
2. Remove 3 retaining nuts (M10), 1 from the upper end of each of the 3 IGBT output busbars.
3. Lift the 3 busbars from the unit.

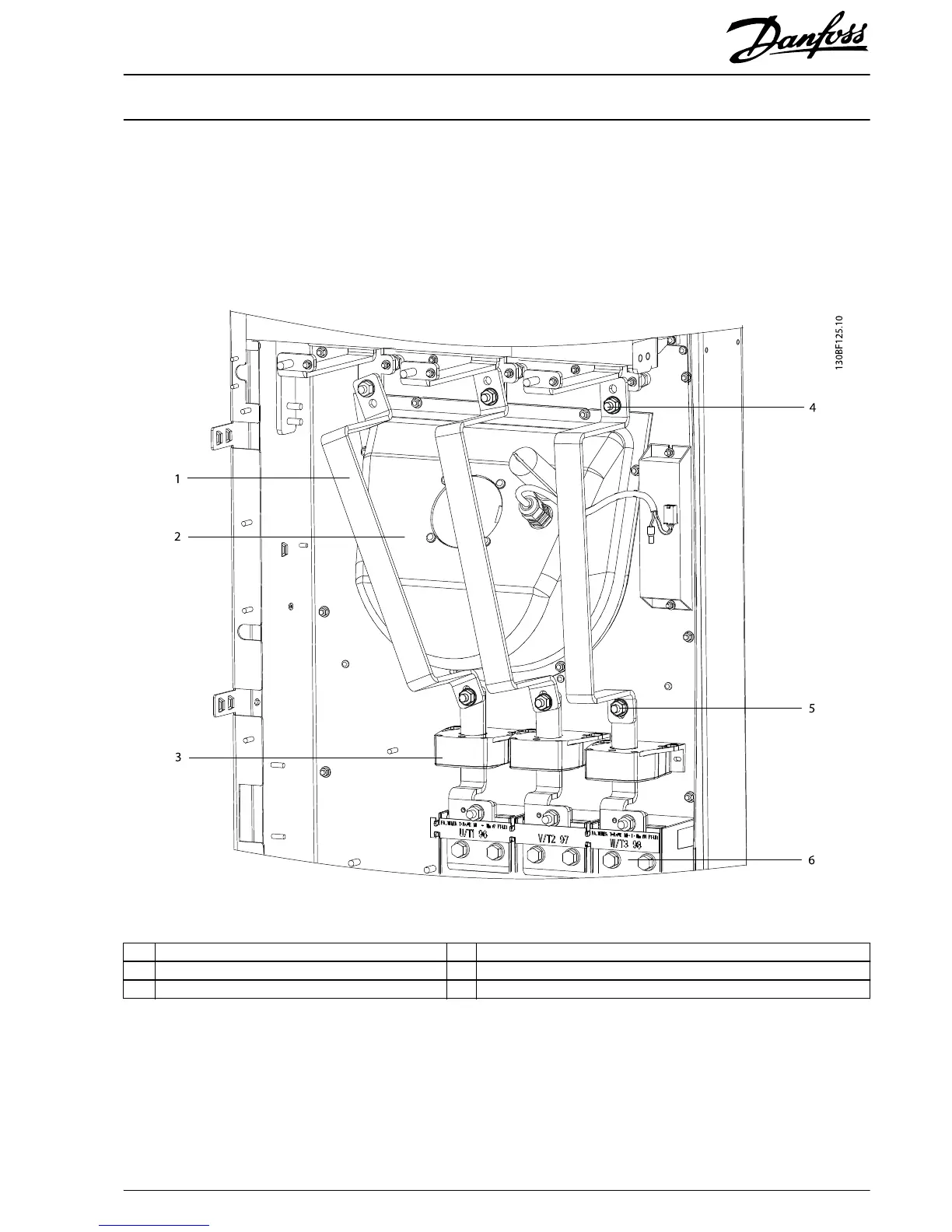

1 IGBT output busbar 4 Upper retaining nut (M10)
2 Fan housing 5 Lower retaining screw (M10)
3Current sensor 6Output terminal
Illustration 1.4 IGBT Output Busbars
Installation Instructions
500 A Current Sensor Kit for
E1/E2 Enclosure Sizes
VLT
®
FC 102, FC 103, FC 202, FC 302
MI92Q102 Danfoss A/S © 10/2016 All rights reserved. 5
