Danfoss Icon2 User Manual

Service Manual Danfoss Icon2™
© Copyright Danfoss Climate Solutions | 2023.01 | 65
AB432956914381en-010101

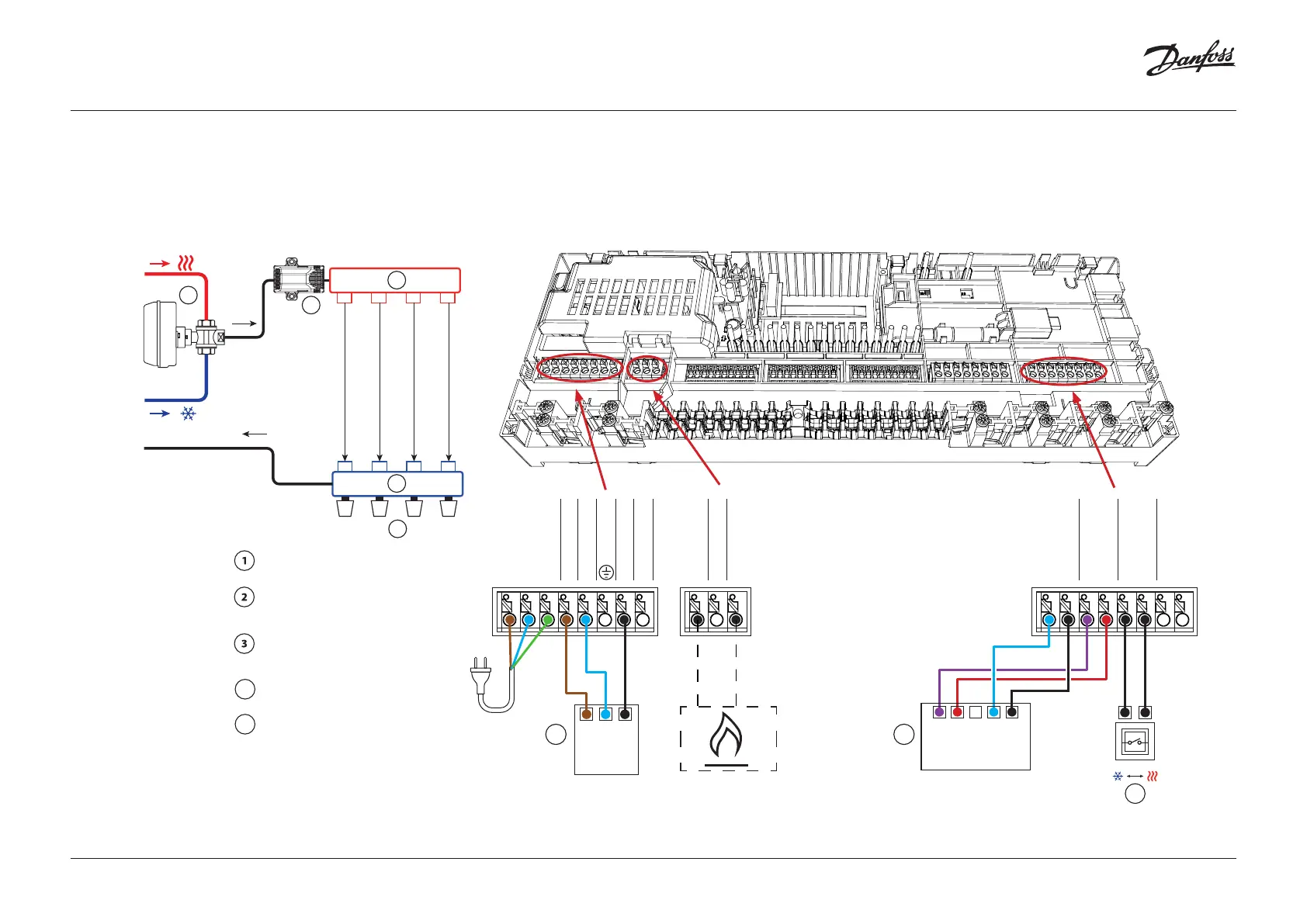

PWR3 24V DC EXT Input 1 EXT Input 2 PT1000
Dew Point Sensor
NO
COM
NC
GND
V+
4
M M M M
2
2
3
1
4
1 set Danfoss Manifold
(types FHF or BasicPlus or SSM)
Thermal actuators, 230V / 24V* TWA-A
* Requires TWA conversion module
AMZ 113 230V
4
Dew Point Sensor CF-DS
External switch for manual changeover
between heating and cooling
5
5
L (PWR1) N (PWR1) L (PWR2) N (PWR2) NC (RELAY) NO (RELAY) COM (RELAY)
Mains
Power
1
AMZ 113
3 1 2
(PWR1)
App 16
