User Guide | Intelligent Purging System (IPS 8) Ammonia
15 | BC437120335698en-000101 © Danfoss | Climate Solutions | 2023.07
Terminal numbers:
1 and 2: ICFD valve (DO6)
3 and 4: Purge valve no. 1 (DO7)
5 and 6: Purge valve no. 2 (DO8)
7 and 8: Purge valve no. 3 (DO9)
9 and 10: Purge valve no. 4 (DO10)
11 and 12: Purge valve no. 5 (DO11)
13 and 14: Purge valve no. 6 (DO12)
15 and 16: Purge valve no. 7 (DO13)
17 and 18: Purge valve no. 8 (DO14)
19 and 20: Bubbler (DO15)

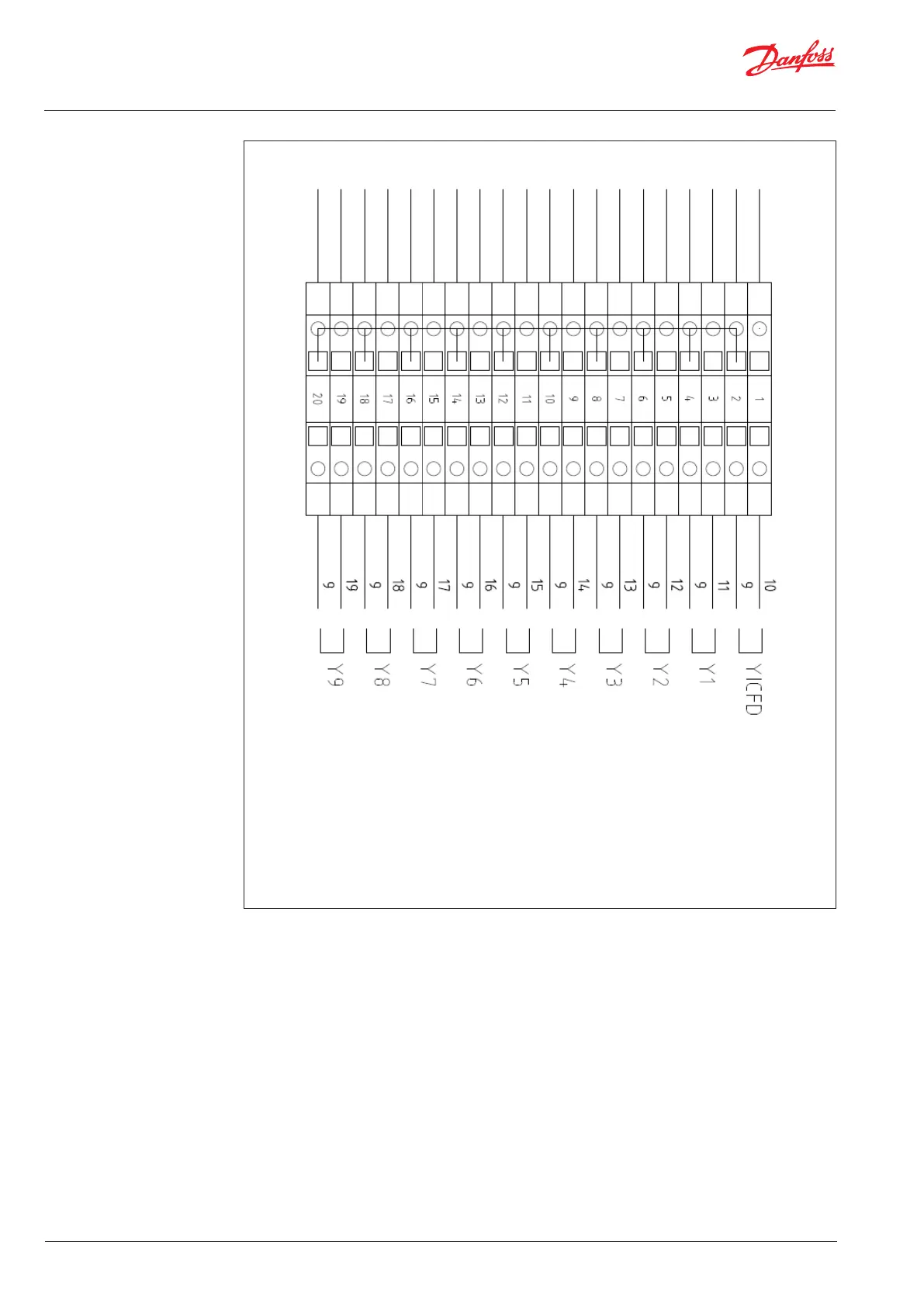

Fig. 8b XT2 terminal block
XT2 terminal block
for eld connected solenoids
