Danfoss IPS 8 - Connection locations

User Guide | Intelligent Purging System (IPS 8) Ammonia
9 | BC437120335698en-000101 © Danfoss | Climate Solutions | 2023.07

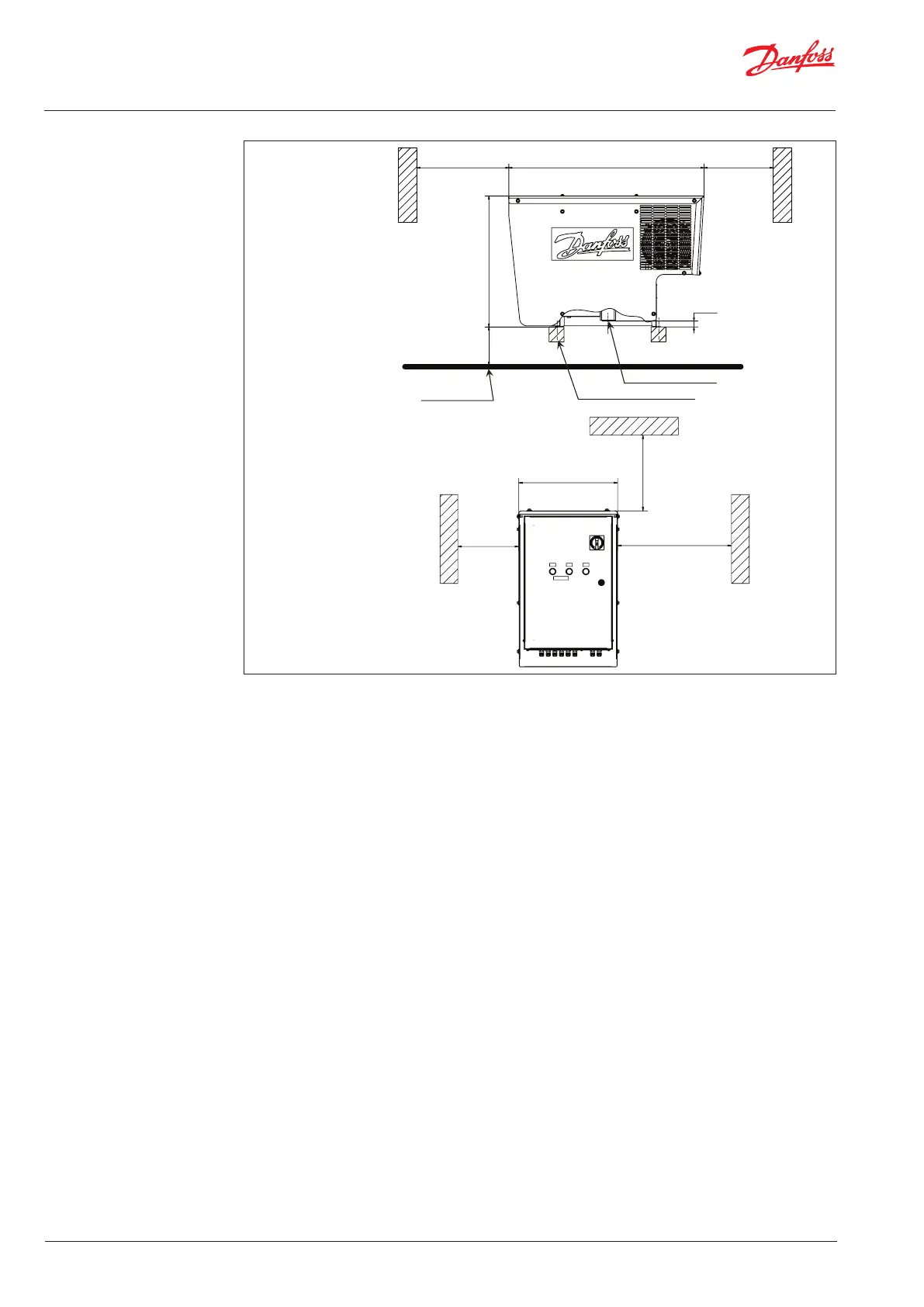

Fig. 3 Installation dimensions
*
Flange for R717 access
Support for 100 kg/ 220 lbs
Service platform
* F
or easy access to the main switch
and ser
vicing, the Purger unit shall be
installed between 0,05 to 1,1 m (2 to 43 in)
above ser
vice platform level.
Min. 900 mm 1051 mm Min. 500 mm
32 mm
446 mm
Min. 300 mm Min. 900 mm
Min. 300 mm
703
* For easy access to the main switch
and servicing, the Purger unit shall be
installed between 0,05 to 1,1 m (2 to 43 in)
above service platform level.
