Installation Guide Danfoss Link™ DBR Installation Guide Danfoss Link™ DBR
Congure settings of the Danfoss Link
TM
DBR
Setpoint Limits
Congure the Minimum
Temperature and Maximum
temperature for Return Line
setpoint temperatures for
Danfoss Link™ DBR here.
(Note: You can only set these
setpoint limits within the
Dynamic mode.)
The recommended Maximum Temperature is below 54 degrees to
ensure maximum eciency with condensing boilers.
If Maximum Temperature is set too low, there is a risk of not reaching
the desired temperature.
NL
UK
Green LED OFF Relay OFF/Standby
Green LED ON Relay ON/Heating
Green LED fast ash Adding or link test
Green LED short ash Ready for adding
Red LED slow ash Adding not OK
Link test not OK
Safe State Active
Status indicator

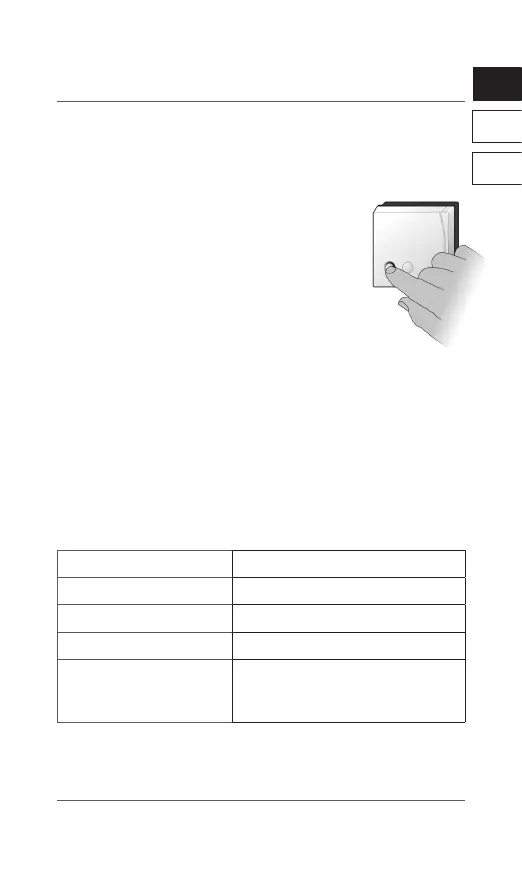

Turn o the power to the device, then press and hold the install
button in front of the device for approx. 5 sec. while the power
is switched on again. The button must be held until LED gives a
red ash.
Factory reset
Once the Danfoss Link™ DBR and all other devices in the system
have been registered and the Danfoss Link™ CC is placed in
its nal position, perform a network test (see
separate Danfoss Link™ CC manual).
Note: If the connection to the Danfoss Link™ CC is
lost for more than 1½ hour, the Danfoss Link™
DBR will go into safety mode. In this mode the
boiler will be turned ON continuously.
Perform network test
