Voltage application range

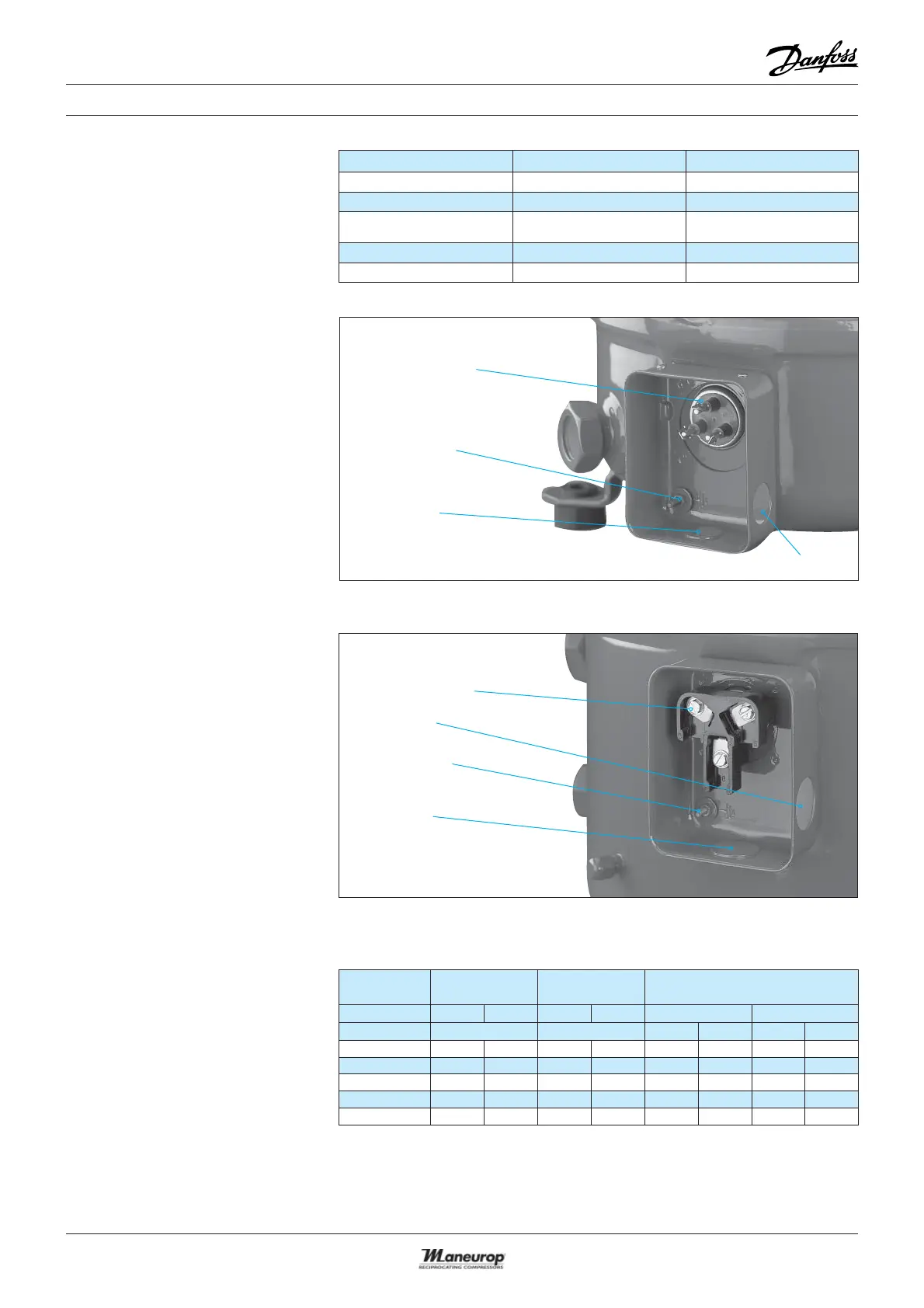

ELECTRICAL CONNECTIONS AND WIRING
Electrical connections
Motor voltage code Nominal voltage Voltage application range
1 208-230 V / 1 / 60 Hz 187 – 253 V
3 200-230 V / 3 / 60 Hz 180 – 253 V
4
380-400 V / 3 / 50 Hz
460 V / 3 / 60 Hz
340 – 440 V (50 Hz)
414 – 506 V (60Hz)
5 230 V / 1 / 50 Hz 207 – 253 V
9 380 V / 3 / 60 Hz 342 – 418 V
Models: NTZ215 - NTZ271 - NTZ136-1
IP rating: 54 (with cable gland)
Screw
10-32 UNF x 9,5
Earth M4-12
Knock-out
Ø 29 mm
Ø 29 mm
Models: NTZ048 - NTZ068 - NTZ096 - NTZ108 - NTZ136 (except NTZ136-1)
Spade connectors
1/4” AMP-AWE
Earth M4-12
Knock-out
Ø 21 mm
Ø 21 mm
IP rating: 55 (with cable gland)
LRA - Locked Rotor
Current (A)
MCC - Maximum
Continuous Current (A)
Winding resistance (Ω)
( ± 7 % at 20° C)
Motor Code 1515 1 5
Winding run start run start
NTZ048 43.7 37 13.2 11 1.32 4.16 1.62 3.95
NTZ068 72 53 21 17 0.94 2.01 1.05 3.19
NTZ096 97 31 0.45 1.84
NTZ108 97 33 0.45 1.84
NTZ136 140 41 0.36 1.73
Single phase electrical
characteristics
