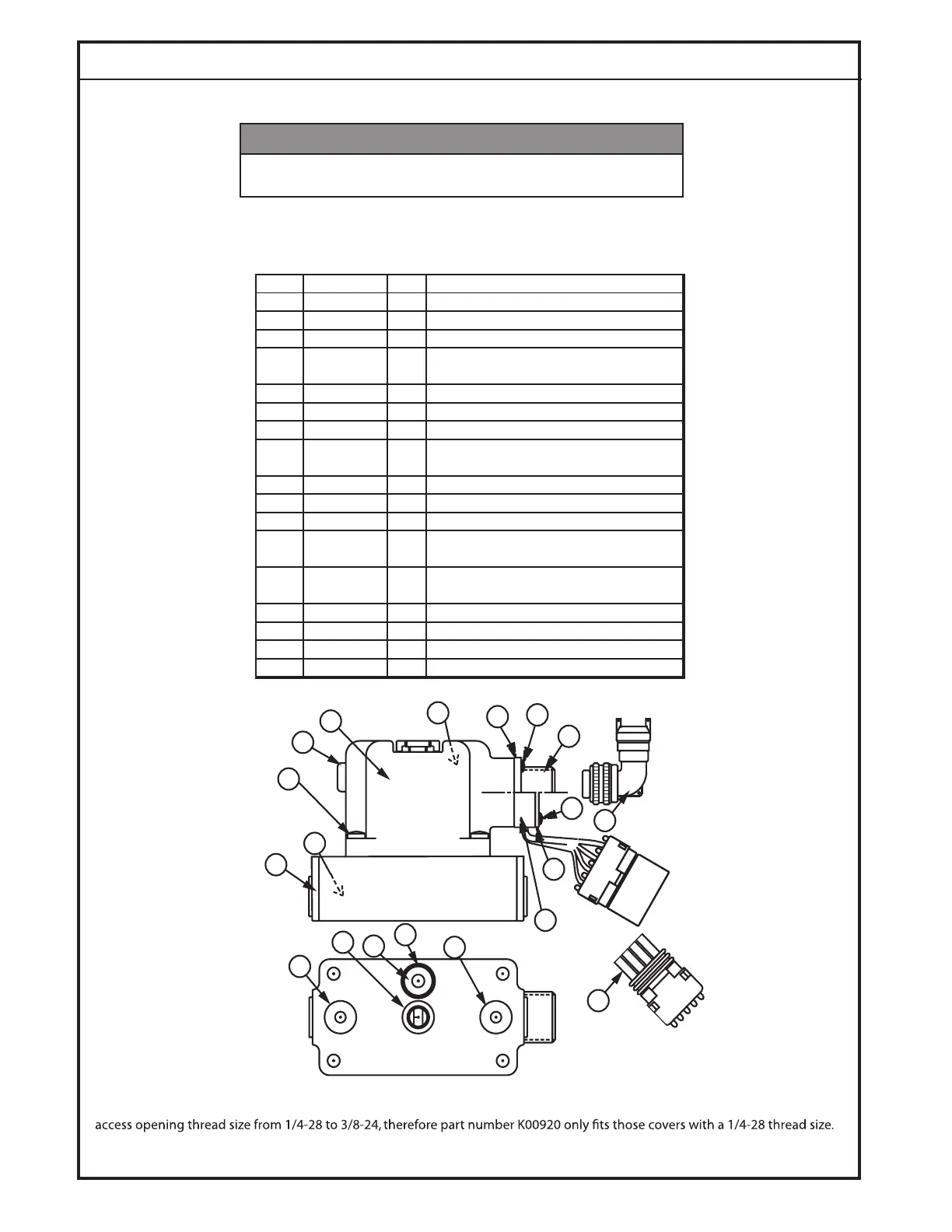

SERVICE PARTS
Service Parts List.
3001B
WARNING
Note: The Deutsch electrical connectors are not shown. See Item 4, a change was made in January 2000 that increased the null
See Item 5, the preferred part number K28475 includes the cover, gaskets, null access screw, and all the cover seals.
Regarding Service Parts List, Item 3:
DO NOT Remove Cover Screws unless replacing cover.
ITEM P/N QTY DESCRIPTION
1 K01291 2 SAE-6 Plugs
2 K07067 4 PCP Mounting Screws
3 K02264 4 PCP Cover Screws
4 K26275 1 3/8-24 PCP Null Access Screw
K00920 1 1/4-28 PCP Null Access Screw
5 K28475 1 PCP Cover Kit
6 K21436 1 Silicone Oil Kit 4000 cs
7 K04790 1 Connector O-ring
8 K08687 4 Connector Screw for MS
9 K01314 1 Connector MS
10 K08688 4 Connector Screw for Packard
11 K08106 1 Mating Electrical Connector MS
12 K08014 1 Feed Through Assy Cover Plate
13 K07533 1 Feed Through Assy 4-pin Packard W-P
K24223 1 Feed Through Assy 4-pin Deutsch
14 K03384 1 Mating Electrical Packard W-P 4-pin
K23511 1 Mating Electrical Deutsch 4-pin
15 K00829 2 O-ring Control Port
16 K00830 1 O-ring Return Port
17 K08573 1 Filter Assy with O-rings
18 K08493 1 O-ring Pressure Port
© Danfoss, 2013
K07116 • Rev AB • September 2013
