2.

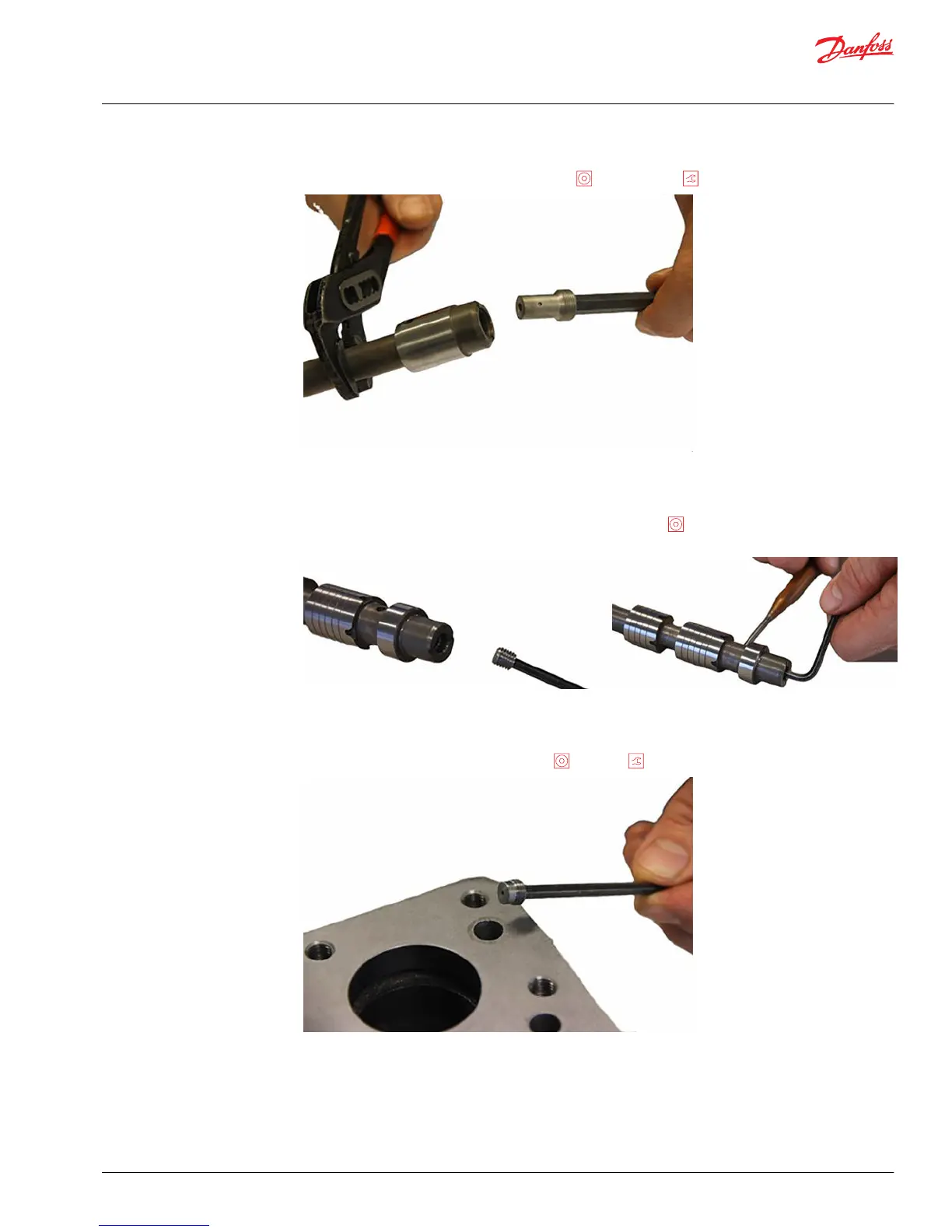

Screw in throttle/check valve (4) using a 8 mm Hex key and a multigrip pliers, 10 ± 0.3 Nm.
Assembling directional spool
Screw in orifices, 2x (26) in directional spool (25) using a 4 mm Hex key and mandrel for holding
the spool, 5 ± 1 N·m [45 ± 10 lbf·in].
Installing orifice and throttle check valve
1.
Screw orifice (36) in housing using a 4 mm Hex key, 5 ± 1 N·m [45 ± 10 lbf·in].
Service Manual
OSQA/OSQB
Assembly
©
