OSQ spare parts list
Spare parts list
Spare parts Code number Item
Seal kit NBR for OSQ 150F0278
20.11, 23.2, 37.3, 49.2, 57, 58 , 59, and
two aluminum washers for pilot relief
valve of OSQ from before week 43,
year 2004
Seal kit Viton for OSQ 11020933 57, 58 , 59
Pilot relief valve kit 11011038 21, 22, 22.2, 23, 23.2
Shock and suction valves complete, 140-160 bar 150F0281 20, 20.11
Shock and suction valves complete, 165-185 bar 150F0282 20, 20.11
Shock and suction valves complete, 200-220 bar 150F0286 20, 20.11
Shock and suction valves complete, 215-235 bar 150F0283 20, 20.11
Shock and suction valves complete, 230-250 bar 150F0284 20, 20.11
Shock and suction valves complete, 270-290 bar 150F0285 20, 20.11
Tools

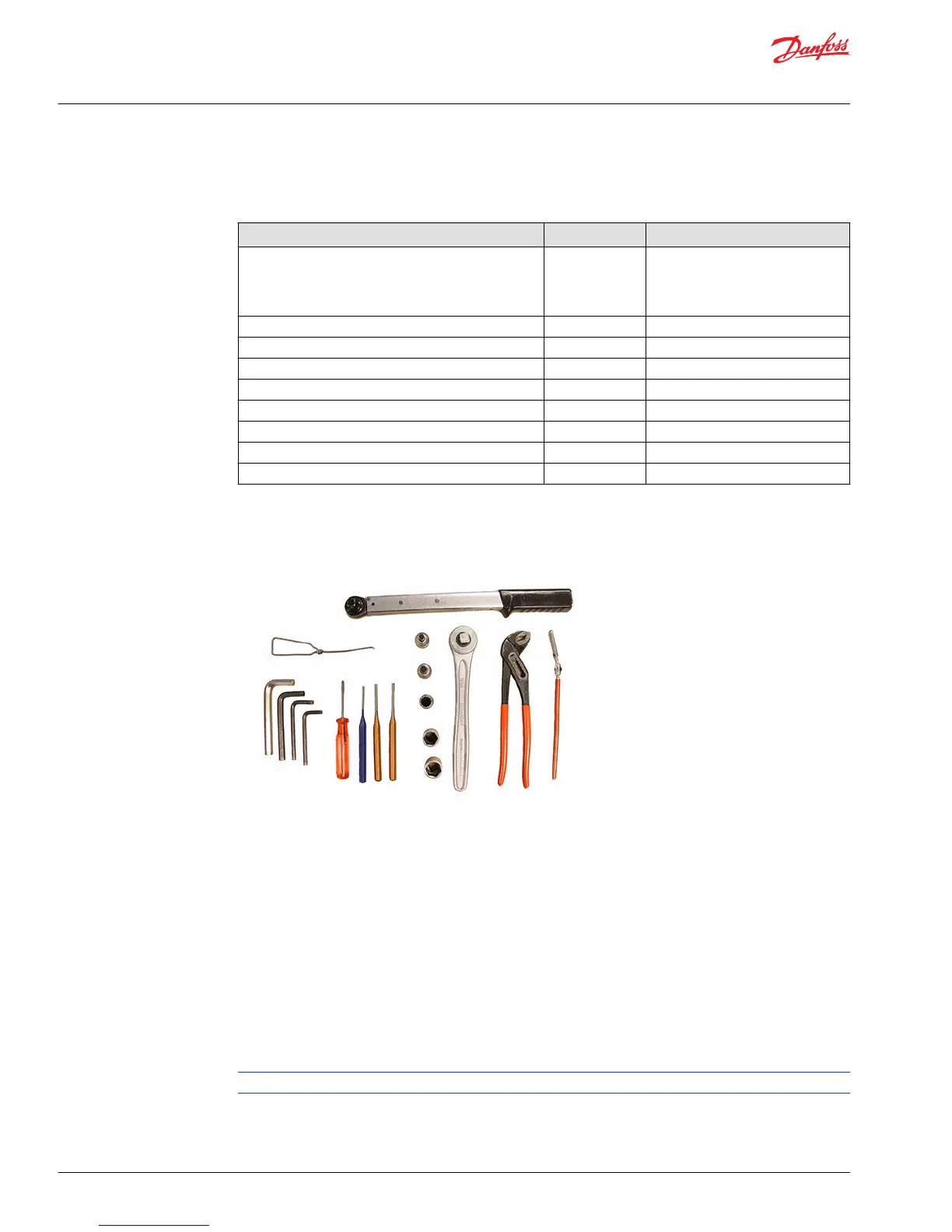

Tools needed for assembly / disassembly
•
Hexagon keys 4, 5, 6, 8, and 10 mm
•
Ratchet for socket spanners
•
Hexagon socket for external hexagon 6, 13, 17, and 19 mm
•
Hexagon socket for internal hexagon 8 and 10 mm
•
Multigrip pliers
•
Ring spanner 13 mm
•
Screwdrivers 3 and 10 mm
•
Steel mandrels 3, 5 and 8 mm
•
Torque wrench for 12 daNm [1060 lbf in]
•
Magnetic rod
•
Hook
These tools are not available from Danfoss.
