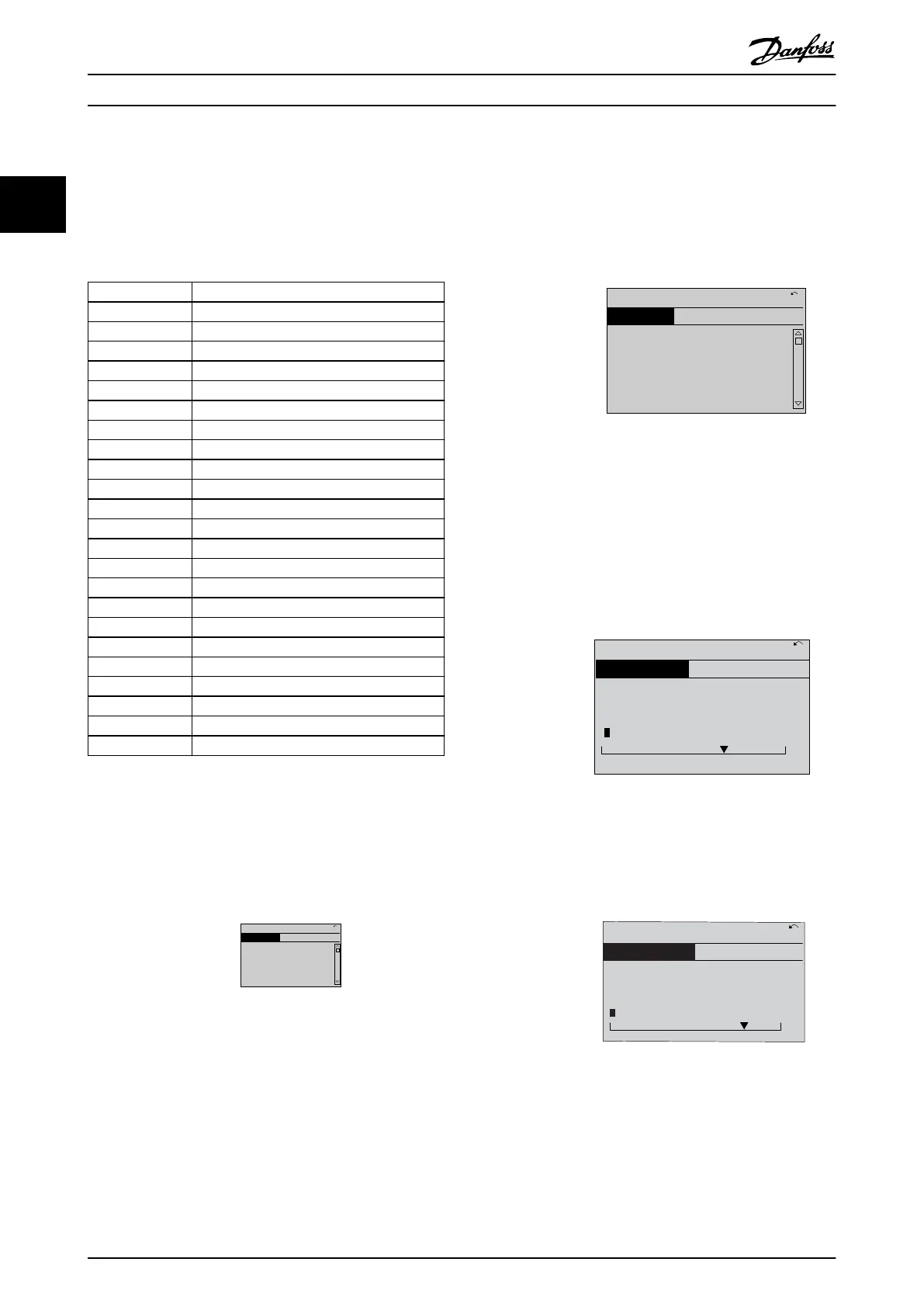

2.1.8 Parameter Selection
In the Main Menu mode, the parameters are divided into
groups. Press the navigation keys to select parameter
group.
The following parameter groups are accessible:
Group no. Parameter group
0 Operation/Display
1 Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
8 Comm. and Options
9 Probus
10 CAN Fieldbus
11 LonWorks
12 Ethernet IP / Modbus TCP / PROFINET
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed Loop
21 Ext. Closed Loop
22 Application Functions
23 Time-based Functions
25 Cascade Controller
26 Analog I/O Option MCB 109
Table 2.6 Parameter Selection
After selecting a parameter group, press the navigation
keys to select a parameter.
The middle section on the display shows the parameter
number and name, as well as the selected parameter
value.
130BP067.10
740RPM
0 -01 Language
[0] English
10.64A 1 [1]
0-0
*
Basic Settings
Illustration 2.28 Parameter Selection
2.1.9 Changing Data
Press [OK] to change the selected parameter. The
procedure for changing data depends on whether the
selected parameter represents a numerical data value or a
text value.
2.1.10
Changing a Text Value
If the selected parameter is a text value, change the text
value with the [
▲
] [
▼
] keys.
Place the cursor on the value that should be saved and
press [OK].
130BP068.10
740RPM
0 -01 Language
[0] English
10.64 A 1 [1]
0-0
*
Basic Settings
Illustration 2.29 Changing a Text Value
2.1.11 Changing a Group of Numeric Data
Values
If the selected parameter represents a numeric data value,
change the data value pressing the [
◀
] [
▶
] navigation keys,
as well as the [
▲
] [
▼
] navigation keys. Press [
◀
] [
▶
] keys to
move the cursor horizontally.
130BP069.10
1- 6*
113 RPM 1.78 A 1(1)
Load depen. setting
1 - 60 Low speed load
compensation
100%
Illustration 2.30 Changing a Group of Numeric Data Values
Press the [
▲
] [
▼
] keys to change the data value. [
▲
]
increases the data value, and [
▼
] decreases the data value.
Place the cursor on the value to save and press [OK].
130BP070.10
1 - 60 Low speed load
compensation
1 0%
Load depen. setting 1- 6*
729RPM 6.21A 1(1)
6
Illustration 2.31 Changing a Group of Numeric Data Values
How to Programme
VLT
®
HVAC Drive FC 102
22 Danfoss A/S © 03/2015 All rights reserved. MG11CE02
