5.6.5 E6h Wiring Harness
e30bu180.10
-XDL.1
-XD4.1
-XD11.3
-XD4.4
-XD4.3
1
2
3
4
5
8
L1R
T
R
S
L3T
L2S
6
7

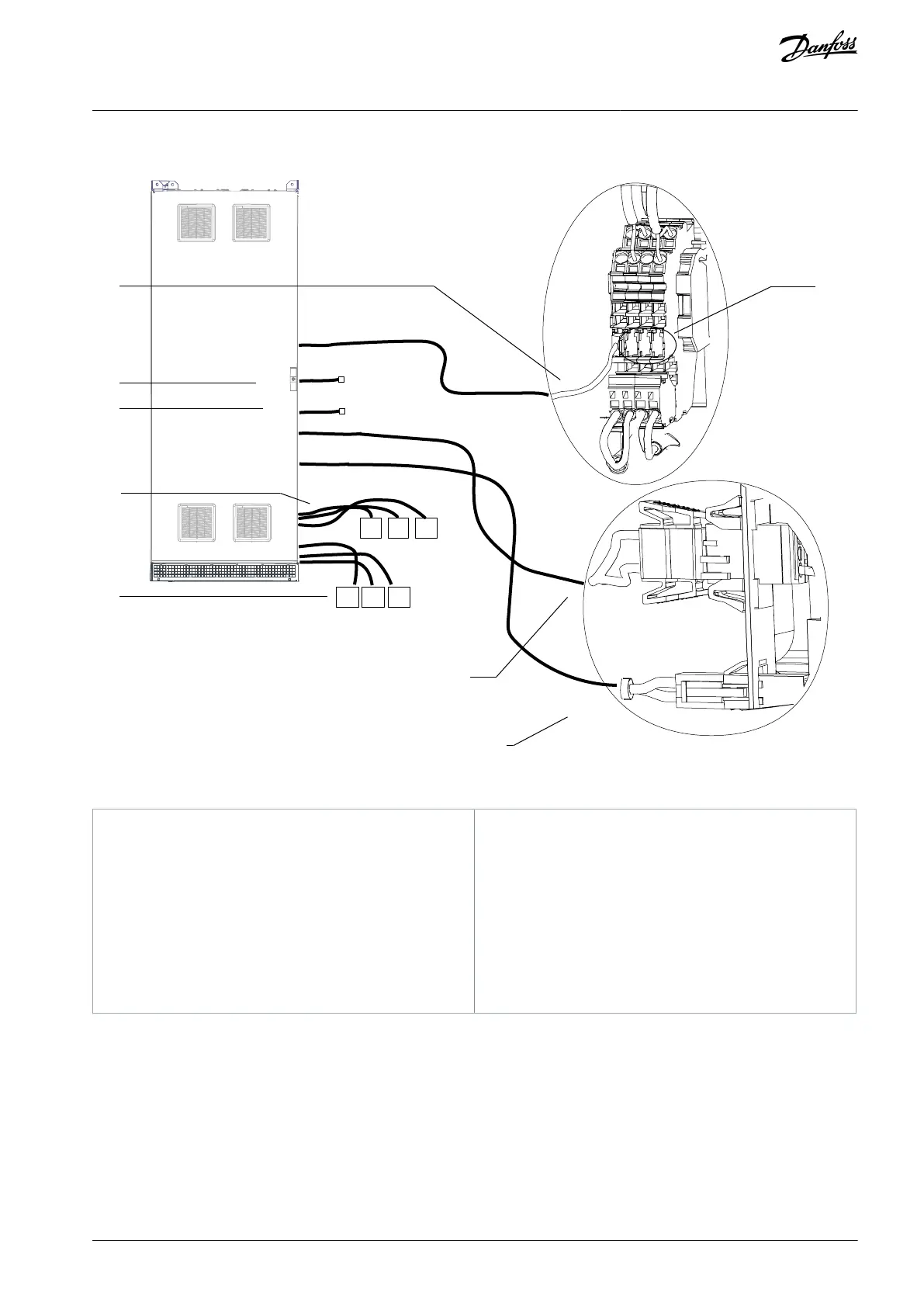

Illustration 41: Split Shipment Electrical Connections (Input Filter Cabinet)
1
Thermal protection wiring harness to input power
options cabinet
2
PHF contactor 1 supply harness to input power op-
tions cabinet (only with PHF option)
3
PHF contactor 2 supply harness to input power op-
tions cabinet (only with PHF option)
4
Input terminal cables (R/S/T) to mains terminals
(R/S/T) in the input power options cabinet
5
Output terminal cables (L1R/L2S/L3T) to mains ter-
minals (R/S/T) in the drives cabinet
6
DC-link harness to fan supply in the input power op-
tions cabinet
7
Cabinet heater supply harness to input power op-
tions cabinet
8
Additional terminal connections
AQ262141314214en-000301 / 130R0880 | 75Danfoss A/S © 2021.11
Electrical Installation
VLT® HVAC Drive FC 102
Operating Guide
