Danfoss Heating
3
GB
Installation Instructions

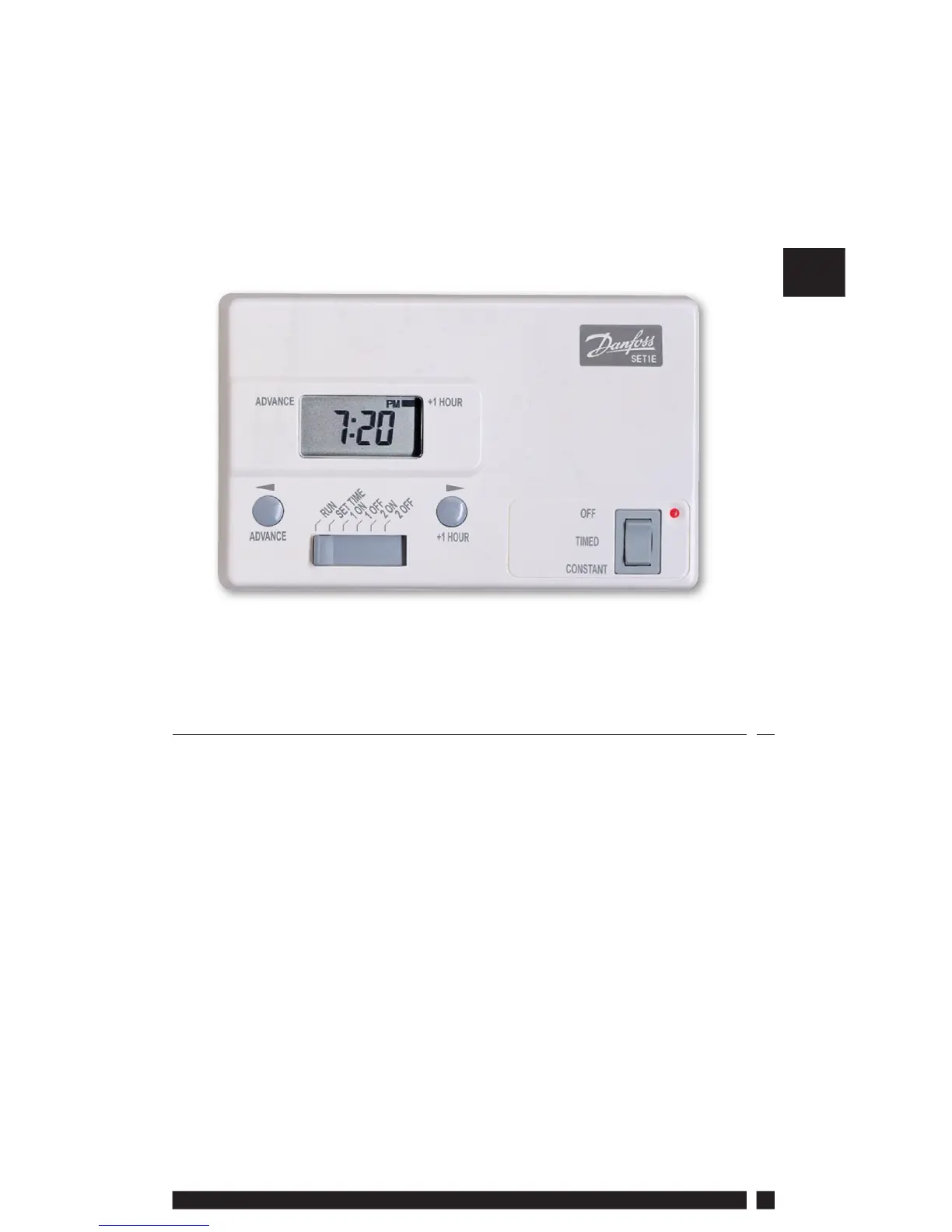

SET1E
Electronic Timeswitch for Heating and Hot Water
Index
1.0 Installation Guide .....................................................................................4
2.0 System Overview ....................................................................................... 4
3.0 Installation ...................................................................................................4
3.1 Wiring .....................................................................................................6
3.2 Typical gravity DHW with pumped central heating ..............7
3.3 Typical control of pump for central heating in a
solid fuel system .................................................................................8
3.4 Typical control heating function only with boiler
and pump .............................................................................................9
3.5 Typical control of a motorised zone valve
requiring an open and close signal .......................................... 10
3.6 Typical control of heating when used with
combination type boilers............................................................. 11
4.0 Replacement ............................................................................................. 11
