1.0 Basics
1.1 Description of function
The regulator controls the heat transmitted from the solar collector
to the utility water tank.
The pump of the solar heat installation is controlled automatically via
temperature sensors.

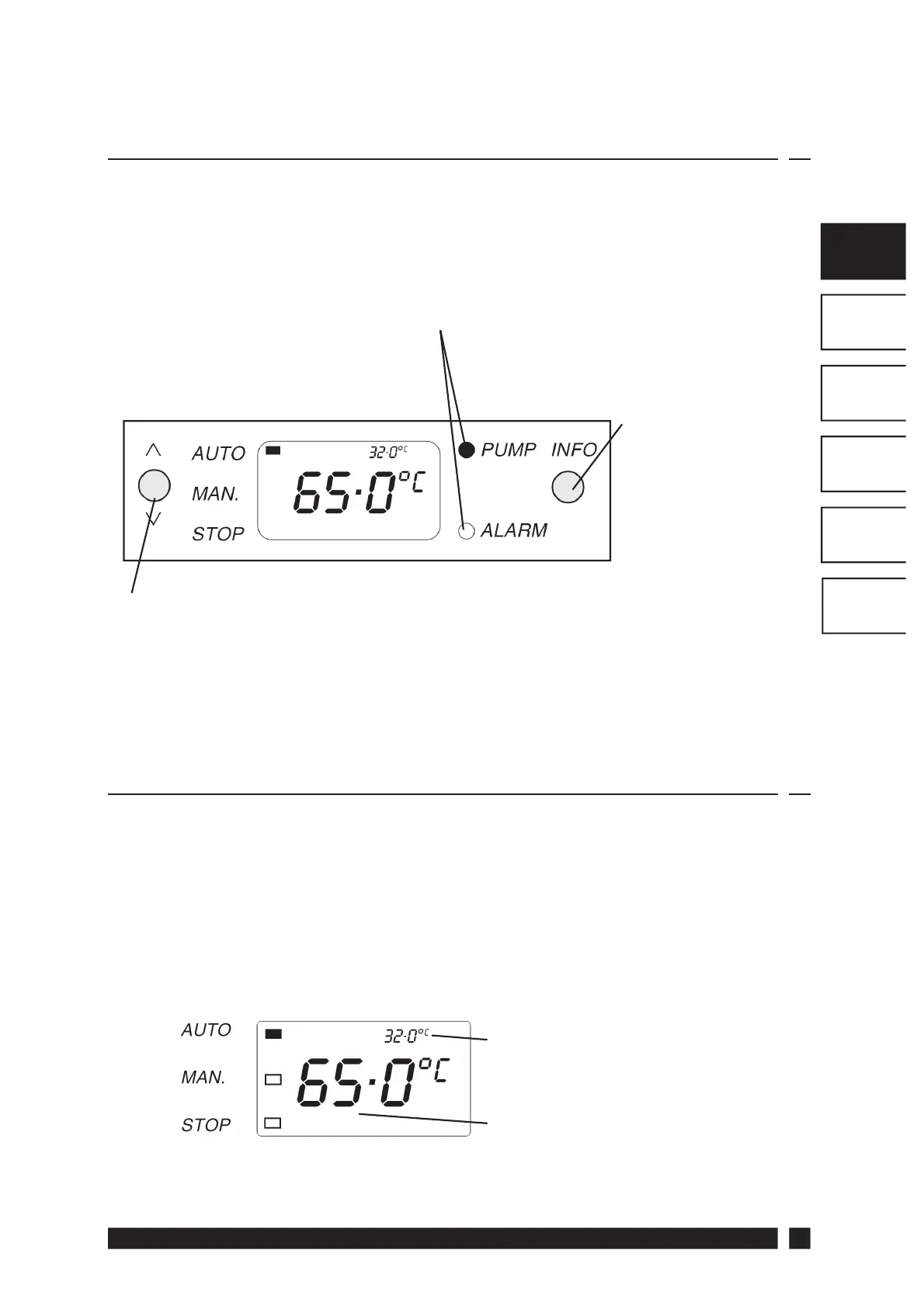

LEDs
Green LED indicates the pump is running
Red LED indicates fault
INFO
This button is used
to switch between
the two modes:
Temperature or
solar heating
output
PUMP
This button is used to switch between pump operation patterns:
AUTO Automatic operation of circulation pump Normal operation
MAN Circulations pump runs continuously Used e.g. for service
STOP The pump does not run Used e.g. for service
1.2 Temperature display
The display shows either temperature or solar heat output. Select
by pressing the INFO button. If temperature is displayed, the
temperature is given at both the solar collector and the bottom of the
hot-water tank. The solar collector installation is in operation when
the temperature of the solar collector is higher than the temperature
of the hot-water tank.
Temperature in hot-water tank
Temperature in solar collector
