4. Operation of calculator
(continuous)
LOOP 1 – integral parameters

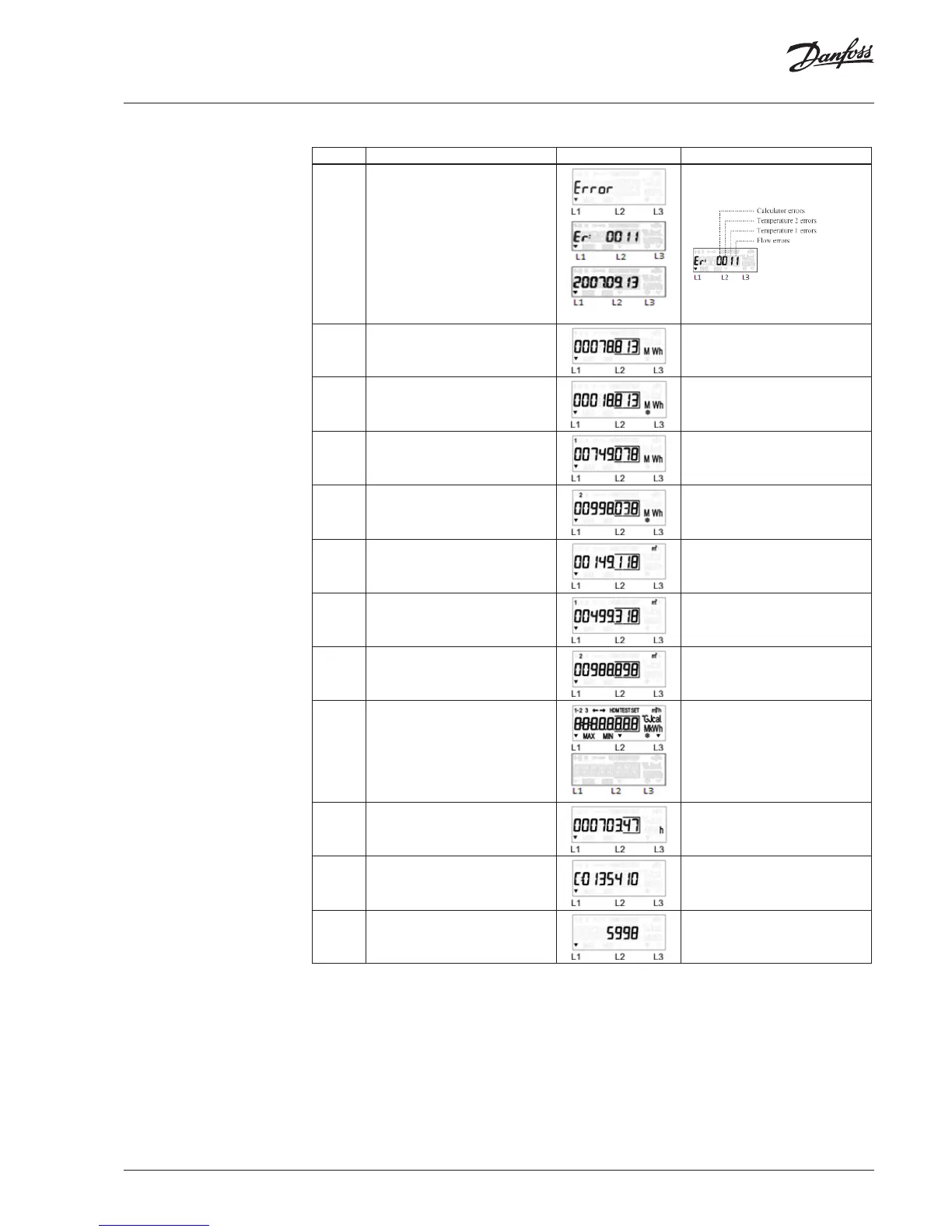

ID Parameter Value Description
1.1
Error code with data stamp of
starting of error
Are shown only at an error in meter
work
All three displays, will be displayed
in turns in one second interval
Description of Error codes is
presented in p. 5.3.2
1.2 Energy for heating
1.3 Energy for cooling
Are shows only in the heating and
cooling energy meters
1.4*
Integrated energy of tariff 1
Is shown only if tariff function is
active
“Snowflake” indicates that the tariff
is linked to the meter of cooling
energy
1.5*
Integrated energy of tariff 2
Is shown only if tariff function is
active
“Snowflake” indicates that the tariff
is linked to the meter of cooling
energy
1.6
Integrated quantity of
heatconveying liquid
1.7
Integrated reading of pulse input 1
Is shown only if pulse input is active
The additional flow sensor can be
connected to a pulse input 1
1.8
Integrated reading of pulse input 2
Is shown only if pulse input is active
The additional flow sensor can be
connected to a pulse input 2
1.9
Segment test Changes each 1 second
1.10
Working hours without an energy
calculation error
1.11 Customer number
Corresponds to a wire transmission
via M-Bus protocol
1.12 Control number
* values of the parameters can
be modified by installing a meter
with configuration software
SonoMeter30 UserConfig.
In the same way it is possible to
switch off indication of irrelevant
parameters.
