Installation & User Guide SonoSelect and SonoSafe

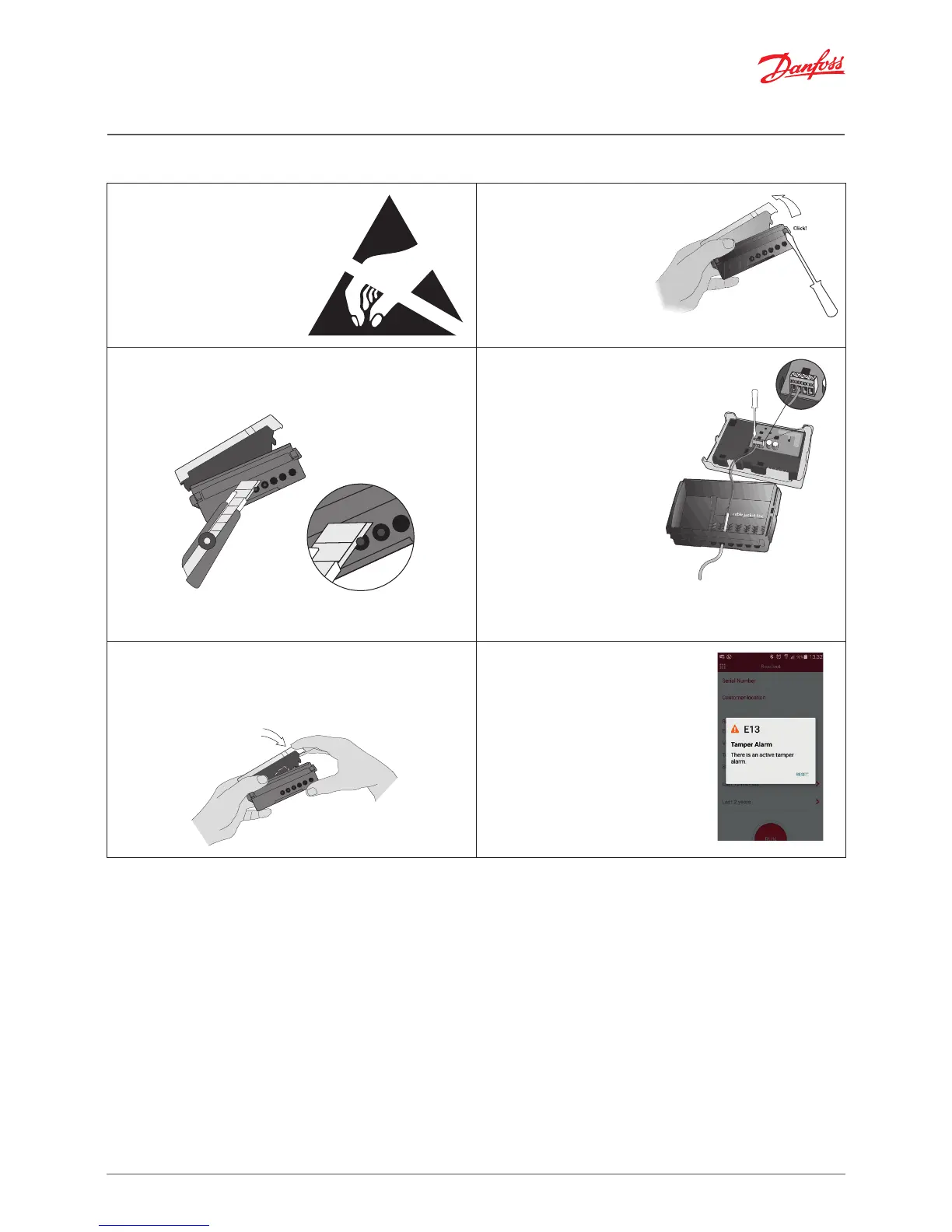

2.7 Installation of module/cable
1.
Before handling module
PCB ensure relevant ESD
regulations are observed
(IEC 61340-5-1).
2.
Break wired seal for
enclosure.
3.
Cut rubber parallel to enclosure.
4.
Insert module follow-
ing guide on PCBA
cover.
Insert cable through
hole, connect cable
and fix to screw termi-
nals matching color
and terminal numbers.
Fix cable(s) to cable
relief. Outer jacket
no longer than 9 mm
from cable relief (line).
Press down.
5.
Close enclosure making sure that no cables inter-
fere with rubber sealing and other internal parts.
Click!
6.
Reset tamper alarm via Sono-
App for SonoSelect 10.
For module configuration, see
SonoApp user guide.
