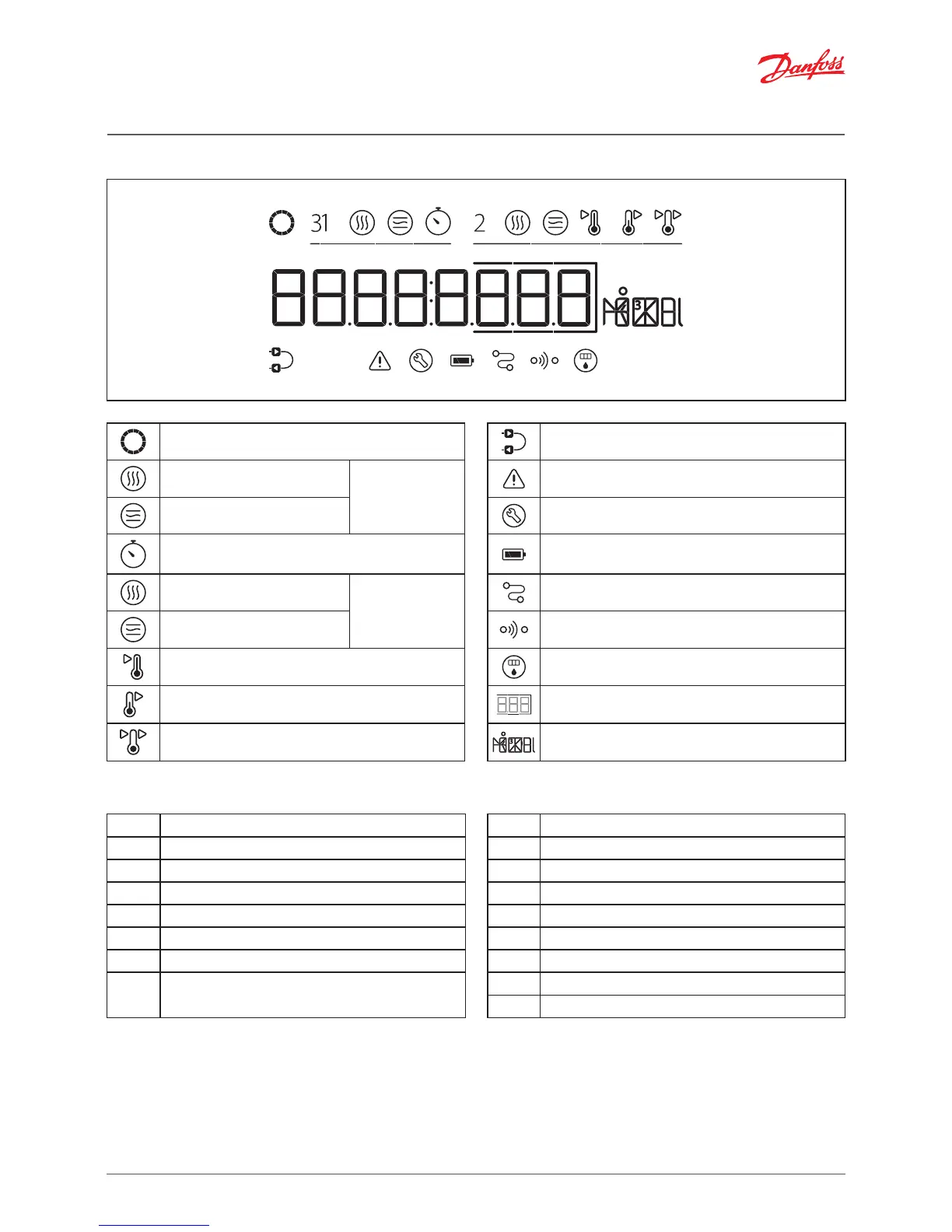

4.2 Display explanation
Working symbol Supply/return mounted installation
Accumulated energy
Loop 1
Alarm
Accumulated flow Service/maintenance
Total hours Battery full or low
Instant power
Loop 2
Wired communication
Instant flow Wireless communication
Supply temperature Pulse
Return temperature Decimal emphasizer
Temperature difference Units field
4.3 Alarms
E01 System error E09 Low transducer signal
E02 PCB error E10 Transducer error
E03 Battery empty (less than 1 month) E11 Outside measured range
E04 Battery low voltage E12 Negative flow
E05 Battery low (less than 12 months) E13 Tamper alarm
E06 Supply Temperature Error E14 High flow > qss
E07 Return Temperature Error E15 Battery consumption too high
E08
Absolute/Difference temperature outside
accumulated range
E16 Display overflow (energy/volume)
E32 Communication module error
