VUIGB802 © Danfoss | Energy Meters | 2018.01 | 5
Installation & User Guide SonoSelect and SonoSafe

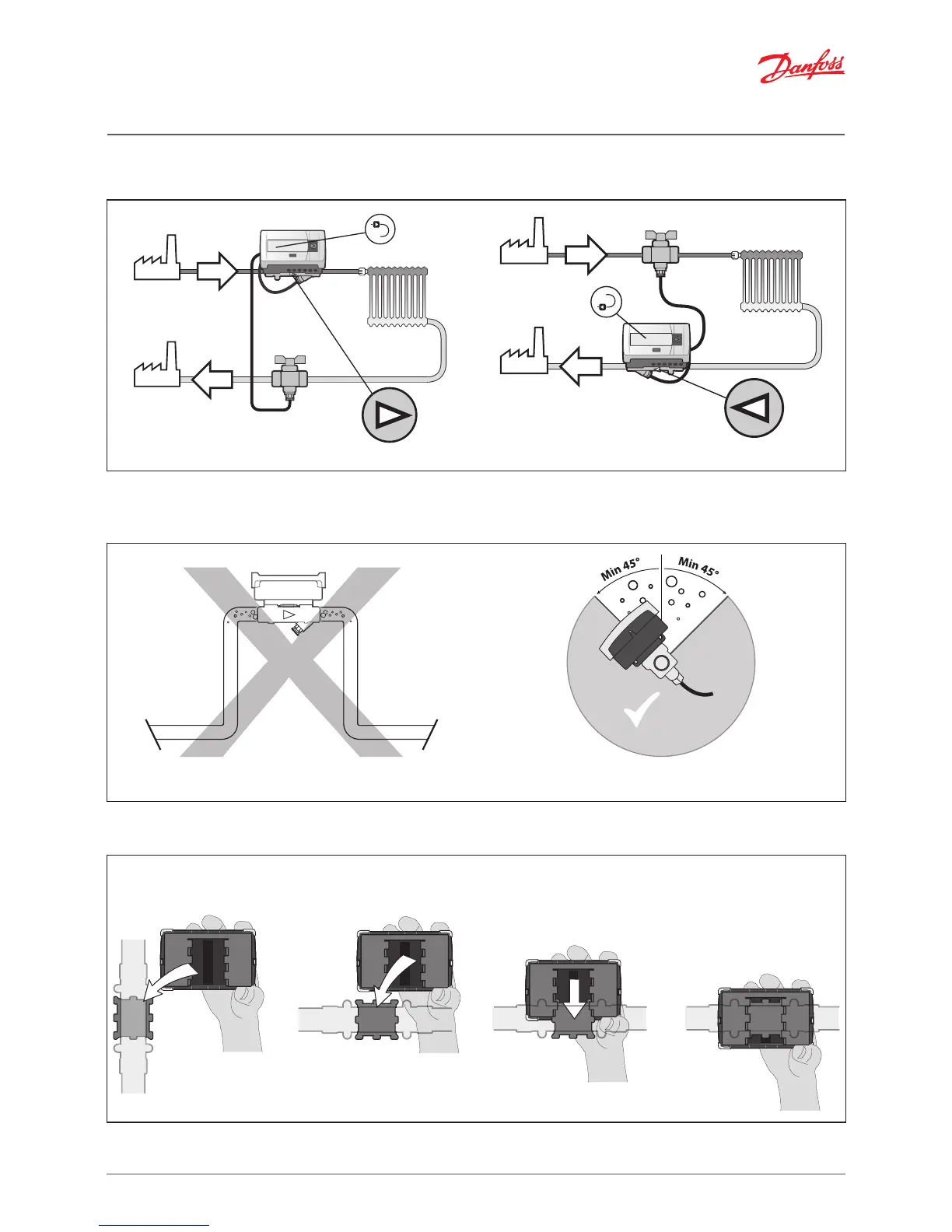

2.2 Identification of installation: Supply/Return pipe installation
Supply installation Return installation
Note: Heat meters have red temp sensor in supply pipe and all cooling meters have blue temp sensor in supply pipe
2.3 Flow sensor installation
Pipe position: No limitations but avoid positions where air
can be collected.
Rotation in pipe axis: Flow sensor should be angled in 45
to 315° to avoid air collection in flow sensor.
2.4 Mounting orientation, calculator
4 x 90°
Click!
1a.
2.
3.
1b.
