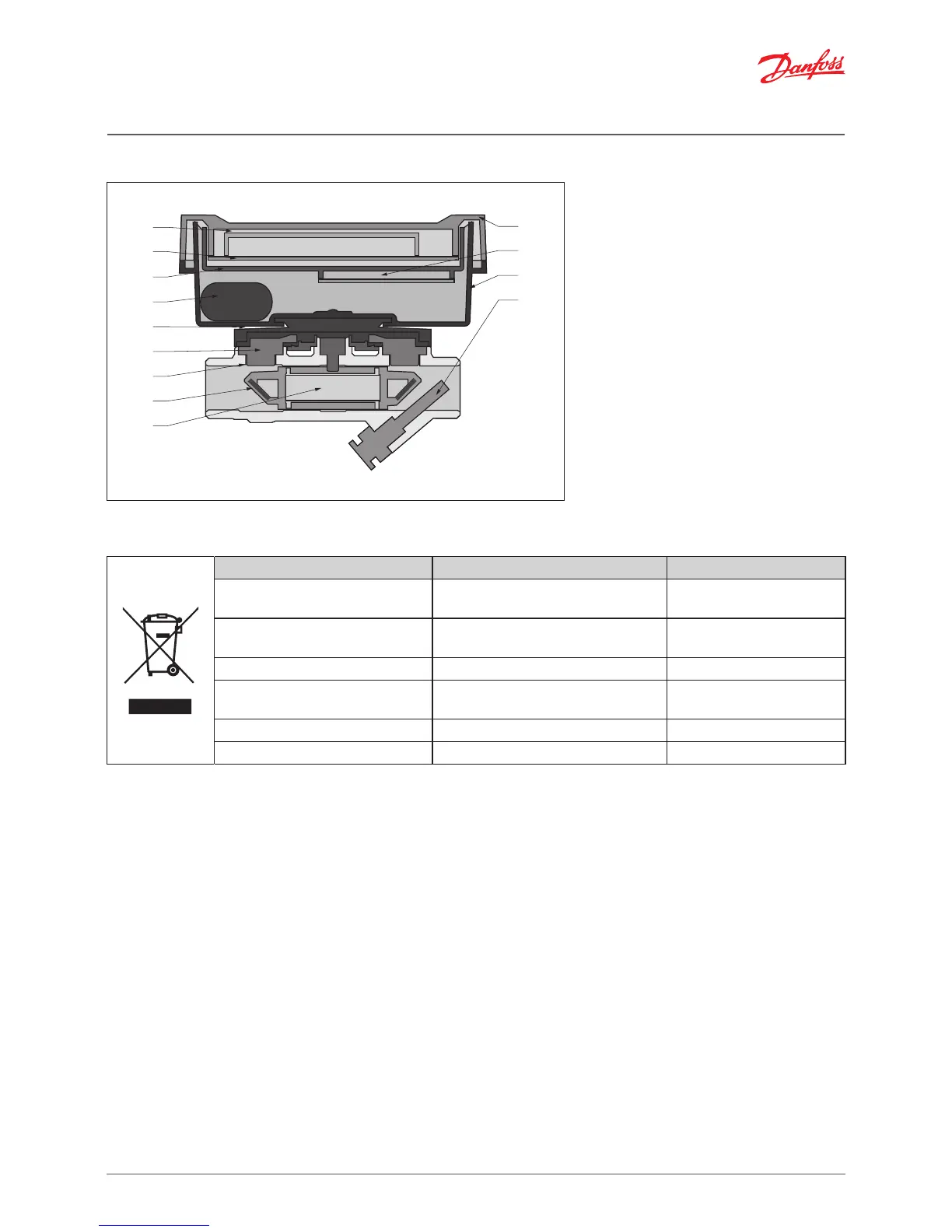

5. Device overview
1
2
3
4
5
6
7
8
9
10
11
12
13
1. Display
2. PCBA
3. Cover part (PC)
4. Battery (Lithium)
5. Enclosure connection (PC)
6. Transducer (PZT/stainless steel/
PEI)
7. Spool piece (Brass)
8. Liner fixture (PPS/PEI/stainless
steel)
9. Liner (PPS)
10. Top part (PC, TPE)
11. Module (PCB)
12. Bottom part (PC)
13. Temperature sensor
6. Disposal
Item Material Disposal
Battery
AA-cell Lithium/thionyl chloride
620 mg Lithium
Approved deposit for
lithium batteries
PCBA with display and
communication module
Coppered epoxy laminate
components soldered on, PC, TPE
Electronic waste
Cables Copper with PUR or PVC jackets Cable recovery
Flow sensor
(including transducer and liner)
Brass, stainless steel, PPS Metal recovery
Transducer PZT, stainless steel, PEI Approved deposit for PZT
Other plastic parts PC, PPS, PEI, TPE Plastic recovery
