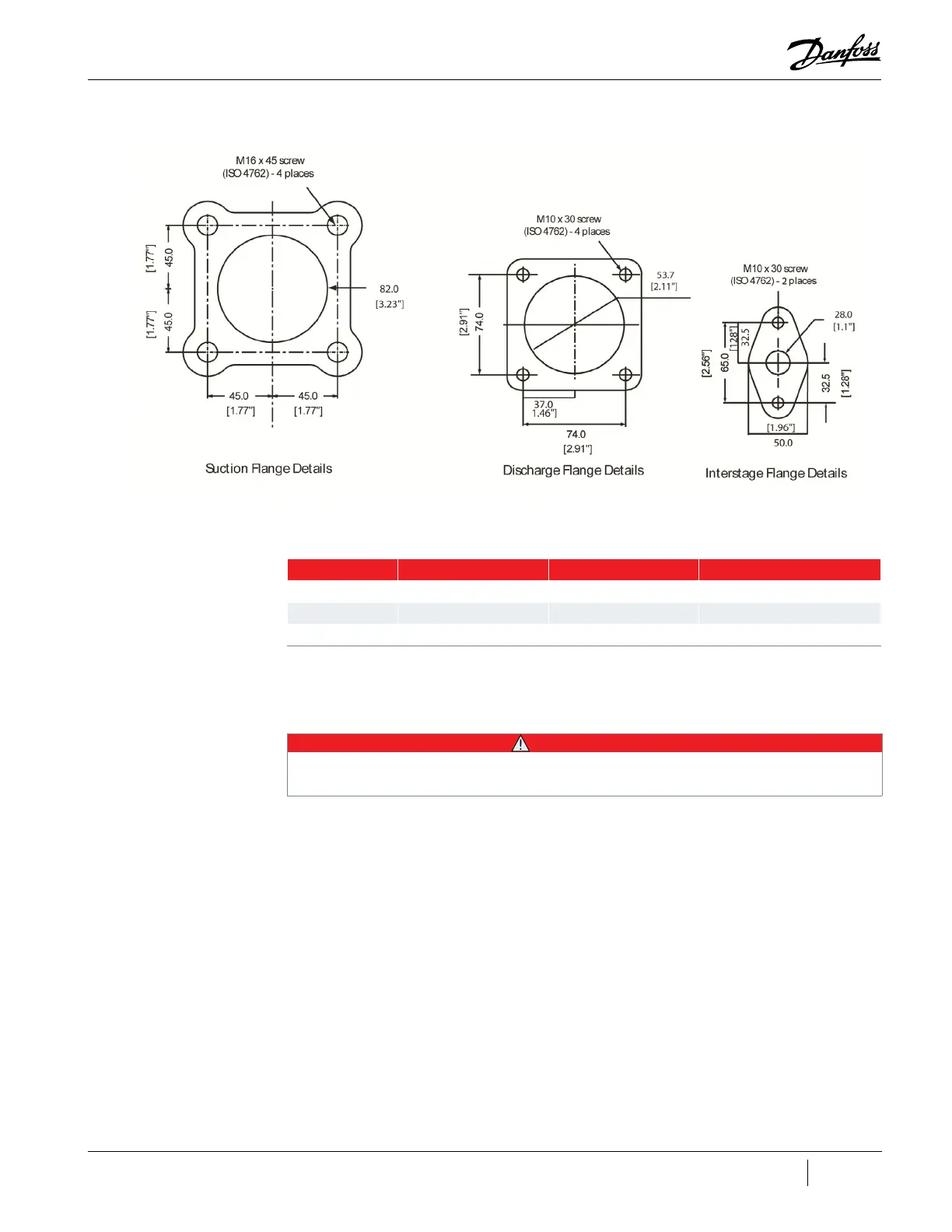

Figure 16-22 TTS700, TGS490, and TGS520 Flange Footprint Details

Table 16-3 Screw Hole Specifications

Port Fastner Thread Spec Thread Depth (mm) Recommended Torque (Nm)

Suction M16 34.5 75

Discharge M10 20 32

Economizer M10 20 32

• • • WARNING • • •

Refer to the manufacturer fastener speciﬁcations and torque as required, but do not exceed the torque values listed in

"Table 16-3 Screw Hole Speciﬁcations". If this value is exceeded, damage to compressor housing threads may occur.
