Danfoss TP7000-RF Installation Instructions & User Guide

5

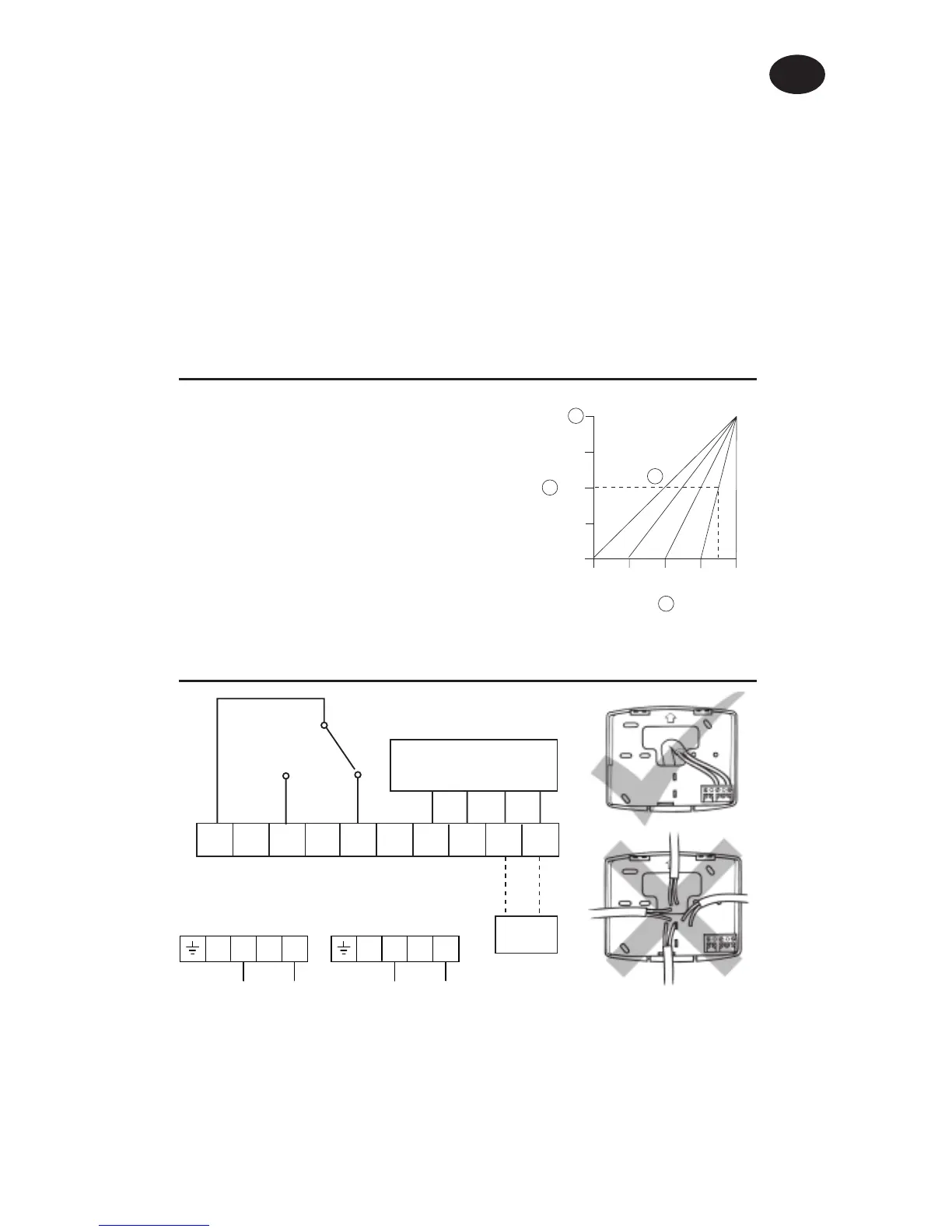

TP7000 Wiring (not RF models)
7-day - each day can be programmed with di erent times and
temperatures.
5/2 day - one set of times & temperatures for weekdays, and another
set for weekends.
Optimum start control - function which switches the heating on
earlier than the Event 1 programmed time to ensure the required
temperature is achieved by the set time.
Chrono-proportional control - energy saving feature which  res the
boiler at regular intervals to maintain a set temperature, achieving a
constant ambient environment for the user.
Setting Optimum Start Control
-4˚C
-3˚C
-2˚C
-1˚C
A
B
C
120
min.
90
min.
60
min.
30
min.
Event
time
(
D
 Set Sw2 to OSC ON
(see DIL settings page 4)
 Select OPTIMISER CURVE in
programming mode
A Event 1 Set Point
B Deviation from Set Point
C Switch On Time prior to Event
D Optimiser Curve Setting
1
234567
ELECTRONICS
REMOTE
SENSOR
'A' models
only
COM
ON
OFF
Installation Instructions
GB
B
C
M 24V models onl
y
24V
L
N
M 230V models onl
230V
Note: 1.0mm
2
solid copper cable should be used to connect the remote
sensor to the TP7000A. Please ensure that:
a) the cable length does not exceed 50 metres,
b) to avoid electrical interference the cable should not be run parallel
in close proximity to other cables carrying mains electricity, and where
necessary the cable should cross over mains cabling at right angles.
