Danfoss TP7000 Installation Instructions

6

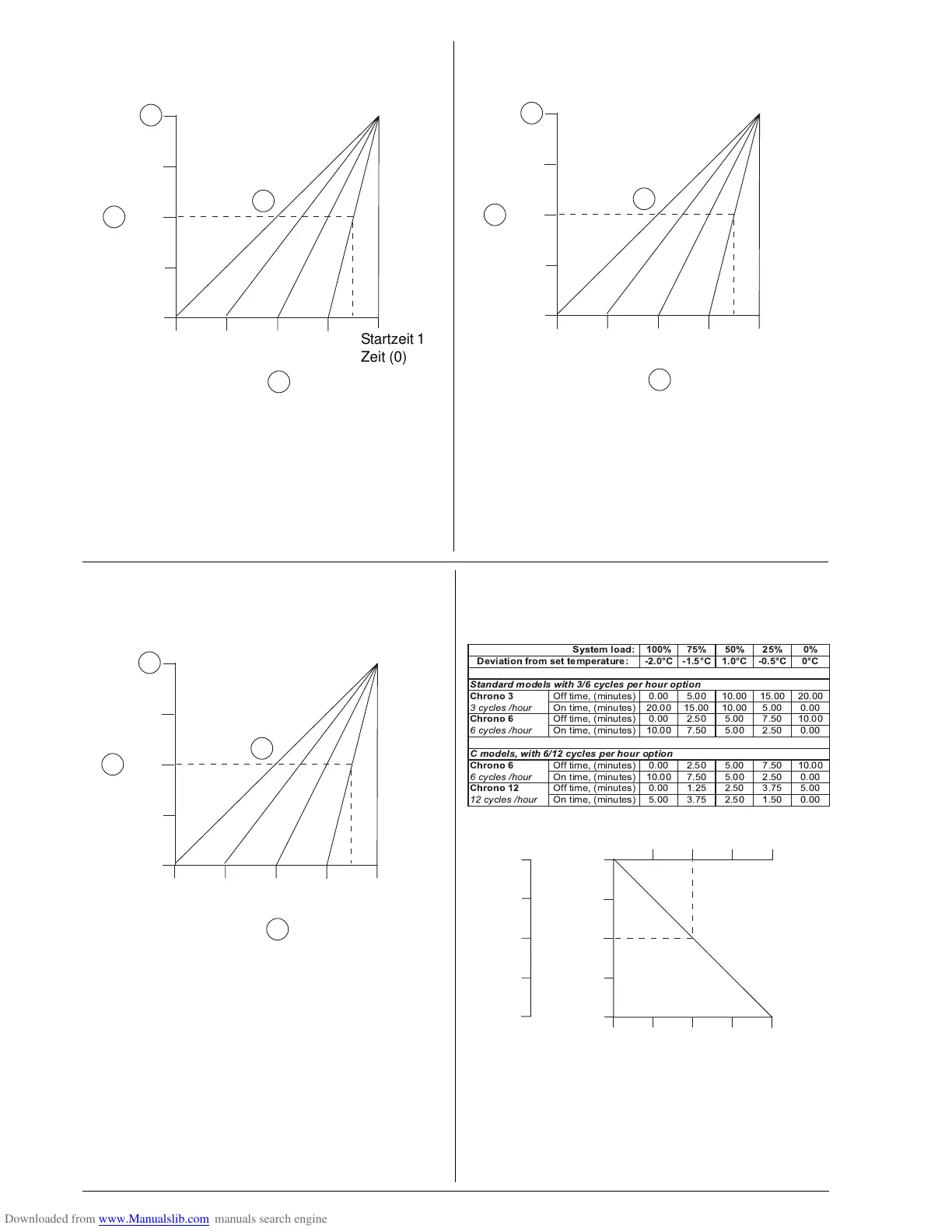

(GB) Function Description, Sw’s 3 & 4 - Chrono-proportional
Control
(D) Optimalstartsteuerung (OSC)
-4˚C
-3˚C
-2˚C
-1˚C
A
B
C
120
min.
90
min.
60
min.
30
min.
Event 1
time (0)
D
A - Gewünschte Temperatur beim ersten Schaltpunkt
B - Abweichung von eingestellter Temperatur
C - Vorgezogene Startzeit der Heizungsanlage vor dem
ersten Schaltpunkt
D - Optimalstart-Kurve, um die gewünschte Temperatur
rechtzeitig zu erreichen
● Stellen Sie SW2 auf OSC ON
● Wählen Sie eine passende Kurve ( z.B. 30 Minuten) im
Programm-Modus
(NL) Funktie omschrijving, S2 - Optimum Start Control
-4˚C
-3˚C
-2˚C
-1˚C
A
B
C
120
min.
90
min.
60
min.
30
min.
Event 1
time (0)
D
A - Ingestelde temperatuur van schakeling 1
B - Afwijking van ingestelde temperatuur
C - Vervroegde inschakeltijd t.o.v. schakeling 1
D - Ingestelde optimaliserings curve
● Zet S2 op OSC ON (Optimum Start Control aan)
● Stel de gewenste optimaliserings-curve in tijdens het
programmeren (zie gebruikershandleiding)
(PL)
-4˚C
-3˚C
-2˚C
-1˚C
A
B
C
120
min.
90
min.
60
min.
30
min.
Event 1
time (0)
D
A - Event 1 Set Point
B - Deviation from Set Point
C - Switch On Time prior to Event
D - Optimiser Curve Setting
● Set Sw2 to OSC ON
● Select OPTIMISER CURVE in programming mode
100%
75%
50%
25%
0%
25%
50%
75%
100%
0%
Load curve
100%
75% 50%
25% 0%
ON time
OFF time
System Load
-2.0˚C
-1.5˚C
-1.0˚C
-0.5˚C
Set
Temp
Xp
100% 75% 50% 25% 0%
-2.0°C -1.5°C 1.0°C -0.5°C 0°C
Chrono 3 Off time, (minutes) 0.00 5.00 10.00 15.00 20.00
3 cycles /hour On time, (minutes) 20.00 15.00 10.00 5.00 0.00
Chrono 6 Off time, (minutes) 0.00 2.50 5.00 7.50 10.00
6 cycles /hour On time, (minutes) 10.00 7.50 5.00 2.50 0.00
Chrono 6 Off time, (minutes) 0.00 2.50 5.00 7.50 10.00
6 cycles /hour On time, (minutes) 10.00 7.50 5.00 2.50 0.00
Chrono 12 Off time, (minutes) 0.00 1.25 2.50 3.75 5.00
12 cycles /hour On time, (minutes) 5.00 3.75 2.50 1.50 0.00
System load:
C models, with 6/12 cycles per hour option
Standard models with 3/6 cycles per hour option
Deviation from set temperature:
Startzeit 1
Zeit (0)
