TP7001
6
GBGB

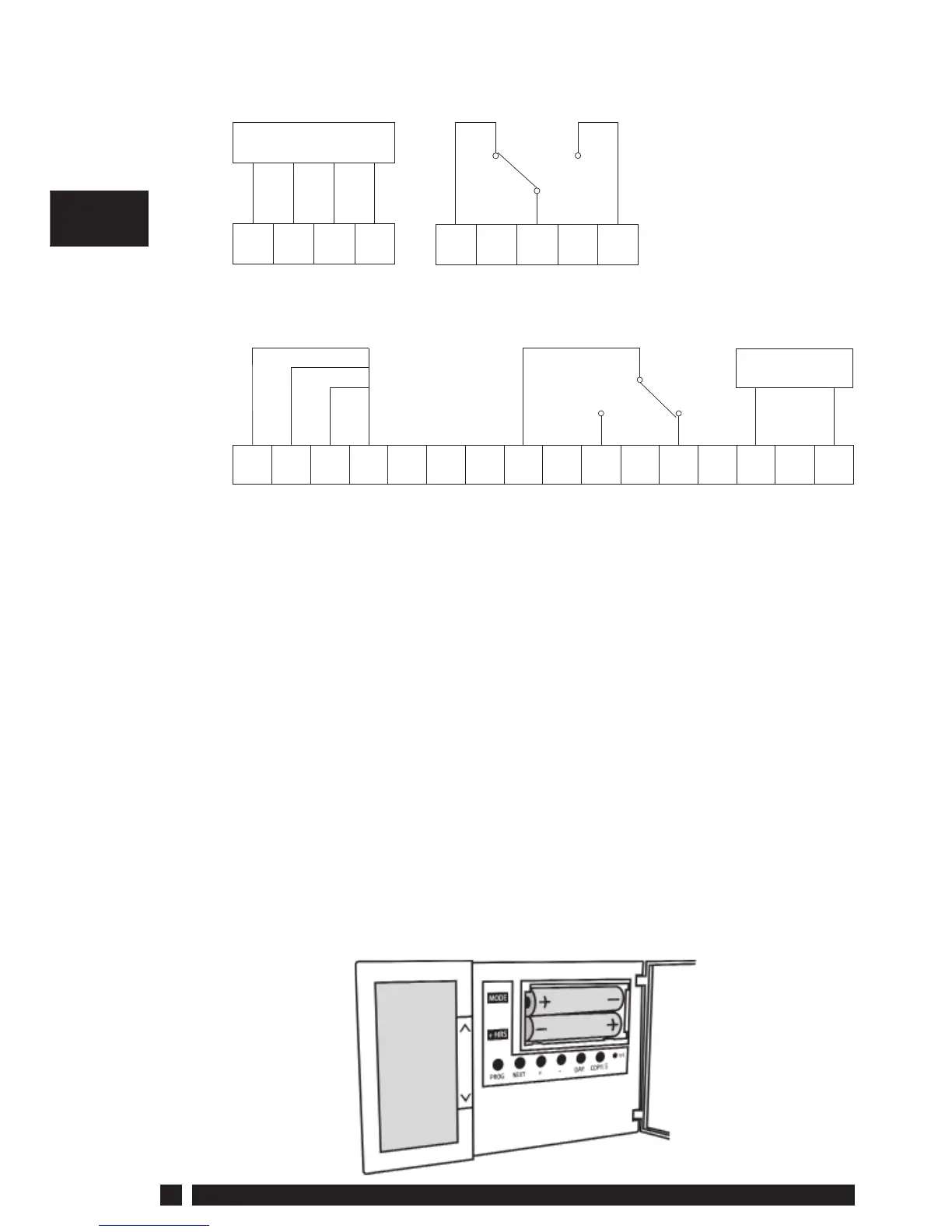

3.4 For wiring connections please refer to the diagrams below:
Battery Version
Mains Powered Version
The TP7001 and TP7001M can incorporate three inputs/sensor
types by using input b, C and d.
The sensor types are as follows:
1) Remote room temperature sensor (sold as an accessory).
2) Limit sensor, for example, oor temperature sensor (sold as an
accessory). Note: F10 in display - The under oor temperature has
exceeded the threshold temperature.
3) Outdoor sensor (sold as an accessory).
4) Window contacts, card reader contacts or teleswitch contacts.
Note: See Installer Advanced Programming Options for set-up
instructions.
3.5 For the TP7001 battery version, insert the batteries – making sure
that they are correctly oriented.
1
2
3
4
b
C
d
S COM
Room/outdoor/limit
sensor or contact
5
6
7
HTG
OFF
HTG
COM
HTG
ON
1
2
3
4
b
C
d
S COM
5
67
89
10
Power Supply
HTG
COM
HTG
ON
HTG
OFF
LN
Z
Y
X
X, Y and Z can be connected to
Room/Outdoor/Limit Sensor or contact
To Next Page
