VLT
®
5000/6000/8000 Series
Electrical installation

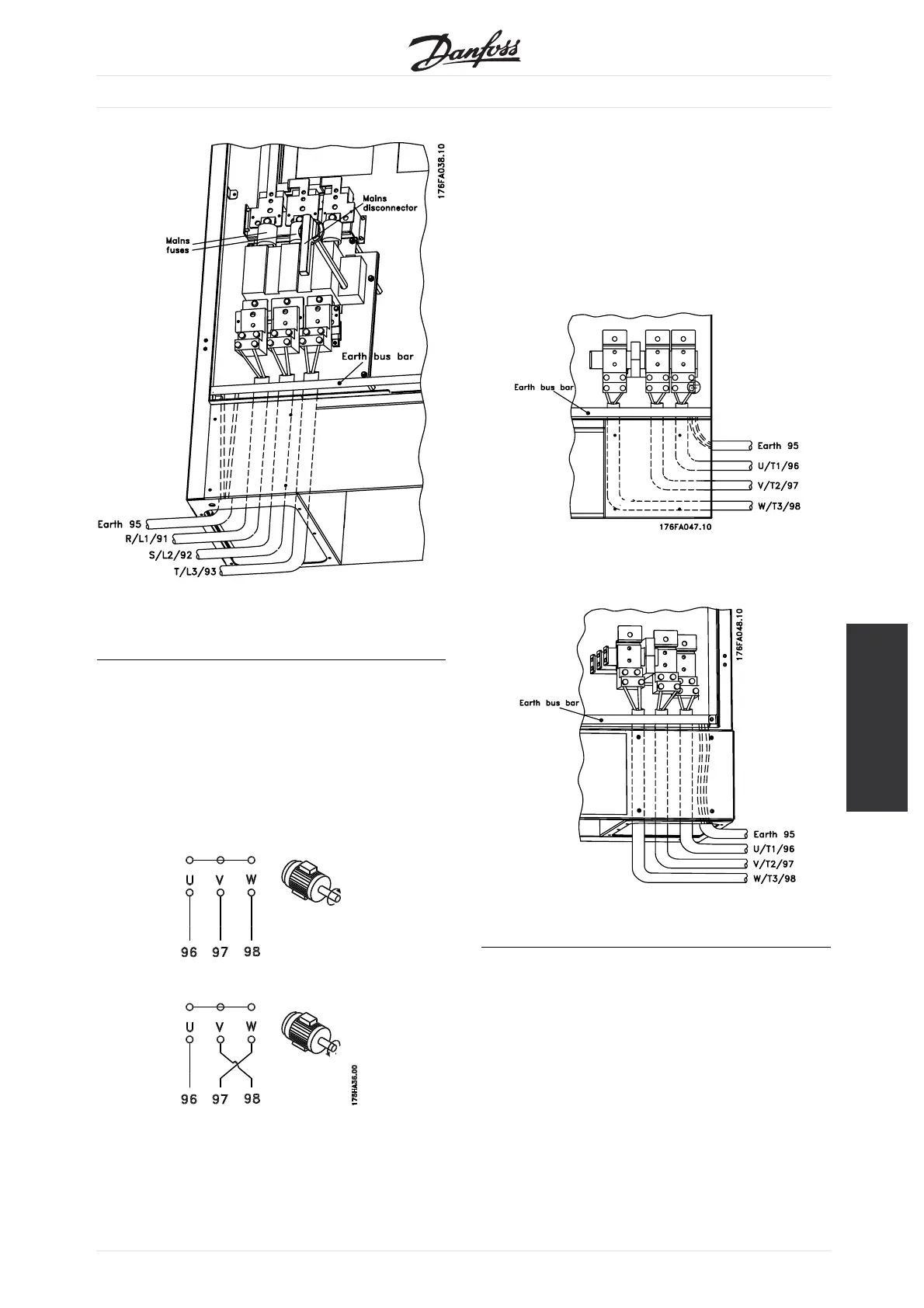

Mains connection from the bottom with
built-in disconnector and fuses
■
Motor connection
Th
e motor must be connected to terminals U/T1/96,
V/T2/97, W/T3/98. Earth to terminal 99.
All types of three-phase asynchronous standard motors
ca
n be used with a VLT frequency converter unit.
The factory setting is for clockwise rotation with the VLT
frequency transformer output connected as follows.
Terminal U/T1/96 connected to U-phase
Terminal V/T2/97 connected to V-phase
Terminal W/T3/98 connected to W-phase
The direction of rotation can be changed by switching
two phases in the motor cable.
See Technical data for correct sizing of
cable cross-sections.
See Electrical installation prodedures for how install
the motor connections to the VLT frequency converter.
Motor connection from the side
Motor connection from the bottom
MG.56.A2.02 - VLT is a registered Danfoss trademark
21
