VLT
®
8000 AQUA
Installation

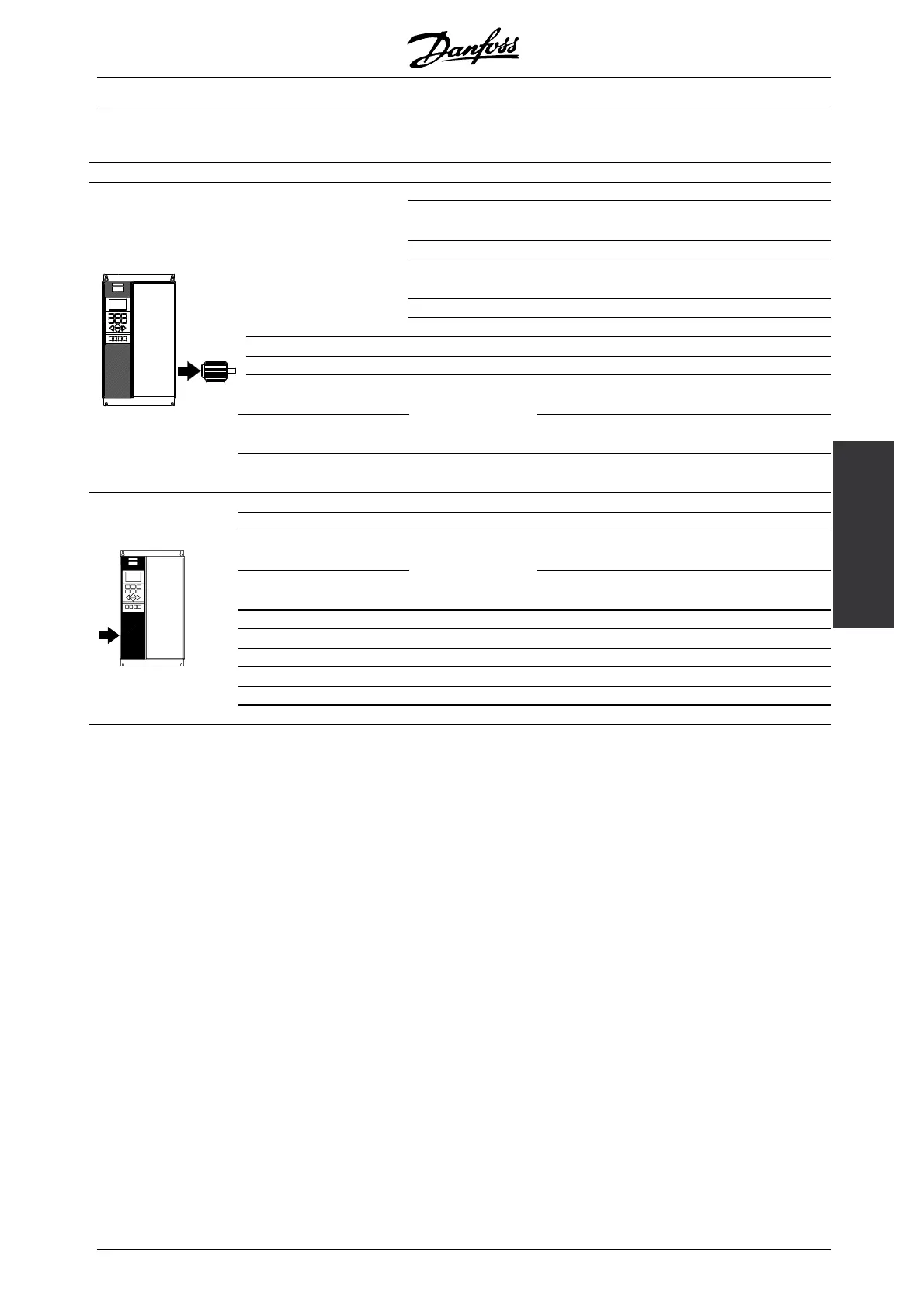

■ Technical data, mains supply 3 x 380 - 480 V
According to international requirements VLT type 8016 8022 8027 8032 8042
Output current I
VLT,N
[A] (380-440 V) 24.0 32.0 37.5 44.0 61.0
I
VLT, MAX
(60 s) [A]
(380-440 V)
26.4 35.2 41.3 48.4 67.1
I
VLT,N
[A] (441-480 V) 21.0 27.0 34.0 40.0 52.0
I
VLT, MAX
(60 s) [A]
(441-480 V)
23.1 29.7 37.4 44.0 57.2
Output power S
VLT,N
[kVA] (400 V) 17.3 23.0 27.0 31.6 43.8
S
VLT,N
[kVA] (460 V) 16.7 21.5 27.1 31.9 41.4
Typical shaft o utput P
VLT,N
[kW] 11 15 18.5 22 30
Typical shaft o utput P
VLT,N
[HP] 15 20 25 30 40
Max. cable cross-section to
motor and DC-bus, IP 20
16/6 16/6 16/6 35/2 35/2
Max. cable cross-section to
motor and DC-bus, IP 54
[mm
2
]/[AWG]
2) 4)
16/6 16/6 16/6 16/6 35/2
Min. cable cross-section to
motor and DC-bus
[mm
2
]/[AWG]
2) 4)
10/8 10/8 10/8 10/8 10/8
Max. input current I
L,N
[A] (380 V) 24.0 32.0 37.5 44.0 60.0
(RMS) I
L,N
[A] (480 V) 21.0 27.6 34.0 41.0 53.0
Max. cable cross-section
power, IP 20
16/6 16/6 16/6 35/2 35/2
Max. cable cross-section
power, IP 54
[mm
2
]/[AWG]
2) 4)
16/6 16/6 16/6 16/6 35/2
Max. pre-fuses [-]/UL
1)
[A] 63/40 63/40 63/50 63/60 80/80
Efficiency at rated frequency 0.96 0.96 0.96 0.96 0.96
Weight IP 20/NEMA 1 [kg/lbs] 21/46 21/46 22/49 27/60 28/62
Weight IP 54/NEMA 12 [kg/lbs] 41/90 41/90 42/93 42/93 54/119
Power loss at max. load. [W] 419 559 655 768 1065
Enclosure IP 20/NEMA 1/ IP 54/NEMA 12
1. For type of fuse, see section Fuses.
2. American Wire Gauge.
3. Measured using 30 m/100 ft screened motor cables at rated load and rated frequency.
4. Min. cable cross-section is the smallest cable cross-section allowed to be fitted on the terminals. Max. cable
cross section is the maximum possible cable cross section that can be fitted on the terminals.
Always comply with national and local regulations on min. cable cross-section.
MG.83.A2.02 - VLT is a registered Danfoss trademark
39
