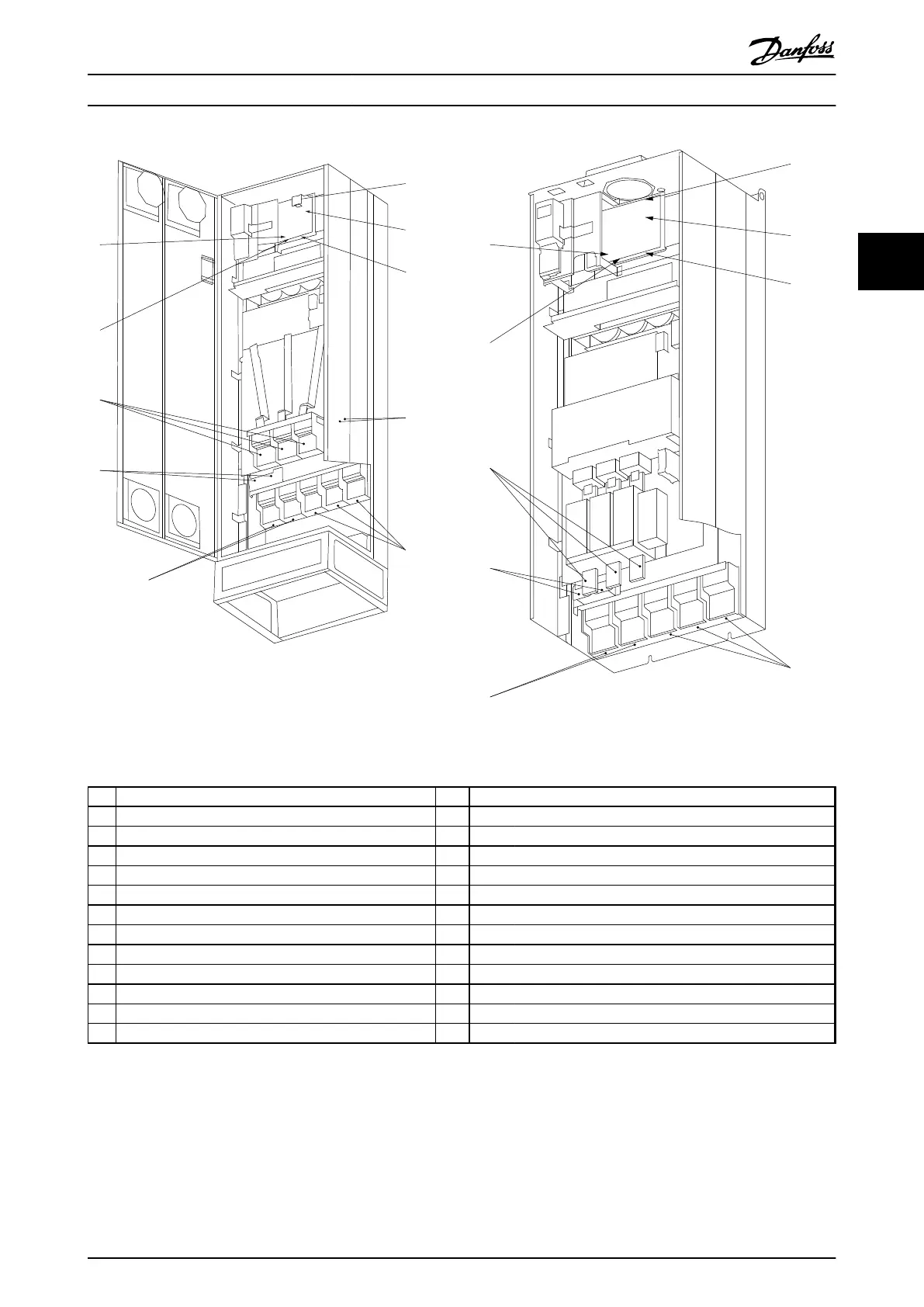

Illustration 3.61 Compact IP21 (NEMA 1) and IP54 (NEMA 12)
Enclosure Type E1
Illustration 3.62 Compact IP00 (Chassis) with Disconnect, Fuse
and RFI Filter, Enclosure Type E2
1)
AUX Relay 5) Load sharing
01 02 03 -DC +DC
04 05 06 88 89
2) Temp Switch 6) SMPS Fuse (see fuse tables for part number)
106 104 105 7) Fan Fuse (see fuse tables for part number)
3) Mains 8) AUX Fan
R S T 100 101 102 103
91 92 93 L1 L2 L1 L2
L1 L2 L3 9) Mains ground
4) Brake 10) Motor
-R +R U V W
81 82 96 97 98
T1 T2 T3
Table 3.19 Legend to Illustration 3.61 and Illustration 3.62
How to Install VLT AQUA Drive FC 202 Operation Instructions
MG20P402 - Rev. 2013-12-16 47
3 3
